LogTag TRIX-8/TRIX-16 Work Instruction Manual Revision 9.20 Page 15/53
Setup for TRIX-16 PCBA testing
• Turn on PC, plug fixture controller into serial ports COM1 (&COM2 if second controller also used)
• Test Fixture(s) powered from 9V DC power supply
• Start up “Test & Cal TRIX-16/TREX-16 PCBA” software by double clicking the “PCBA Test Trix-16 ”
icon :

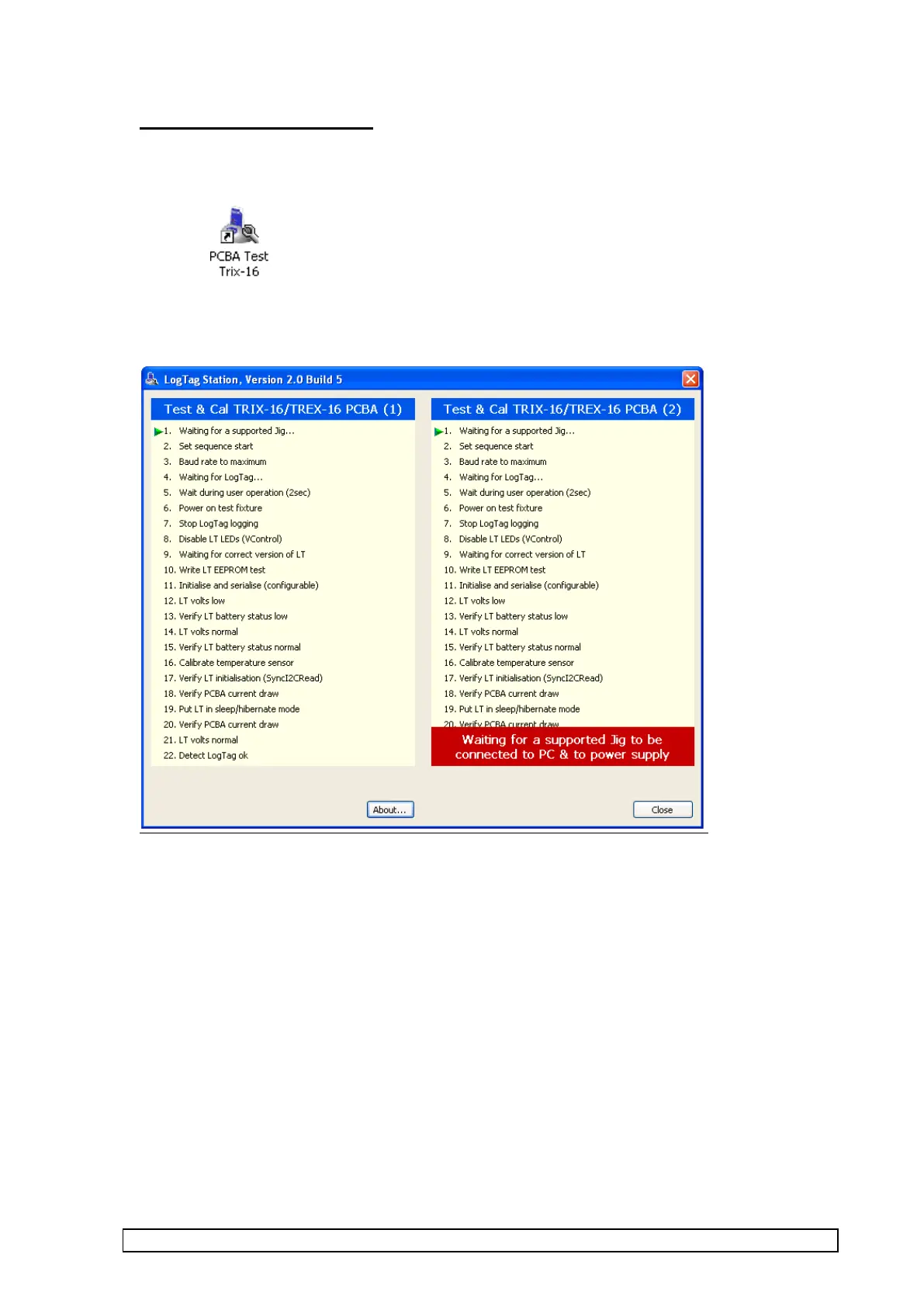

Software opens with the following screen:-
IMPORTANT NOTE
The correct test must be selected for the PCBA to be tested !
If TRIX-16 PCBAs are tested with the TRIX-8 test then they will be configured only as TRIX-8 and will not
be able to be used as TRIX-16 product !
