LogTag TRIX-8/TRIX-16 Work Instruction Manual Revision 9.20 Page 21/53
1.9 Conformal coat over Sensor electronics
Procedure:

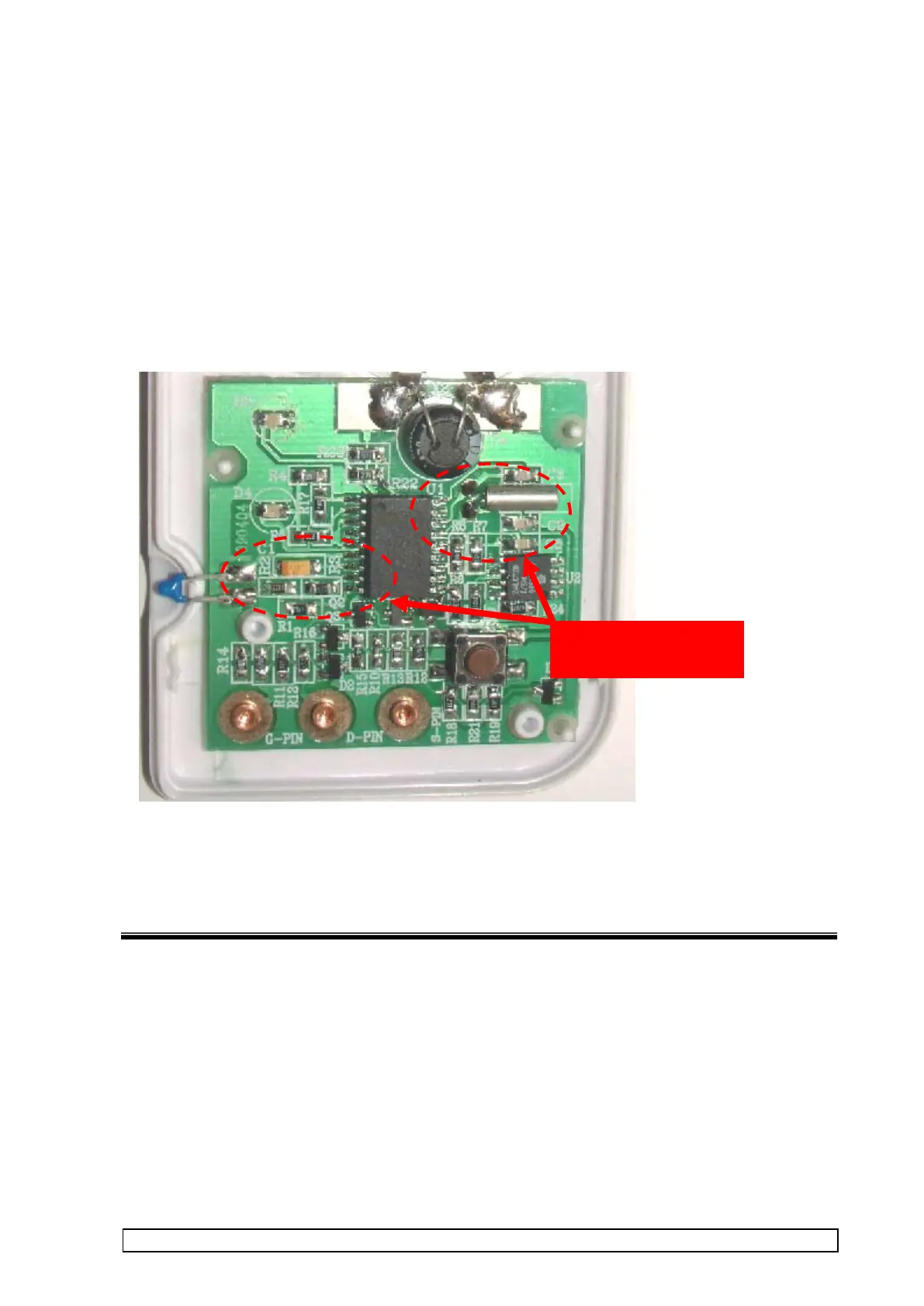

1. Brush on conformal coat to area shown below
Must cover:-
- PIC pins 6-9 and 18-15.
– components C1, R1,R2,R3,solder connections on sensor
– components C2,C3, and XTAL.
2. Allow to dry for 3 hours before proceeding to next step.
over these areas
