LogTag TRIX-8/TRIX-16 Work Instruction Manual Revision 9.20 Page 19/53
1.8 Solder on thermistor
Equipment Required:
• Fine tip temperature controlled soldering iron
Procedure

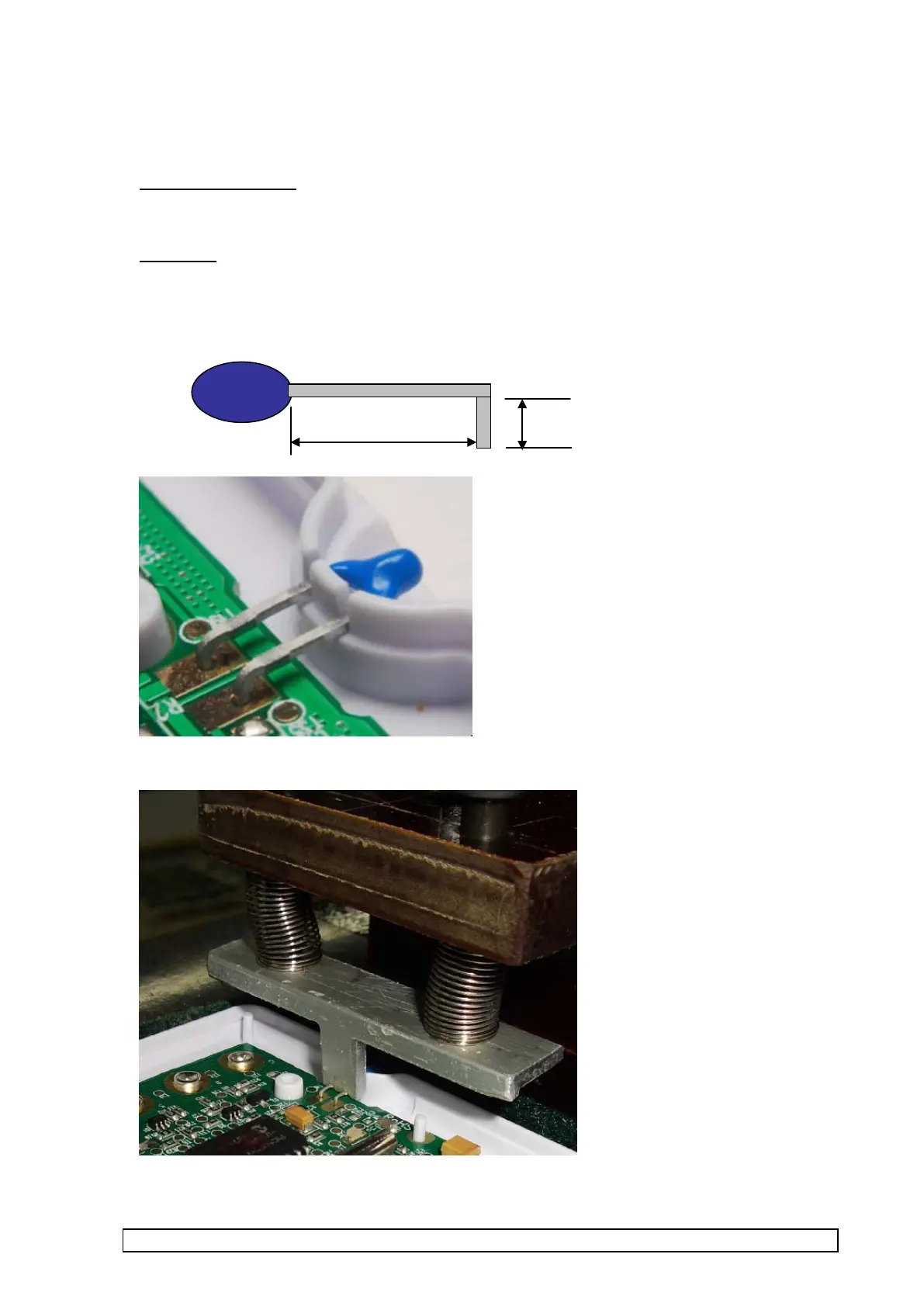

1. Place pre-bent & trimmed thermistor in sensor cup, inserting legs into holes in PCBA.
Thermistor should be trimmed & pre-bent as below:-
2. Place in thermistor soldering heat-sinking fixture
