LogTag TRIX-8 - TECHNICAL APPENDICES; PCBA Component Maps & Circuit Diagrams

LogTag TRIX-8/TRIX-16 Work Instruction Manual Revision 9.20 Page 42/53

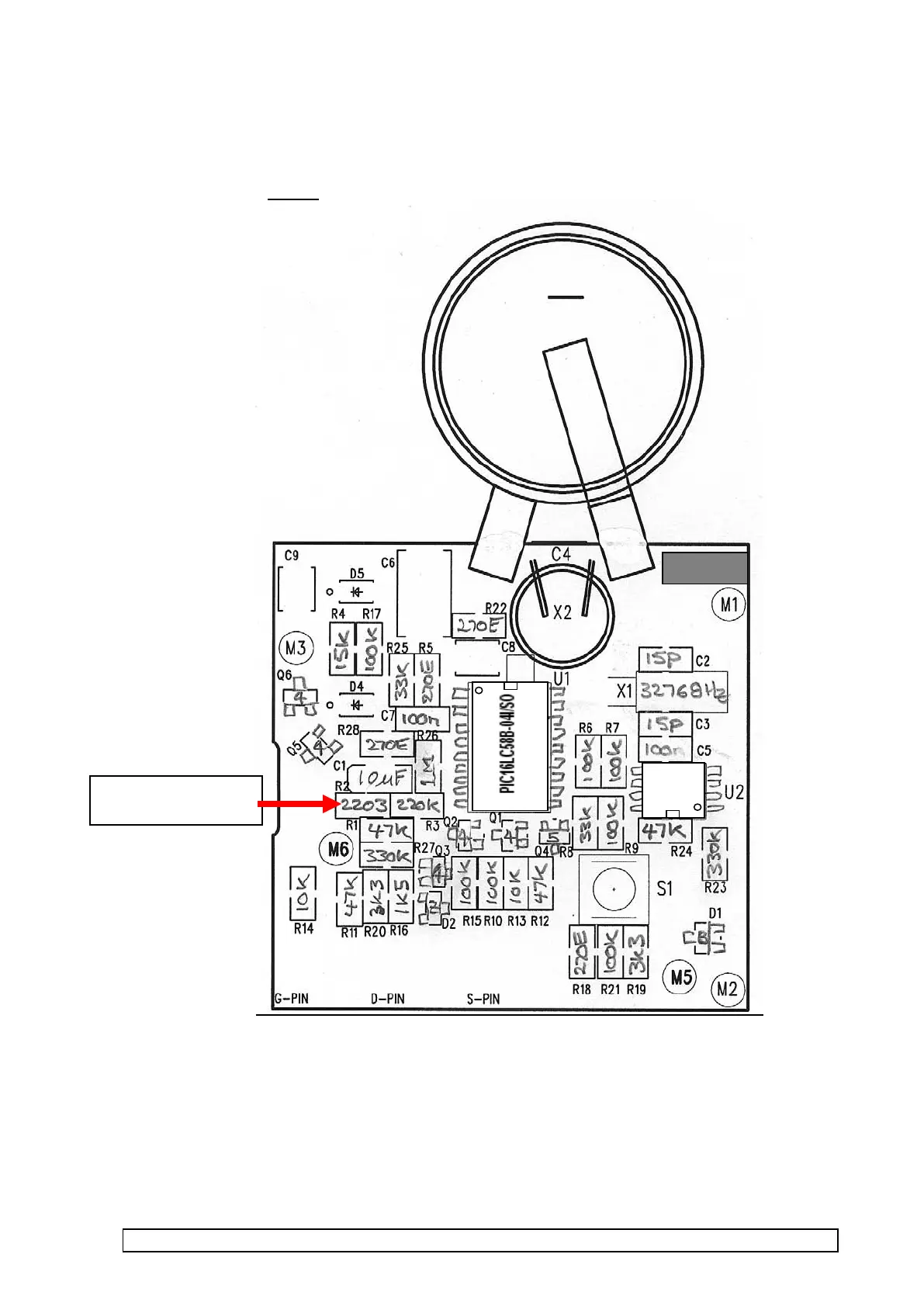

APPENDIX 1A : LogTag TRIX-8 PCBA Component Map
PCBID : 150306 ONLY
Where :-
Z = BZX84-C9V1 Zener Diode
4 = BC847 Transistor
5 = BC857 Transistor
128 = 24LC128 I/SO EEPROM
B = BAS16 Diode
D5 = RED 0805 LED – Lucky Light Part# GB-SM0805UR0W-TR
D4 = GREEN 0805 LED – Lucky Light Part# GB-SM0805UYGW-TR
NC = No Component placed
Low Temperature
Co-efficient Resistor
150306
NC
NC
NC
128
24LC128
