LogTag TRIX-8/TRIX-16 Work Instruction Manual Revision 9.20 Page 32/53
2.9 Press lightpipes into LED holes

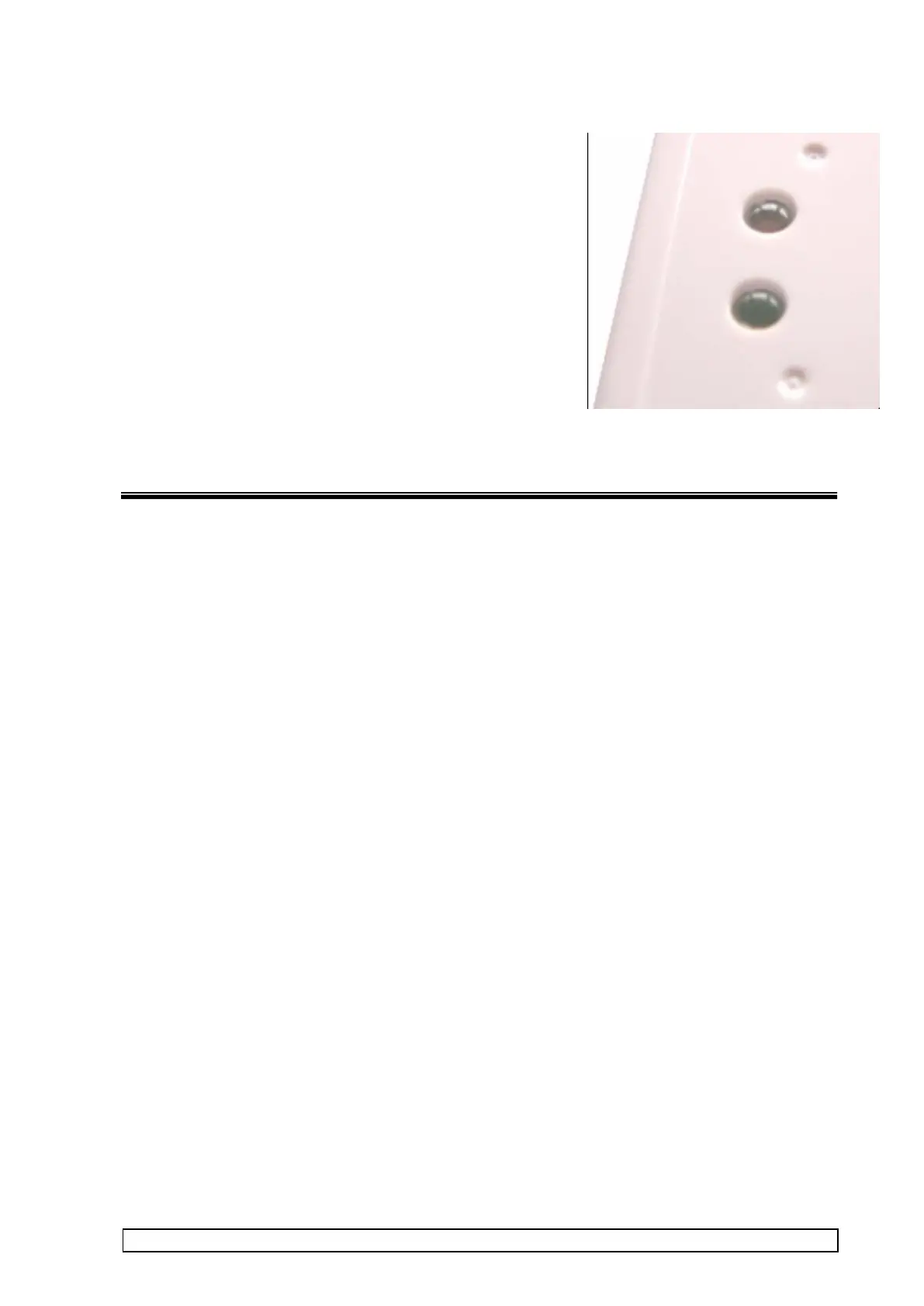

Press the two lightpipe LED lenses into the LED holes
NOTE:
Light-pipes have a domed outer face and a hole on the inner
face.
The light-pipe and hole are both tapered so should lock into
place on the taper and not be loose.
CHECK: That light pipes do not shake loose.
