LogTag TRIX-8/TRIX-16 Work Instruction Manual Revision 9.20 Page 31/53

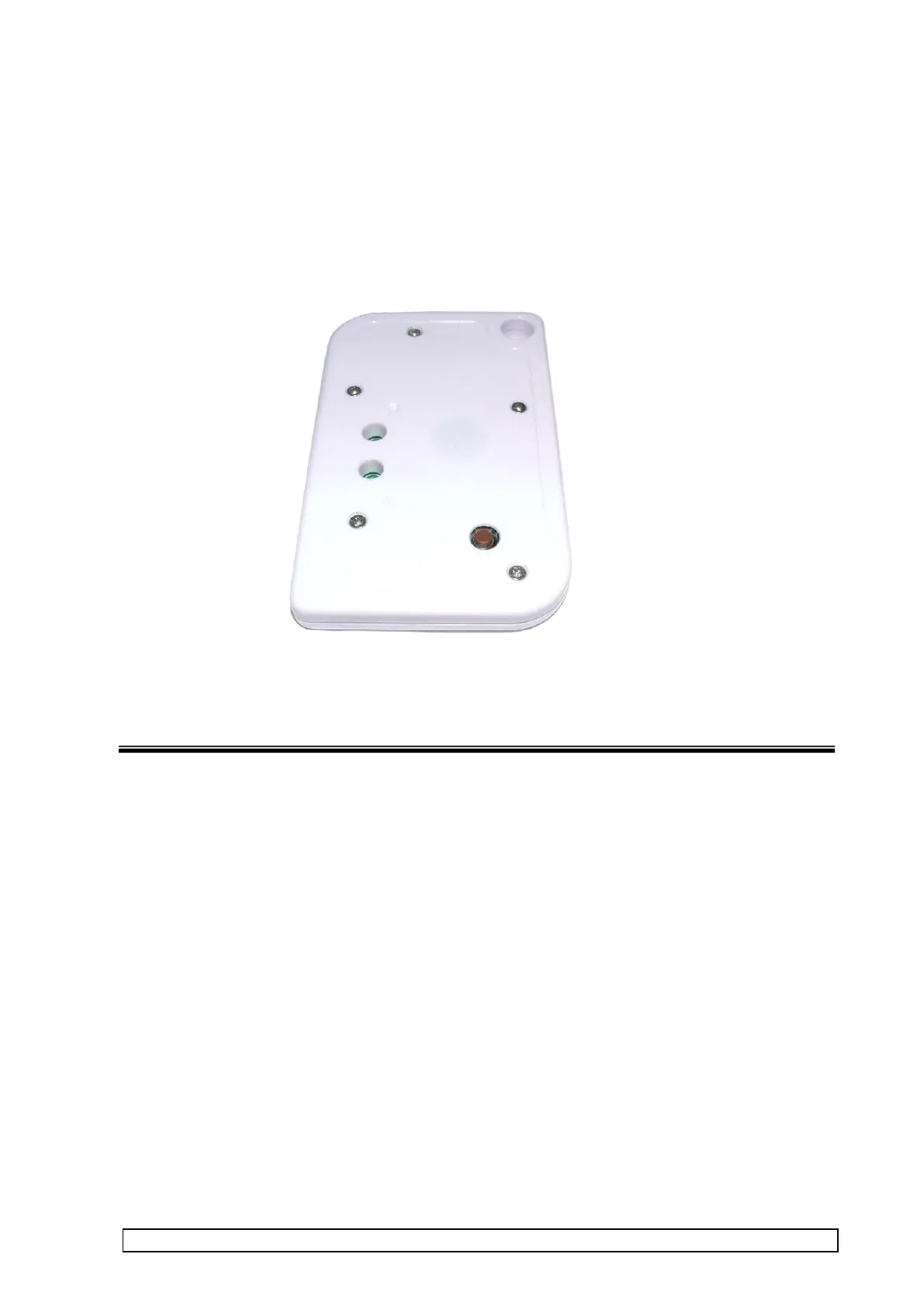

2.8 Screw in 5 case screws
USE Philips B type DIA2.0 x 6mm length, Ni Plate
Screw into case with just enough torque to bed screw heads into countersunk holes.
NOTE: Screw heads must not be above surface of case.
Max screw torque: 2 Inch-pound (Lbin) / 0.225 newtonmeter (Nm = J = kgm2/s2)
