1.7 Solder on Electro-Cap
Procedure

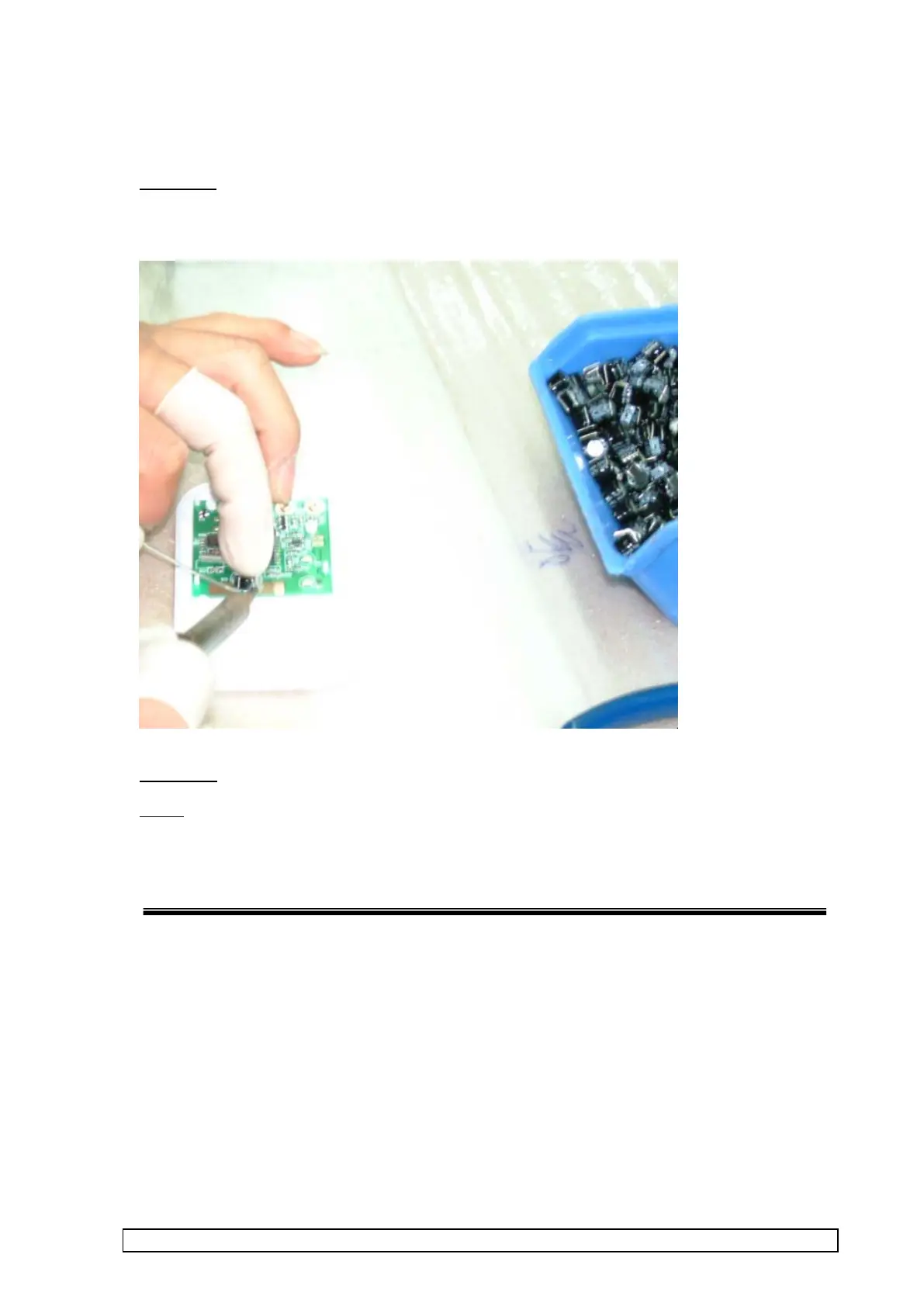

Electro cap (470uF,4V) is positioned in large hole in PCB and the legs are carefully bent back over to solder
to two pads in PCBA.
Legs must be pre-trimmed to correct length.
Inspection
OBSERVE POLARITY.
Check Polarity is correct.
