L-IP User Manual 33 LOYTEC
Version 6.1 LOYTEC electronics GmbH
State: This item shows, if the selected router is online or offline.
4.6.3 CEA-852 Device Settings
To change the CEA-852 client settings and register with a configuration server navigate to
the IP address item on the main menu next to CS: and press the button as shown in Figure
22.

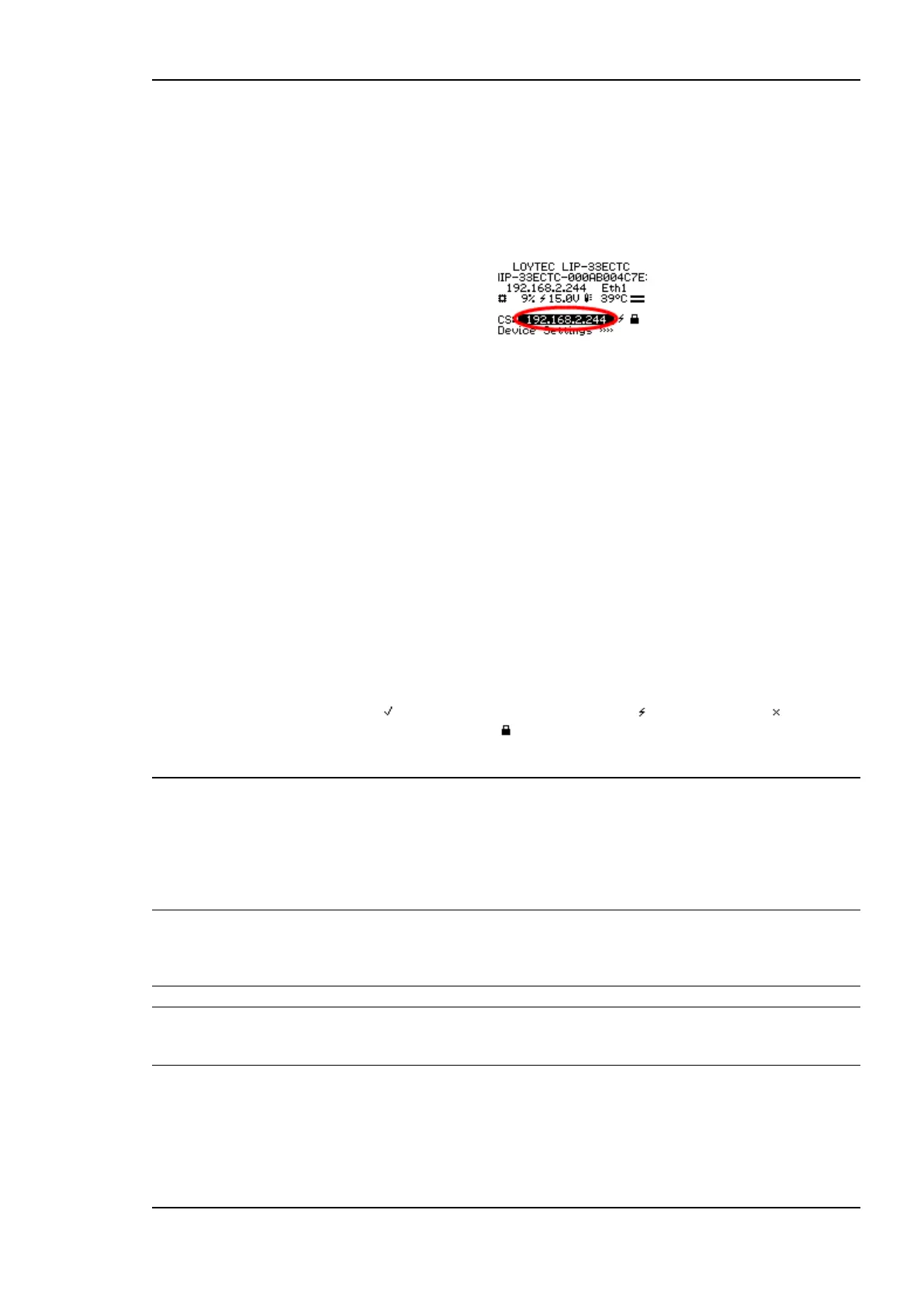

Figure 22: Setting the CS address on the LCD UI.
This opens the CEA-709 over IP menu with the following settings:
Config Server IP: Enter the IP address of the configuration server into the four
separate input fields.
Config Server Port: Enter the configuration server port. The default 1629 can be left
unchanged in most cases.
Config Client Port: Enter the configuration client port. The default 1628 can be left
unchanged in most cases.
MD5: The default is off. Turn this on, if MD5 authentication shall be used on the
channel for security purposes.
Key: If MD5 is turned on enter the MD5 secret key into the 16 input fields.
The title page also shows the CEA-852 client state as a symbol next to the CS address. It
can be normal ( ), waiting for the configuration server ( ), or not registered ( ). If MD5 is
enabled on this device a lock icon is shown.
4.7 Wiring
4.7.1 L-IP
Every network segment connected to the L-IP needs to be terminated according to the rules
found in the specification of the transceiver (see Chapter 11).
Important: All used and unused ports must be properly terminated. LOYTEC recommends the use of
the LOYTEC L-Term series network terminators (LT-13 or LT-33 respectively). For
unused ports, it is recommended to use a 100 Ohm 0.25 W resistor between terminals A
and B as termination.
Important: When using shielded network cables, only one side of the cable should be connected to
earth ground. Thus, the shield must be connected to earth ground either at the L-IP
terminals or somewhere else in the network (see Figure 23)!
