Switch mode, this page has two more configuration fields: Subnet/node learning and
Group learning.
Per default the router mode is set according to the DIP switches. See Section 7.1 for more
information on the different router modes.

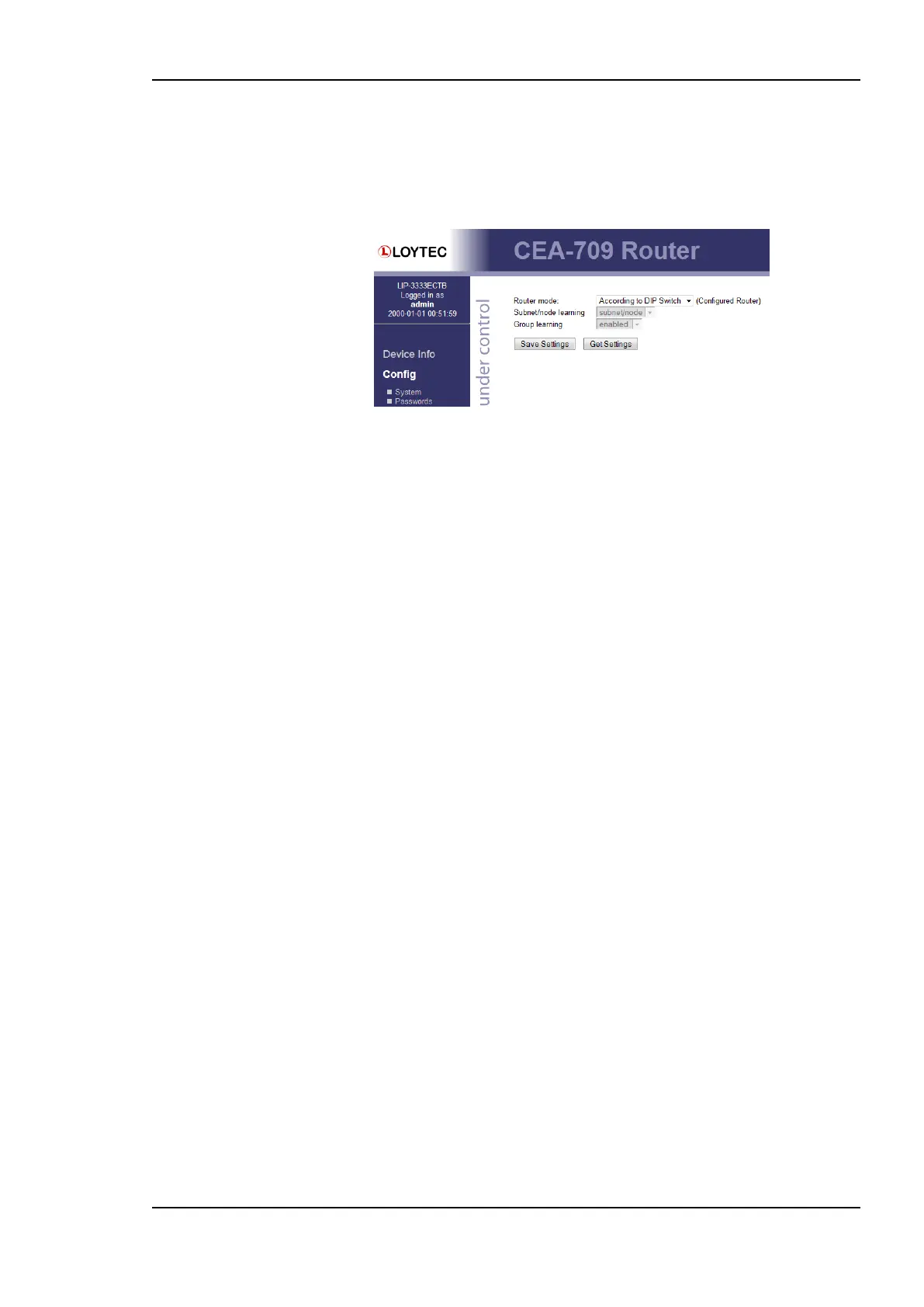

Figure 65: CEA-709 Router Configuration Page.
6.2.12 CEA-852 Server Configuration
On this configuration page the configuration server on the device can be enabled or
disabled. In the drop-down box Config server status select enabled and click on Save
Settings to activate the configuration server. Then the configuration server settings page
appears as shown in Figure 66. If the configuration server is enabled the green configuration
server LED labeled Server will be on, otherwise it will be off.
The configuration server port can be changed in the Config server port field. It is
recommended to keep the default port setting of 1629. The field Channel name is
informational only and can consist of up to 15 characters.
The field Channel members displays the current number of members on the IP-852
channel. The field Channel mode reflects the current channel mode. The L-IP
configuration server automatically determines this mode. Depending on if there are any two
devices in the channel which use the same IP address but different ports (e.g., multiple
CEA-852 devices behind one NAT router). If all IP addresses are unique, the mode is
Standard, if some are not unique the mode is Extended NAT mode. Please refer to
Section 7.3.2 to learn more about the implications of this mode.
