LOYTEC L-IP User Manual

L-IP User Manual 132 LOYTEC
Version 6.1 LOYTEC electronics GmbH

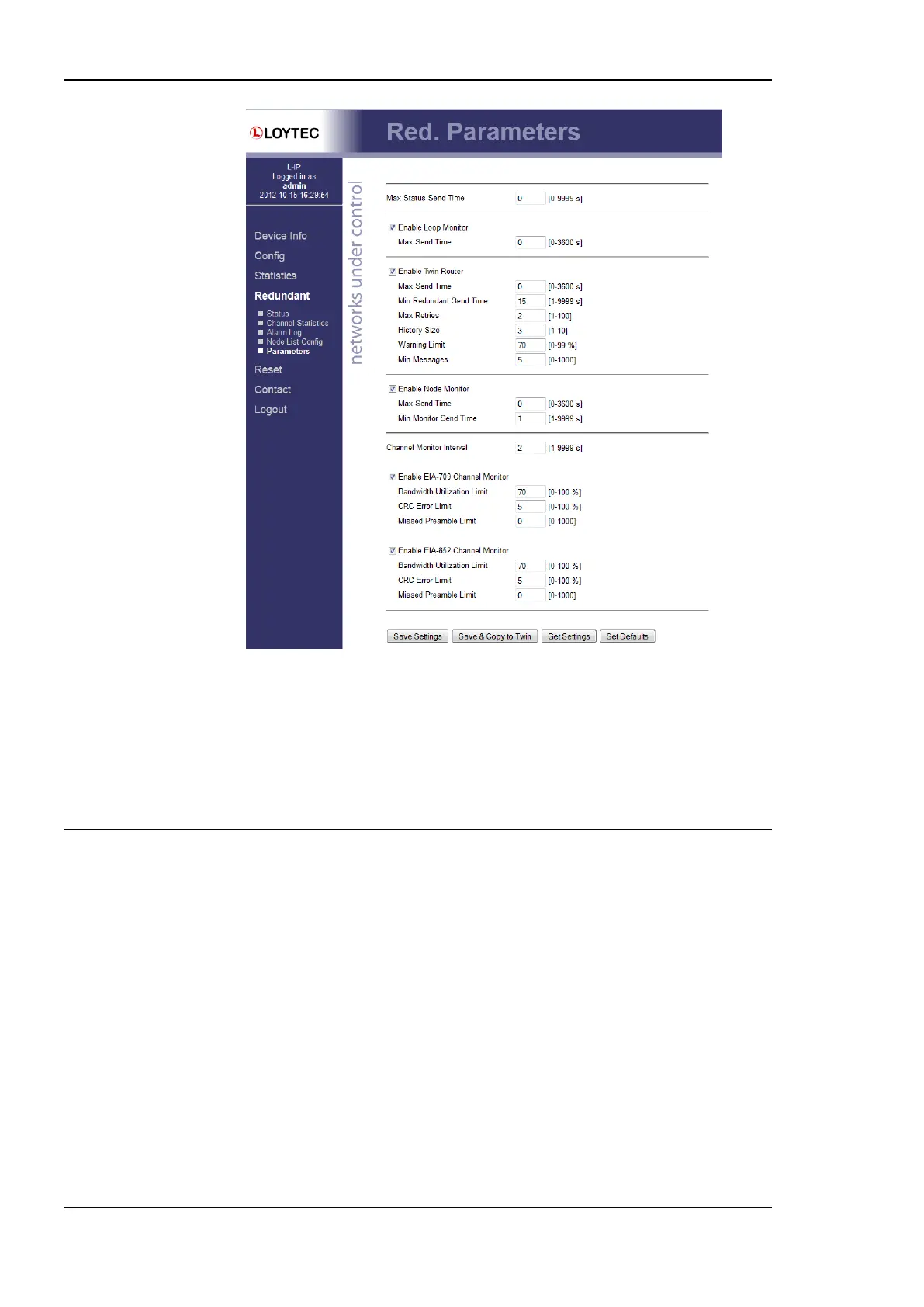

Figure 132: The L-IP Redundant Web Interface – Parameters Page
Major differences compared to the plug-in interface are:
If router redundancy is used, the button “Save & Copy to Twin” allows saving changes in
the configuration to the local device and its twin router. It is strongly recommended to
always copy the parameters to the twin router to guarantee smooth operation.
9.7 Network Interface
The following network variable interface is available for visualization, alarming and
configuration. It follows the guidelines defined by the LonMark organization.
9.7.1 Node Object
The Node Object functional block is shown in Figure 133. In addition to the mandatory
functions defined in the LonMark Node Object functional profile the following optional and
user defined functions are implemented:
