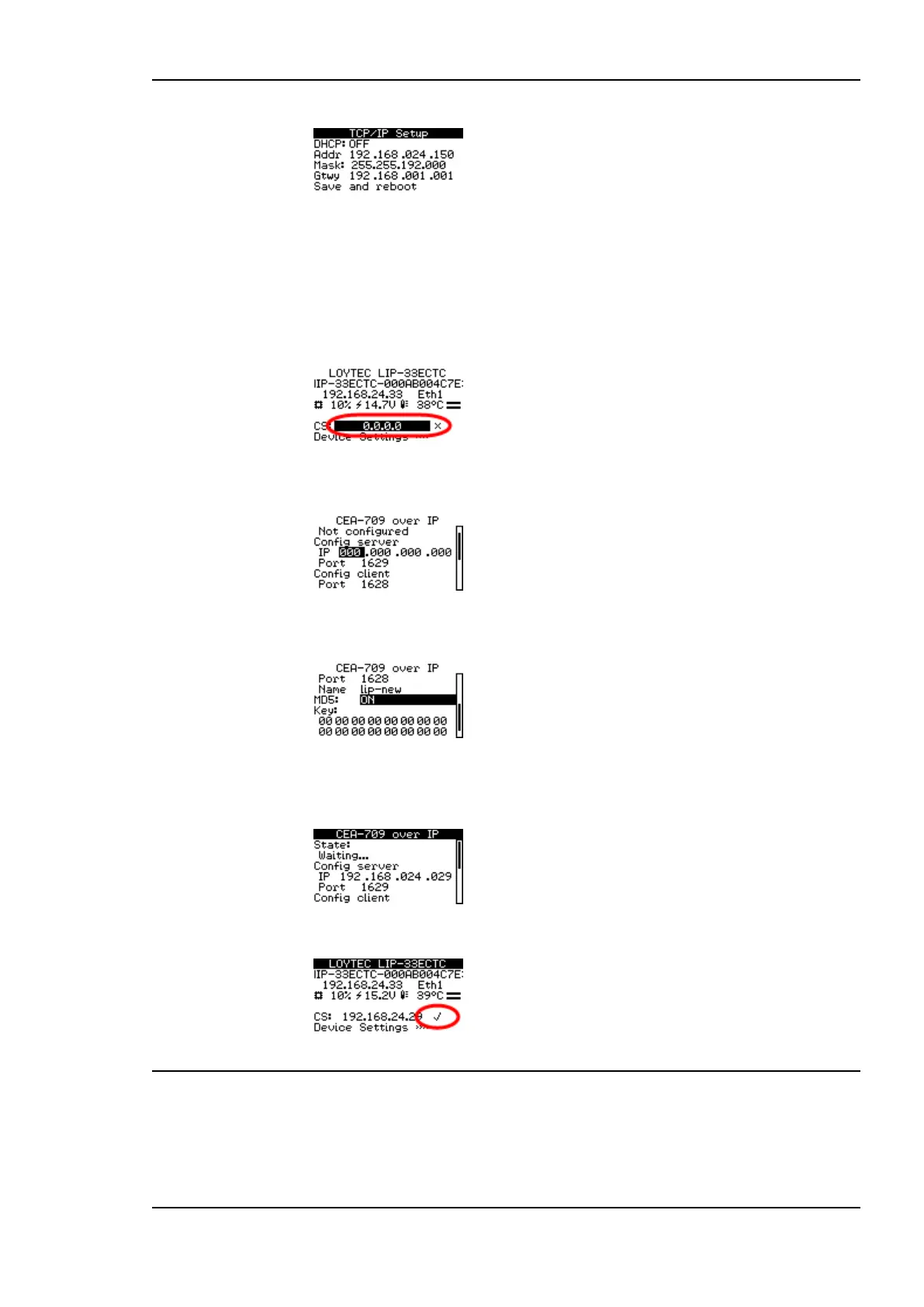

4. Finally navigate to Save and reboot and press.
5. Acknowledge the reboot and the device reboots with the new IP address.
To Register with a Configuration Server
1. On the LCD main screen navigate to the address field next to CS and click on it.
2. This leads to the CEA-709 over IP menu. Navigate to the Config Server IP and enter
the IP address into the four fields. Optionally adapt Config Server Port.
3. If the channel requires MD5 authentication, set MD5 to ON and enter the secret key
below.
4. Finally navigate to the bottom, click Save and acknowledge with YES. The device now
tries to register with the configuration server. Observe the status information to see, if
the registration completes.
5. Back in the home screen the configuration server is shown with a checkmark.
3.3 Configuration Server Settings
If the L-IP should also act as the configuration server for the IP-852 channel, open the Web
interface and go to the menu CEA-852 Server. In the drop-down box Config server status
select enabled and click on Save Settings to activate the configuration server. Then the
configuration server settings page shows all settings.
