LSIS sv-ig5a User Manual

8-3

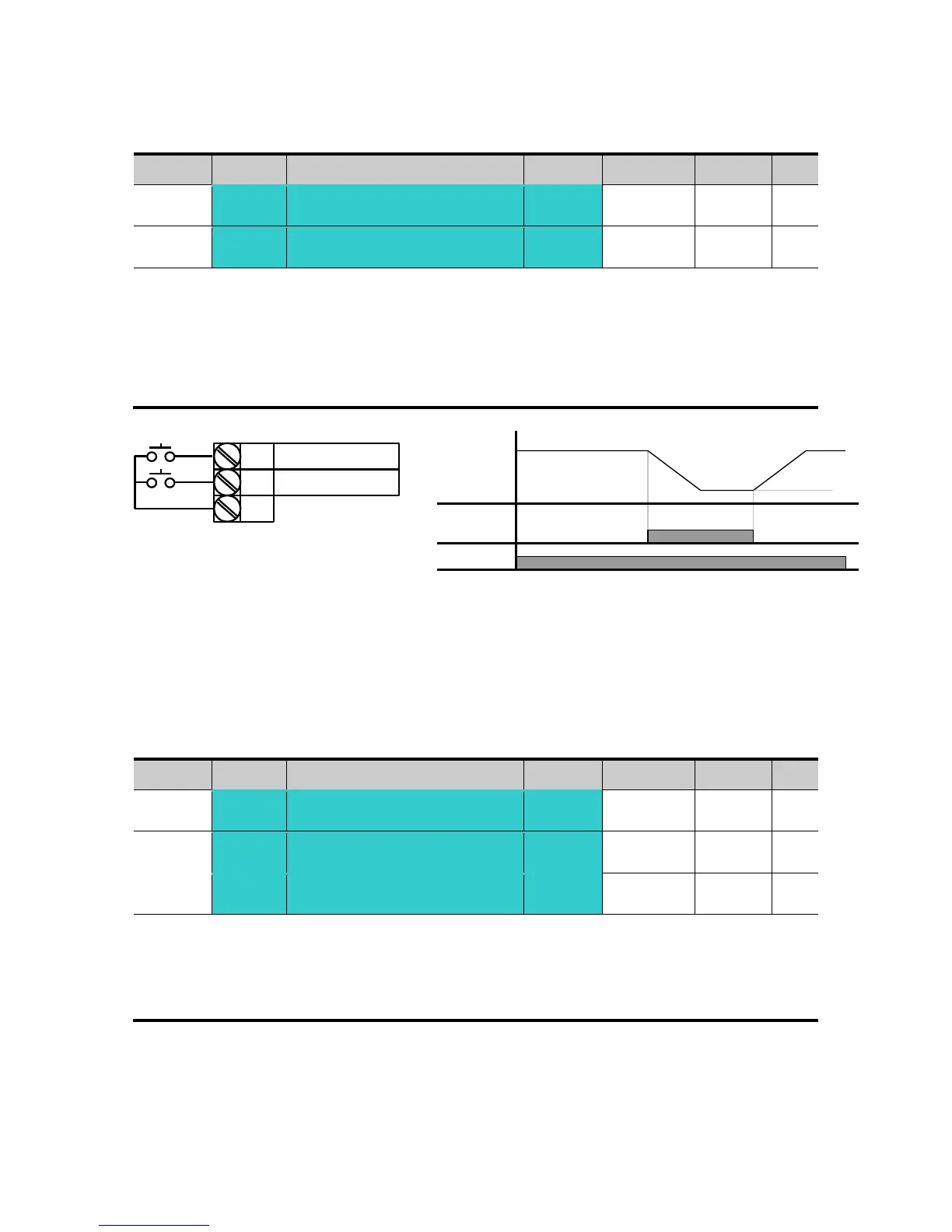

8.2 Jog operation
 Terminal jog operation
Group
Display
Parameter Name
Setting
Range
Default
Unit
Function
group 1
F20
[Jog frequency]
-
0 ~ 400
10.00
Hz
I/O
group
I21
[Multi-function input
terminal P5 define]
4
0 ~ 25
4
 Set the desired jog frequency in F20.
 Select a terminal from P1 - P8 to use for this setting.
 If P5 is set for Jog operation, set I21 to 4 {Jog}.
 Jog frequency can be set within the range of F21 - [Max frequency] and F23 – [Start
frequency].
 Jog operation overrides all other operations except Dwell operation. Therefore, if Jog frequency
command is entered in the middle of Multi-Step, Up-Down or 3-wire operation, operation is
executed at Jog frequency.
 The above diagram is an example when Multi-function input is set to NPN mode.
 Terminal jog operation
 Terminal JOG FX/RX operation
Group
Display
Parameter Name
Setting
Range
Default
Unit
Function
group 1
F20
[Jog frequency]
-
0 ~ 400
10.00
Hz
I/O
group
I23
[Multi-function input
terminal P7 define]
26
0 ~ 27
6
I24
[Multi-function input
terminal P8 define]
27
0 ~ 27
7
 Set the desired jog frequency in F20.
 Select a terminal from P1 - P8 to use for this setting.
 If P7 is set for Jog operation, set I23 to 26 {Jog}.
 Jog frequency„s setting range can be set between Max. frequency (F21) and start frequency
(F23).
 The following diagram is an example when reference frequency is 30Hz and Jog frequency is
10 Hz.
P1
P5
CM
FX : I17 = 0
JOG : I21=4
P5 (JOG)
Run
command(FX)
Frequency
F20
