LSIS sv-ig5a User Manual

9-3
9.2 Monitoring the I/O terminal
 Input terminal status monitoring
Group
Display
Parameter Name
Setting
Range
Default
Unit
I/O group
I25
[Input terminals status
display]
-
 Current input terminal status (ON/Off) can be monitored in I25.

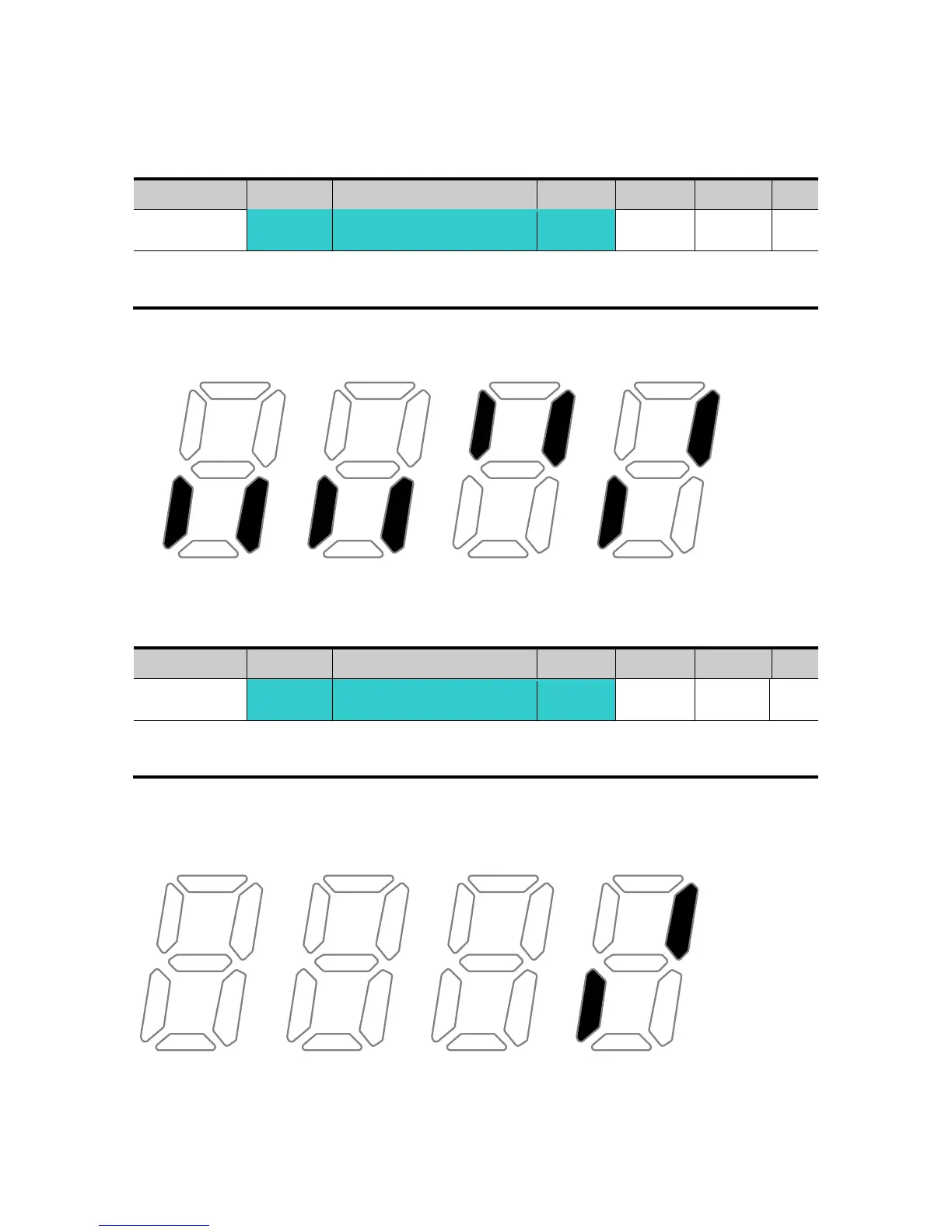

 The following is displayed when P1, P3, P4 are ON and P2, P5 are OFF.
 Output terminal status monitoring
Group
Display
Parameter Name
Setting
Range
Default
Unit
I/O group
I26
[Output terminals status
display]
-
 Current output terminals (MO, relays) status (ON/Off) can be monitored in I26.
 The followings are displayed when Multi-function output terminal (MO) is ON with Multi-function
relay OFF.
P8 P7 P6 P5 P4 P3 P2 P1
(ON)
(OFF)
3AC MO
(ON)
(OFF)
