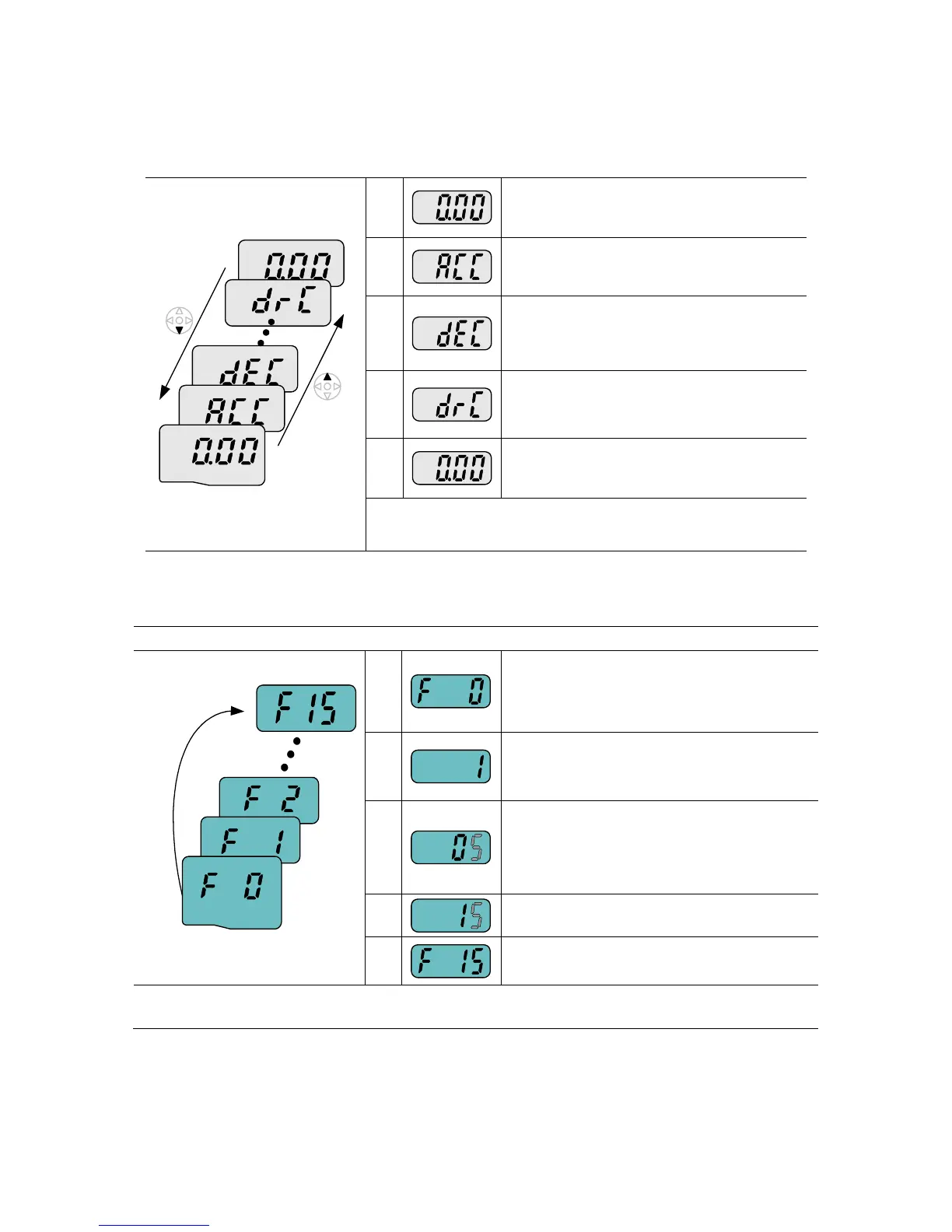

4.4 How to change the codes in a group
 Code change in Drive group
Drive group
1
-. In the 1
st
code in Drive group “0.00”,
press the Up () key once.
2
-. The 2
nd
code in Drive group “ACC” is
displayed.
-. Press the Up () key once.
3
-. The 3
rd
code “dEC” in Drive group is
displayed.
-. Keep pressing the Up () key until the
last code appears.
4
-. The last code in Drive group “drC” is
displayed.
-. Press the Up () key again.
5
-. Return to the first code of Drive group.
 Use Down () key for the opposite order.
 Code jump
When moving from the “F 0” to the “F 15” directly
FU group 1
1
-. Press the Ent () key in “F 0”.
2
-. 1 (the code number of F1) is displayed.
Use the Up () key to set to 5.
3
-. “05” is displayed by pressing the Left
() key once to move the cursor to the
left. The numeral having a cursor is
displayed brighter. In this case, 0 is active.
-. Use the Up () key to set to 1.
4
-. 15 is set.
-. Press the Ent () key once.
5
-. Moving to F 15 has been complete.
 Function group 2 and I/O group are settable with the same setting.
