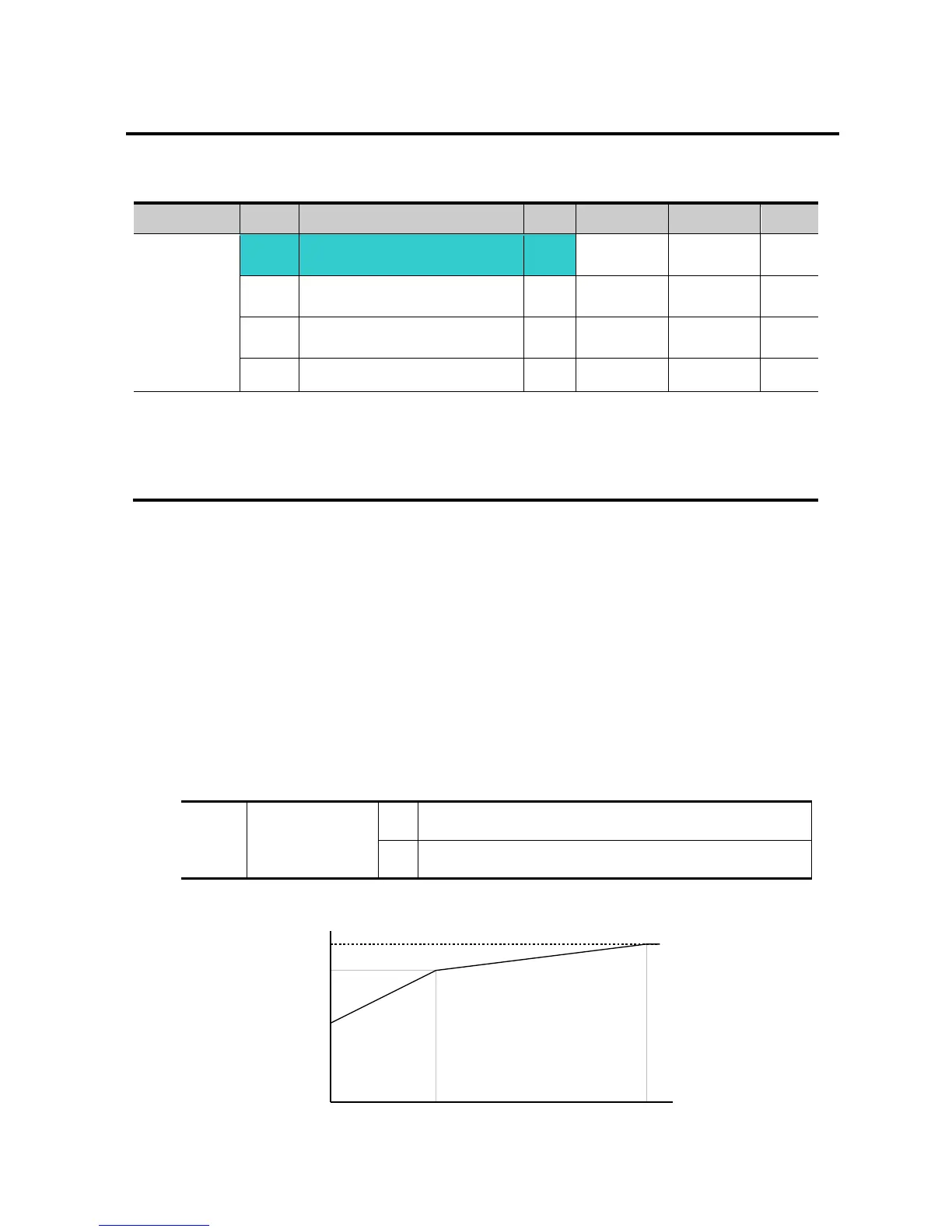

CHAPTER 10 - PROTECTIVE FUNCTIONS
10.1 Electronic Thermal
Group
Code
Parameter
Set
Range
Initial
Unit
Function
group 1
F50
[ETH (Electronic thermal)
select]
1
0 ~ 1
0
F51
[Electronic thermal level for 1
minute]
-
50 ~ 200
150
%
F52
[Electronic thermal level for
continuous]
-
50 ~ 150
100
%
F53
[Motor type]
-
0 ~ 1
0
 Select F50 – [Electronic thermal select] to 1.
 It activates when the motor is overheated (time-inverse). If current greater than set in F51
flows, inverter output is turned off for the preset time in F51- [Electronic thermal level for 1
minute].
 F51: Enter the value of max current that is capable of flowing to the motor continuously for one
minute. It is set in percent of motor rated current. The value cannot be set lower than F52.
 F52: Enter the amount of current for continuous operation. Normally motor rated current is
used. It cannot be set greater than F51.
 F53: For an inductance motor, cooling effects decrease when a motor is running at low speed.
A special motor is a motor that uses a separately powered cooling fan maximize cooling effect
even in low speed.
F53
[Motor type]
0
Standard motors having a cooling fan directly
connected to the shaft
1
Special motor that uses a separately powered
cooling fan.
Current for
continuous [%]
100
95
65
20 60
Freq [Hz]
F53 = 1
F53 = 2
