4.6 Monitoring of operation status
 Output current display

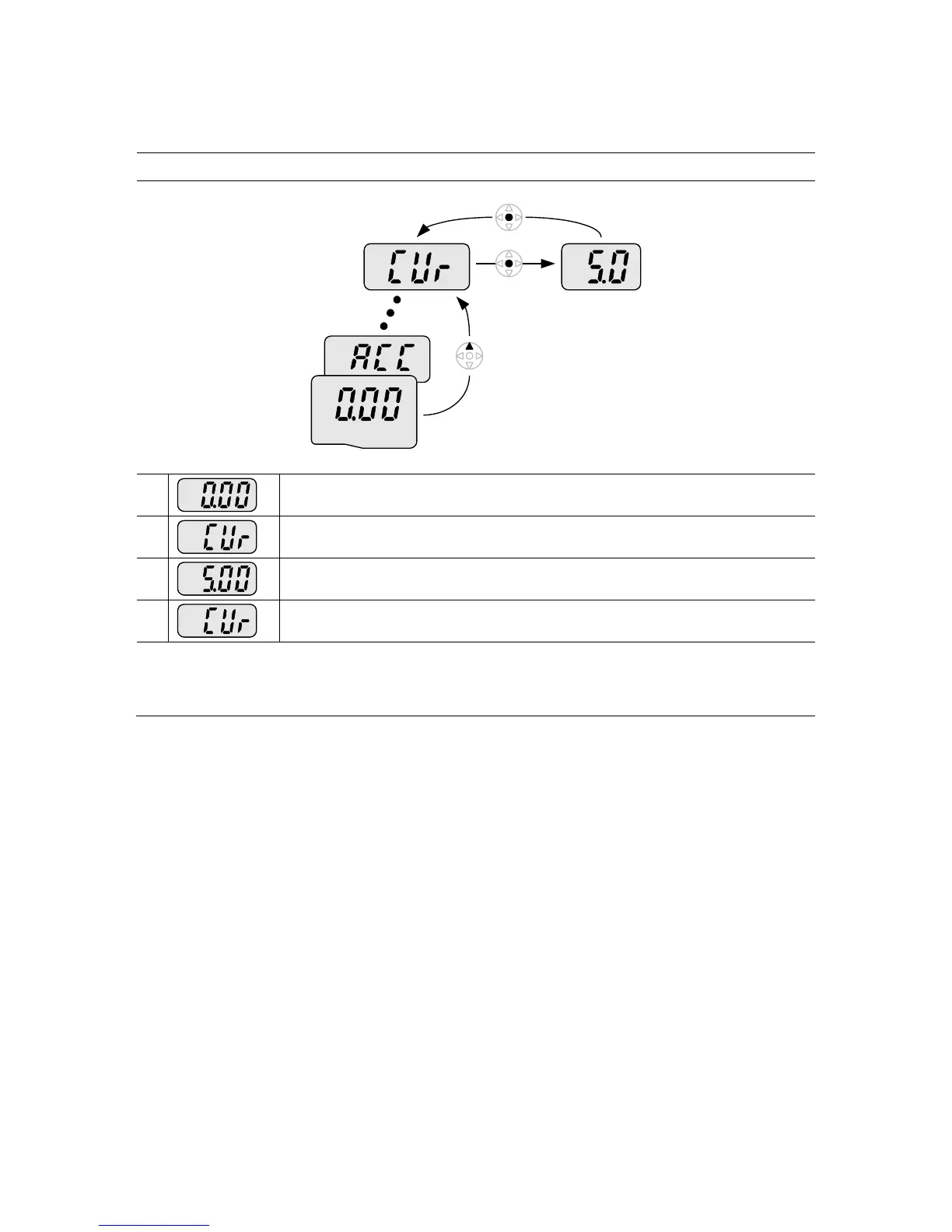

Monitoring output current in Drive group
Drive group
1
-. In [0.0], continue pressing the Up () or Down () key until [CUr] is
displayed.
2
-. Monitoring output current is provided in this parameter.
-. Press the Enter () key once to check the current.
3
-. Present output current is 5 A.
-. Press the Enter () key once to return to the parameter name.
4
-. Return to the output current monitoring code.
 Other parameters in Drive group such as dCL (Inverter DC link voltage) or vOL (Inverter
output voltage) can be monitored via the same method.
