4-14

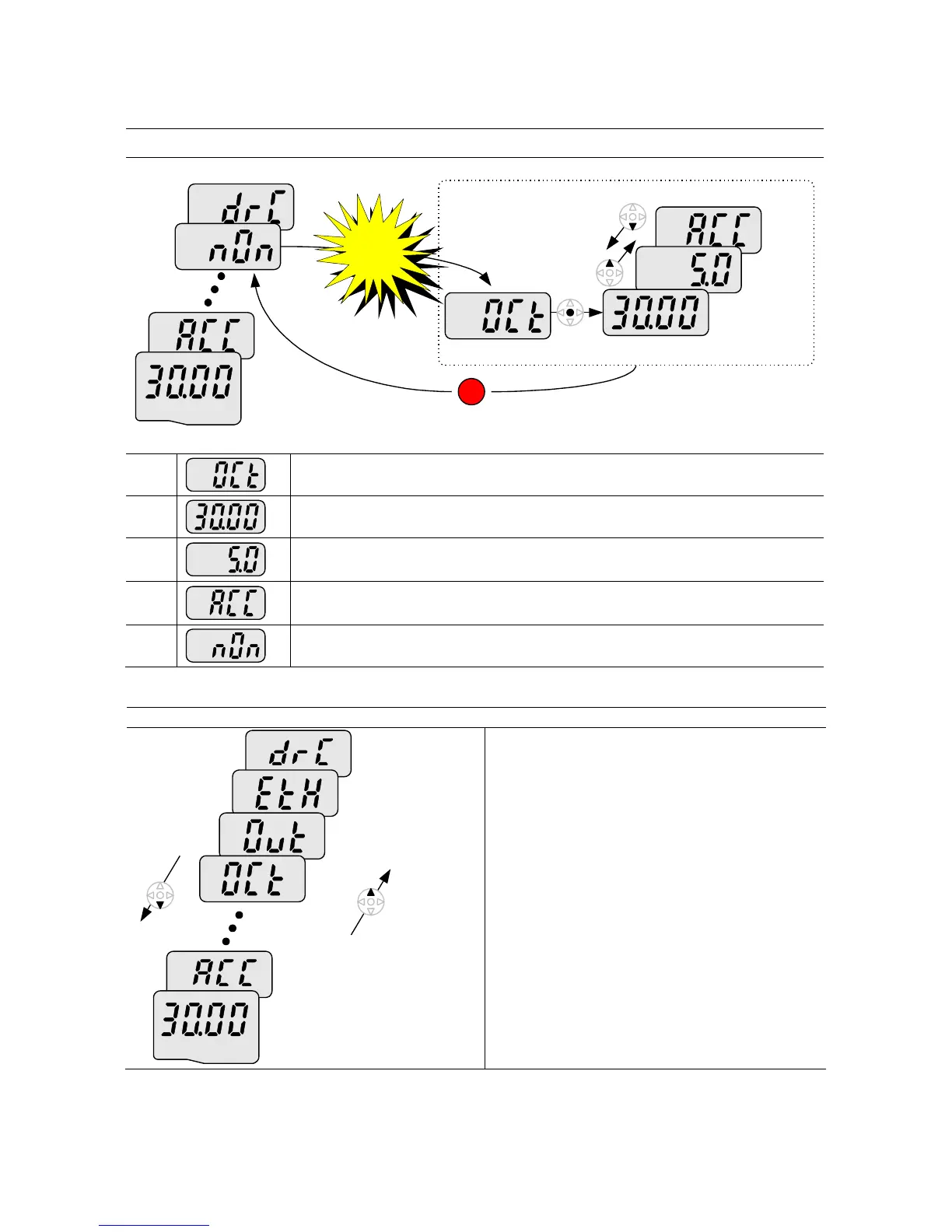

 Fault display
How to monitor fault condition in Drive group
Frequency
Current
During
Accel
Drive group
STOP
RESET
Over-
current
trip
1
-. This message appears when an Overcurrent fault occurs.
-. Press the Enter () key or UP/Down key once.
2
-. The run frequency at the time of fault (30.0) is displayed.
-. Press the Up () key once.
3
-. The output current at the time of fault is displayed.
-. Press the Up () key once.
4
-. Operating status is displayed. A fault occurred during acceleration.
-. Press the STOP/RST key once.
5
-. A fault condition is cleared and “nOn” is displayed.
When more than one fault occurs at the same time
Drive group
Over
current
Over
voltage
Motor
overheat
-. Maximum three faults information is
displayed as shown left.
