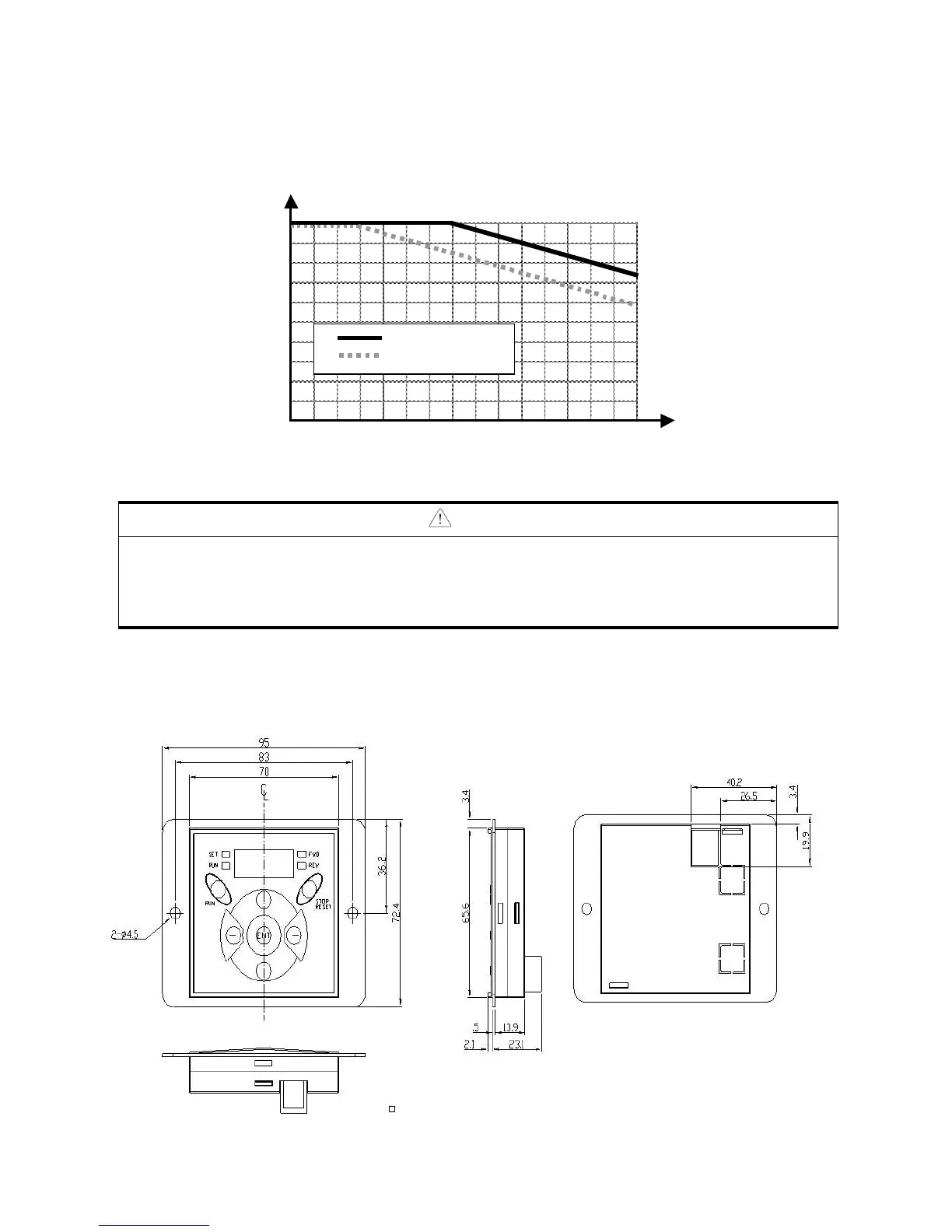

13.2 Temperature Derating Information
 Load and ambient temperature classified by the Carrier Frequency
Caution
1) The above graph is only applied when the inverter is operated in the allowable temperature. Pay
attention to the air cooling when the inverter is installed in a panel box, and the inside
temperature should be within an allowable temperature range.
2) This derating curve is based on inverter current rating when rated motor is connected.
13.3 Remote option
 Parts
1) Remote Keypad
% of Drive
Rated Amps
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0
Carrier Frequency in kHz
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
72%
58%
40℃ Rating
41℃ ~ 50℃ Rating
