13-5
2) Remote Cable (1M,2M,3M,5M)
 Remote Cable Model Number
Model number
Specification
64100022
INV, REMOTE 1M (SV-iG5A)
64100001
INV, REMOTE 2M (SV-iG5A)
64100002
INV, REMOTE 3M (SV-iG5A)
64100003
INV, REMOTE 5M (SV-iG5A)

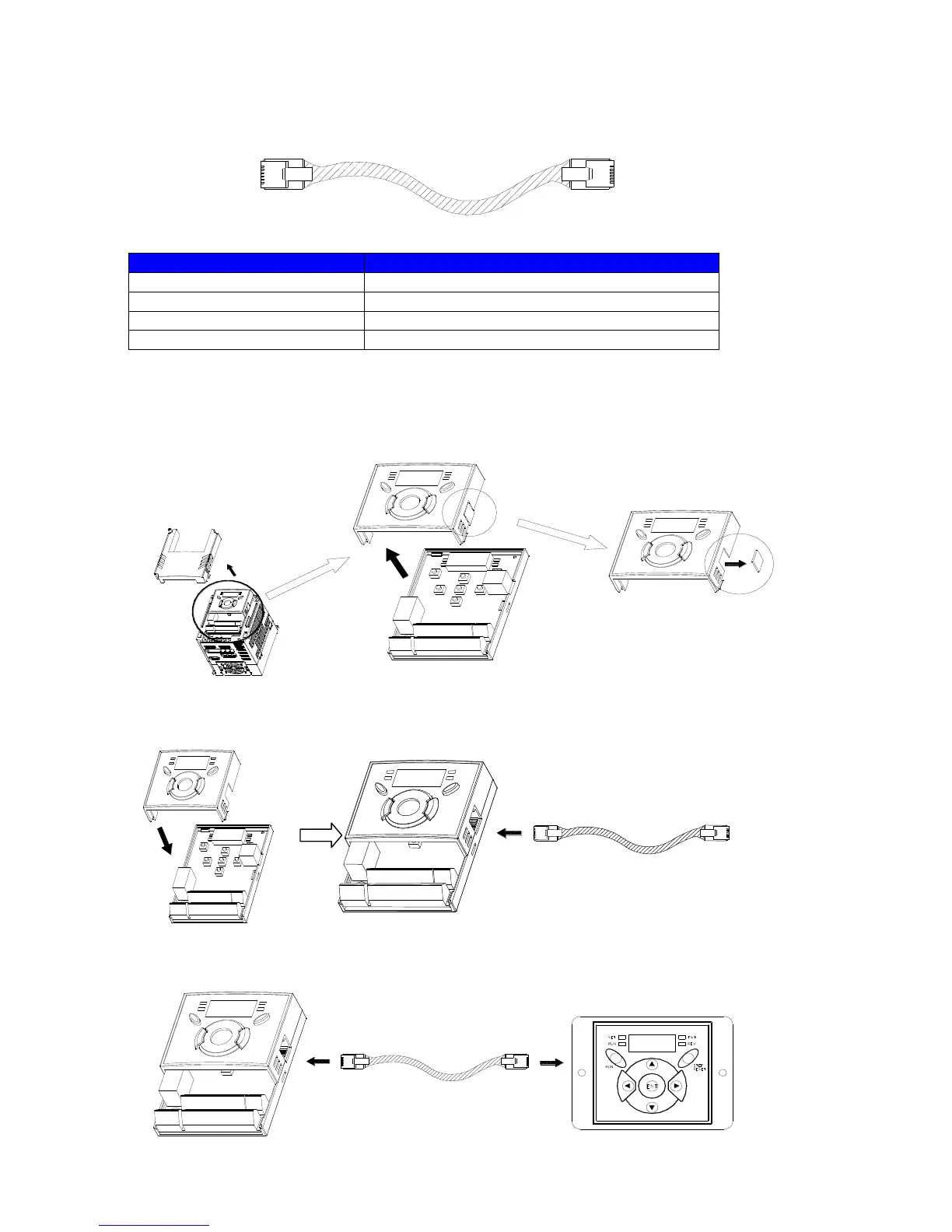

 Installation
1) Take off the top cover of the I/O board kit and remove the hole cover to connect remote cable
on the side.
2) Attach the top cover of the I/O board kit and connect the remote cable as shown below.
3) Connect the other side of the remote cable to the remote keypad as shown below.
