9-9

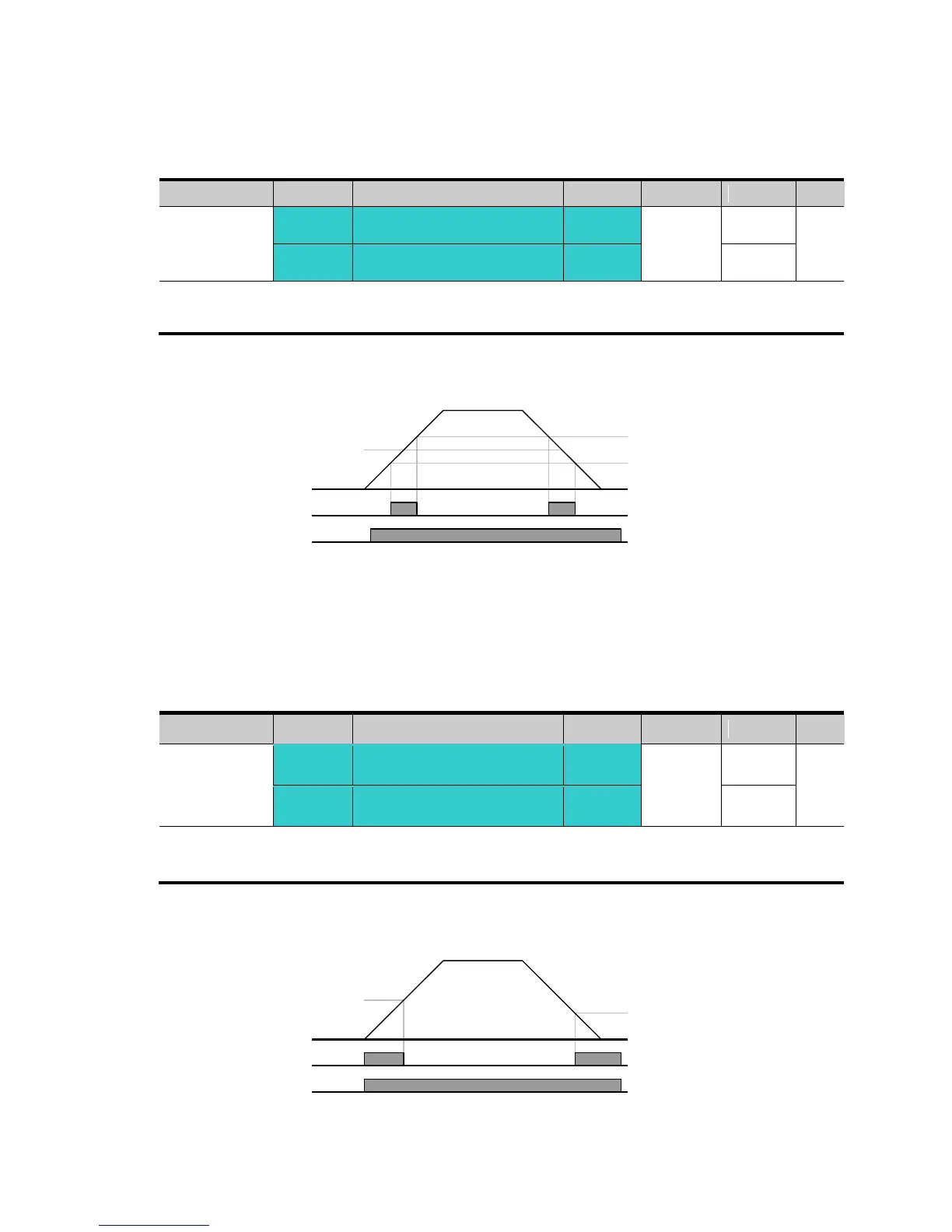

 2: FDT-3
 Activated when run frequency meets the following condition.
 Active condition: Absolute value (FDT level - run frequency) <= FDT Bandwidth/2
Group
Display
Parameter Name
Setting
Range
Default
Unit
I/O group
I52
[Detected Frequency
level]
-
0 ~ 400
30.00
Hz
I53
[Detected Frequency
Bandwidth]
-
10.00
 Cannot be set above Max frequency (F21).
 When setting I52 and I53 to 30.0Hz and 10.0 Hz, respectively
 3: FDT-4
 Activated when run frequency meets the following condition.
Active condition:
Accel time: Run Frequency >= FDT Level
Decel time: Run Frequency > (FDT Level – FDT Bandwidth/2)
Group
Display
Parameter Name
Setting
Range
Default
Unit
I/O group
I52
[Detected Frequency
level]
-
0 ~ 400
30.00
Hz
I53
[Detected Frequency
Bandwidth]
-
10.00
 Cannot be set above Max frequency (F21).
 When setting I52 and I53 to 30.0Hz and 10.0 Hz, respectively
Freq.
MO
Run
command
25Hz
30Hz
35Hz
Freq.
MO
Run
command
25Hz
30Hz
