Chapter 5 Remote Connection
5-3
2) Select settings of “Connection settings” and set detail of modem

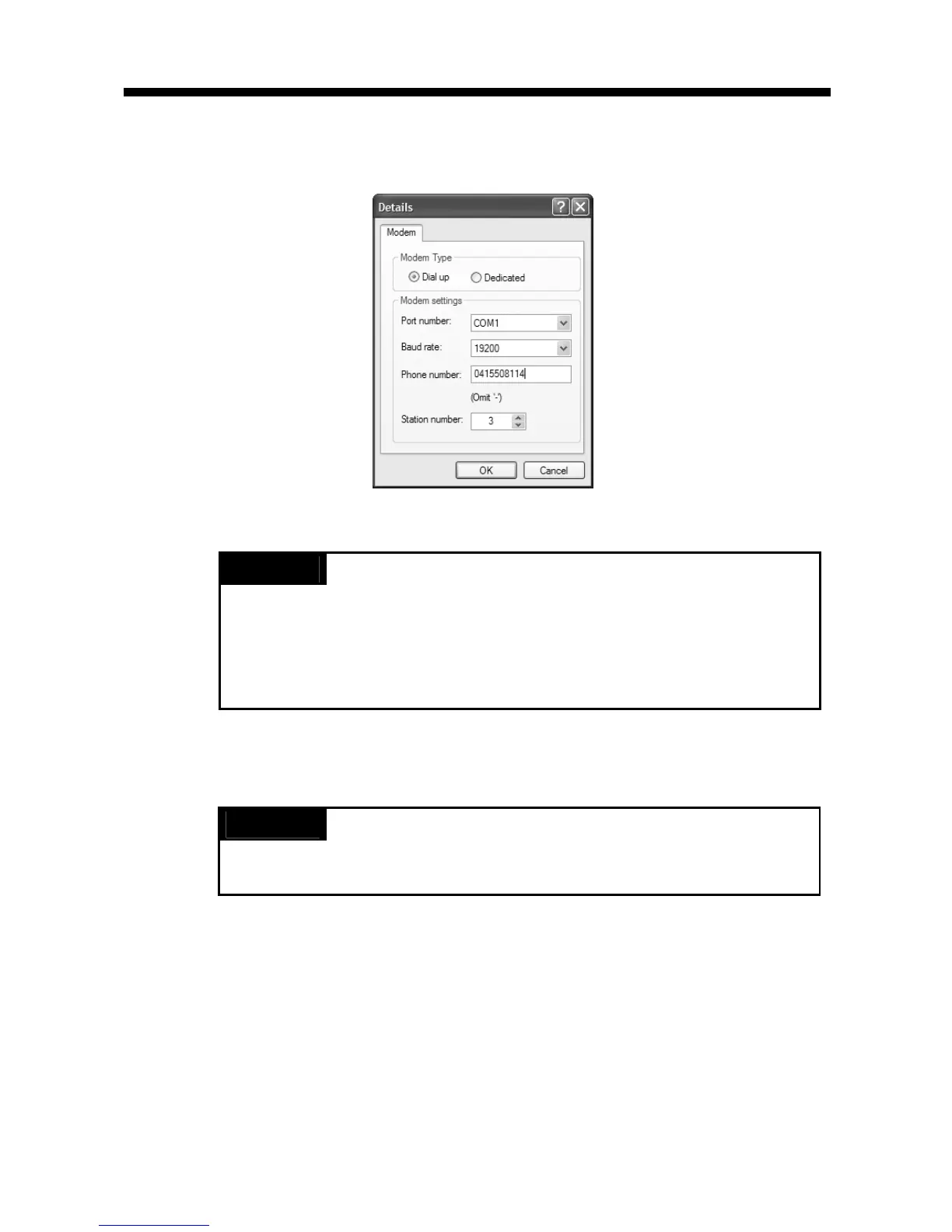

[Figure 5.1.4] Modem detail setting screen
Note
Baud rate in modem settings means communication speed between PC and modem,
not communication speed of modem. Baud rate of modem means communication speed
between modem and modem, it is set automatically according to quality of public line
and destination modem’s speed.
For XG5000 remote connection at XGB PLC, you should use RS-232C channel. At
communication standard setting, set “RS-232C dial-up modem” and write it to XGB Cnet
I/F module.
3) Phone number means phone number of modem side connected with Cnet I/F module, in case
of going out from local through extension line, you can use extension number and ‘,’ symbol.
(Ex) In case extension number is ‘9’: set as 9, 0343-398-xxxx
Note
In case modem connected with Cnet I/F module of destination station is through
tandem center, communication is impossible. Namely, there is extension number for
reception station, dial-up modem communication is impossible.
4) In case of selecting connection step as remote 2, like the following, select base and slot
number of remote 1 communication module in detail and communication module station
number of remote 2. Inputs station number set in Cnet I/F module, In case of Cnet channel,
selects communication channel of remote 2.
