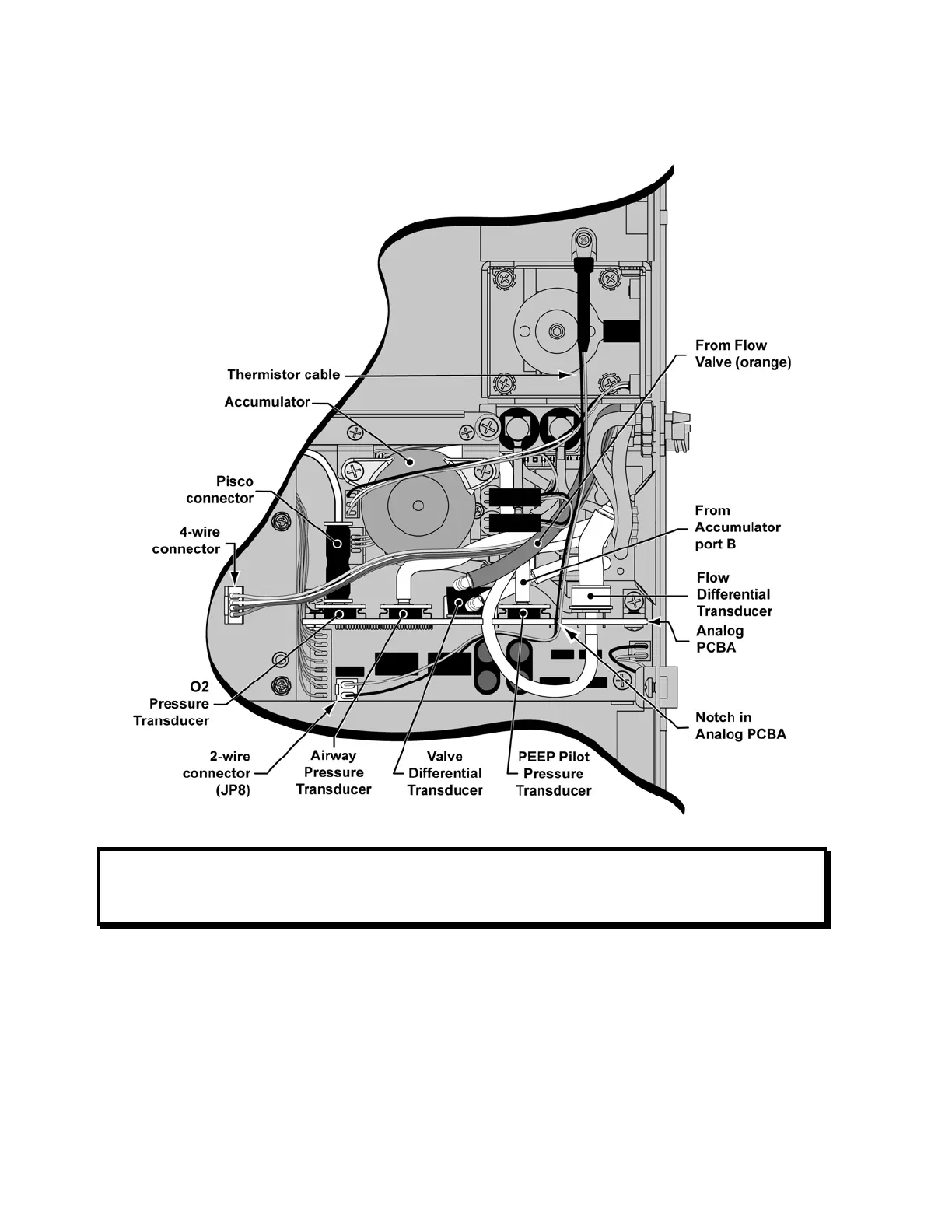

7) Carefully route the Thermistor Cable between the tubing, through the notch in the
analog PCBA, and connect it to JP8 on the power board as shown. The cable should
tuck behind the capacitors on the power board to avoid strain.
NOTE
Make certain the Thermistor Cable does not interfere with the flow valve operation and that
it does not strain the tubing connected to the solenoid manifold and analog PCBA.
