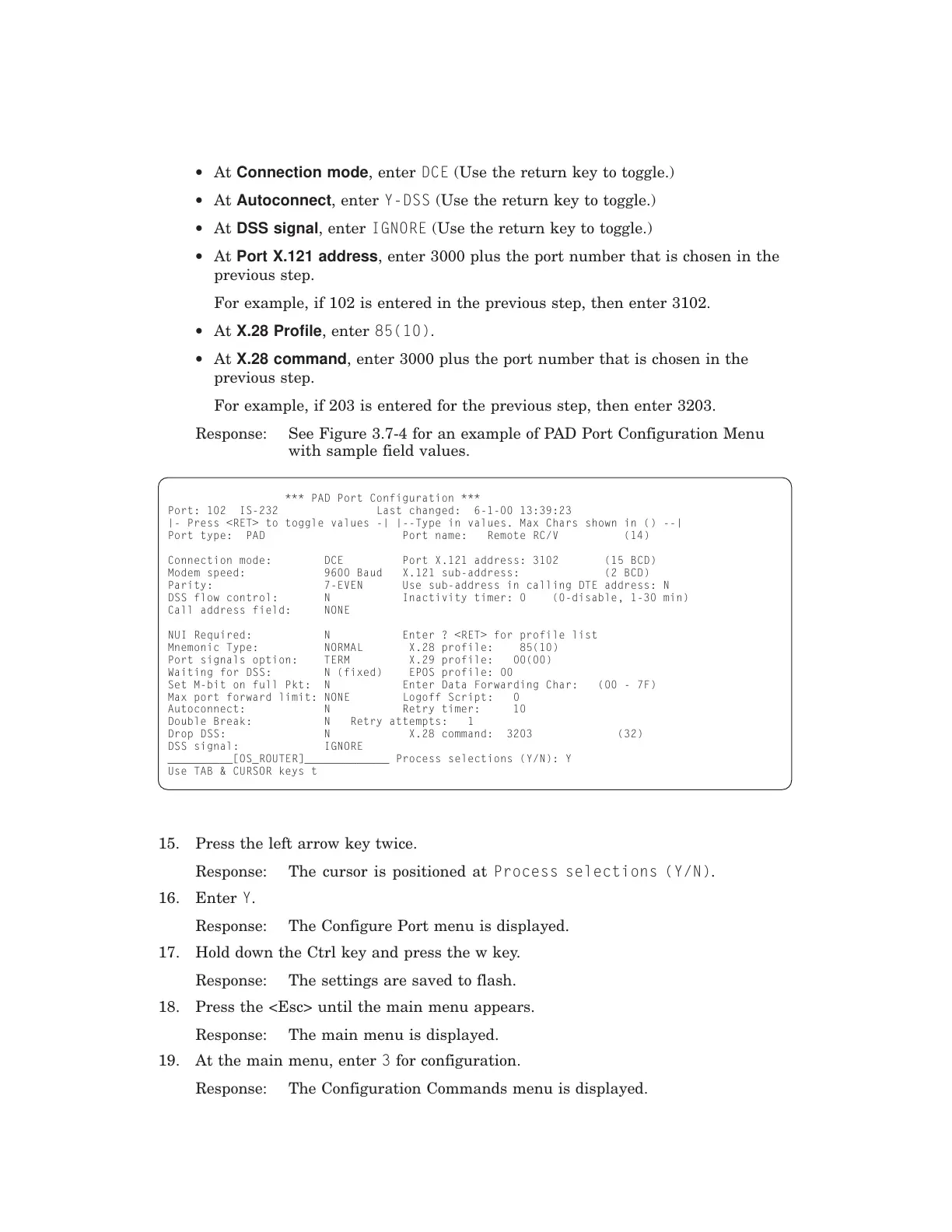

• At Connection mode, enter DCE (Use the return key to toggle.)

• At Autoconnect, enter Y-DSS (Use the return key to toggle.)

• At DSS signal, enter IGNORE (Use the return key to toggle.)

• At Port X.121 address, enter 3000 plus the port number that is chosen in the

previous step.

For example, if 102 is entered in the previous step, then enter 3102.

• At X.28 Profile, enter 85(10).

• At X.28 command, enter 3000 plus the port number that is chosen in the

previous step.

For example, if 203 is entered for the previous step, then enter 3203.

Response: See Figure 3.7-4 for an example of PAD Port Configuration Menu

with sample field values.

15. Press the left arrow key twice.

Response: The cursor is positioned at Process selections (Y/N).

16. Enter Y.

Response: The Configure Port menu is displayed.

17. Hold down the Ctrl key and press the w key.

Response: The settings are saved to flash.

18. Press the <Esc> until the main menu appears.

Response: The main menu is displayed.

19. At the main menu, enter 3 for configuration.

Response: The Configuration Commands menu is displayed.

*** PAD Port Configuration ***

Port: 102 IS-232 Last changed: 6-1-00 13:39:23

|- Press <RET> to toggle values -| |--Type in values. Max Chars shown in () --|

Port type: PAD Port name: Remote RC/V (14)

Connection mode: DCE Port X.121 address: 3102 (15 BCD)

Modem speed: 9600 Baud X.121 sub-address: (2 BCD)

Parity: 7-EVEN Use sub-address in calling DTE address: N

DSS flow control: N Inactivity timer: 0 (0-disable, 1-30 min)

Call address field: NONE

NUI Required: N Enter ? <RET> for profile list

Mnemonic Type: NORMAL X.28 profile: 85(10)

Port signals option: TERM X.29 profile: 00(00)

Waiting for DSS: N (fixed) EPOS profile: 00

Set M-bit on full Pkt: N Enter Data Forwarding Char: (00 - 7F)

Max port forward limit: NONE Logoff Script: 0

Autoconnect: N Retry timer: 10

Double Break: N Retry attempts: 1

Drop DSS: N X.28 command: 3203 (32)

DSS signal: IGNORE

__________[OS_ROUTER]_____________ Process selections (Y/N): Y

Use TAB & CURSOR keys to move among fields Press ESC to abort command & exit

Figure 3.7-4 — PAD Port Configuration for Remote RC/V with Sample Values

NETWORK PROCEDURES

Procedure 3.7

235-200-150

January 2003

Page 3.7-6 Issue 3.00
