Figure 2-35 shows an example of display page 113 for the DRM.
The Software Change Administration and Notifications System 2 (SCANS2) is used to
transmit Software Updates (SUs) to both the office and the Switching Control Center
(SCC) in previous 5ESS releases where Lucent Electronic Delivery (LED) is not
available.
The Automatic Message Accounting Data Link (AMADL) connects the Automatic
Message Accounting Teleprocessing System (AMATPS) with a Revenue Accounting
Office (RAO) to assemble billing data locally at the DRM in older 5ESS releases where
AMADNS is not available.
The SCC connects the office to the SCC System (SCCS) which monitors and
administers the office.
The EADAS connects the office to the EADAS system which collects engineering and
administrative data previous 5ESS releases.
2.9.5.5 MCC Page 116 - Miscellaneous Status
The 116 display page provides a status display for various units/activities which do
not fall under any other grouping. For DRM configurations, miscellaneous alarms are
shown on display page 1400. Figure 2-36 shows the 116 display.

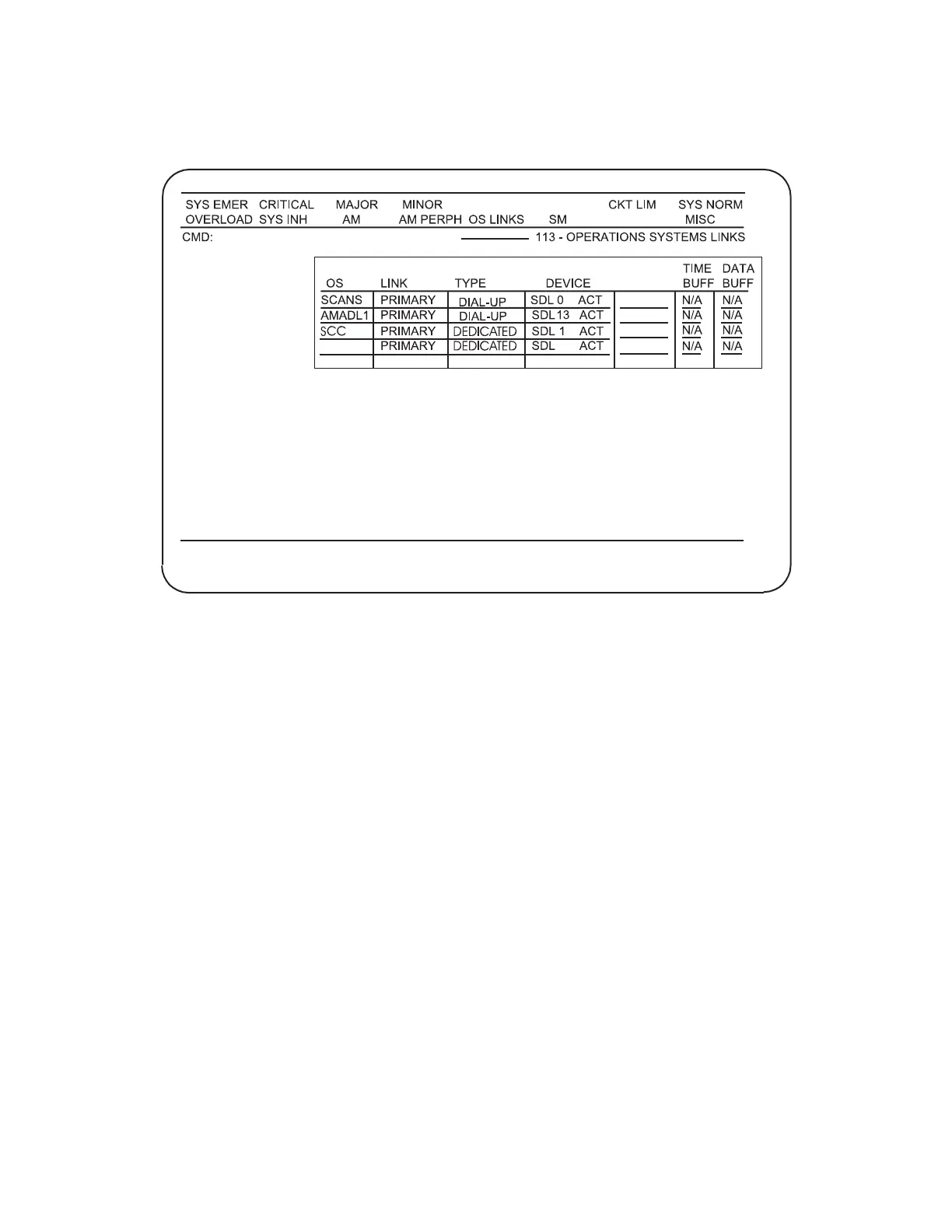

Figure 2-35 — MCC Display Page 113
235-200-150
Feburary 2007
5ESS
®
SWITCH DISTINCTIVE REMOTE MODULE
Issue 3.00O Page 2-45
