CMD RESULT
402 MCTSI forces cleared.
403 MCTSI is switched. (SW:MCTSI=SM#)
2.9.5.8 MCC Page 1400 - Switching Module BLDG/PWR Alarm Status
The purpose of the 1400,X page is to display all building/power alarm status and
assignment and the alarm retire mode. It also provides inhibit/allow controls for
building alarms.
The Alarm Status Unit (ASU) provides audible and visual indication of the office
alarms with LEDs for the alarm levels (critical, major, minor). There is an Alarm
Retire key at the ASU which retires the audible alarms and clears the alarm level
LEDs at the ASU with no effect on the SSA of the terminal.
A normal alarm indicator is displayed in normal video (white on black). Figure 2-39
provides a view of the 1400 page.
Building alarms 02-31 and their alarm levels are office assignable. Doors, windows,
humidity, etc. are types of applications. The alarm level and text in these indicators
are initially filled in using RC/V. Once these indicators are filled in, they are protected
from loss if the system is booted.
2.9.5.8.1 Commands
The following commands are available to inhibit, allow, or retire alarms.

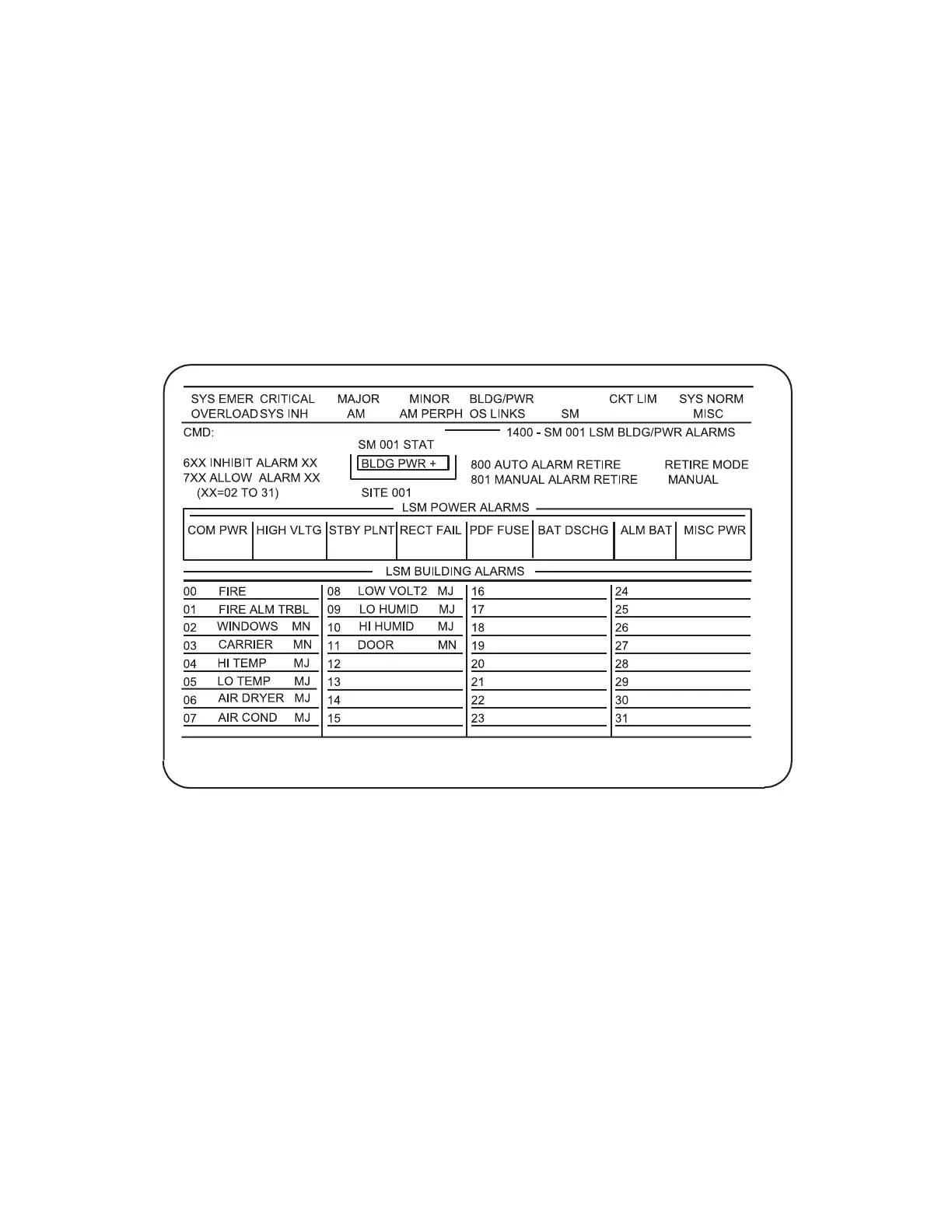

Figure 2-39 — MCC Display Page 1400
5ESS
®
SWITCH DISTINCTIVE REMOTE MODULE 235-200-150
Feburary 2007
Page 2-50 Issue 3.00O
