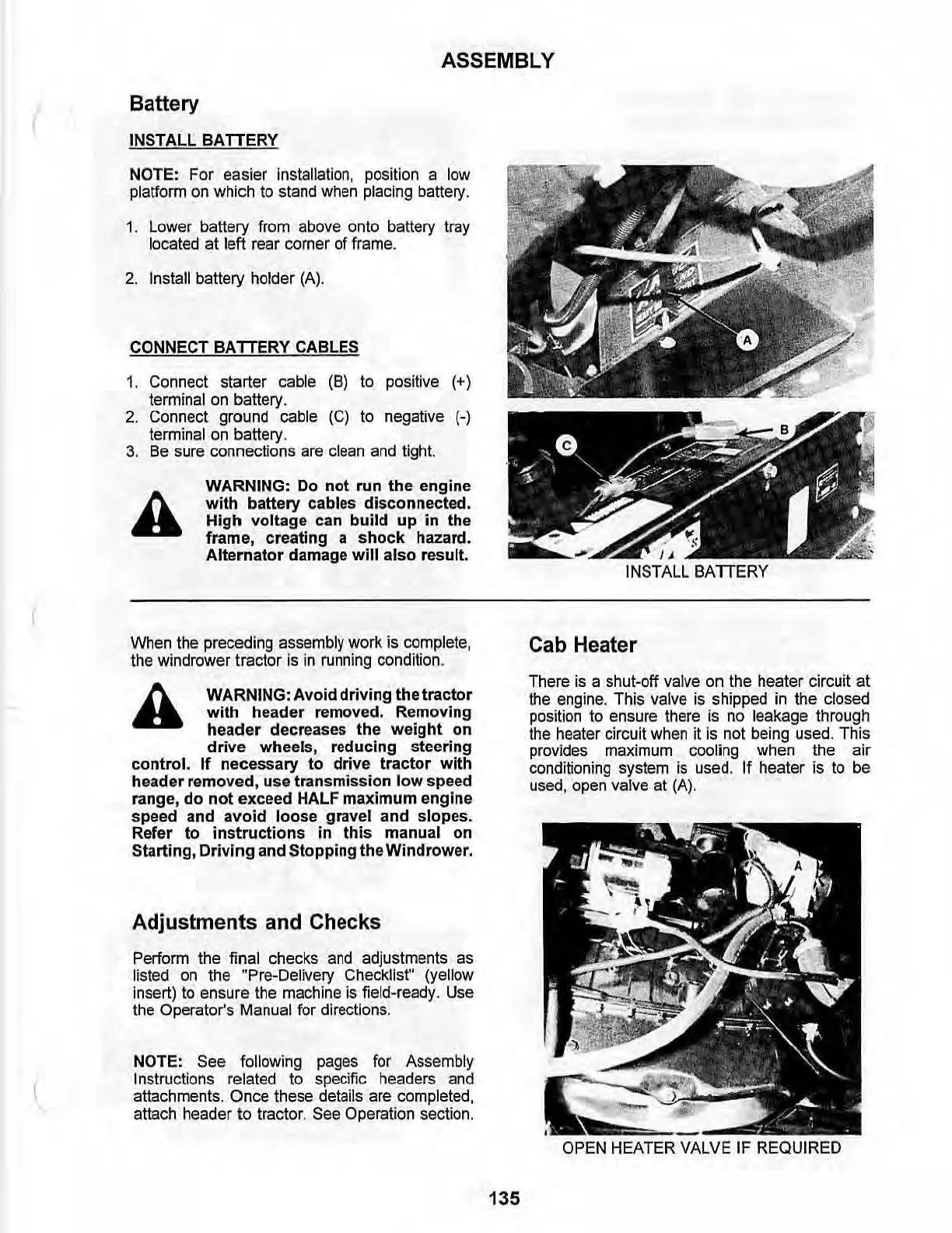

ASSEMBLY
Battery
INSTALL
BATTERY
NOTE: For easier installation,
position
a
low
platform on which to stand when placing battery.
1.
Lower
battery
from
above
onto
battery
tray
located at left rear corner of frame.
2.
Install battery holder (A).
CONNECT
BATTERY
CABLES
1.
2.
3.
Connect
starter
cable
(8)
10
positive (+)
termin
al
on battery.
Connect ground cable (e)
to
negative (-)
terminal on battery.
Be sure connections are clean and tight.
WARNING: Do
not
run
the
engine
with battery cables disconnected.
High voltage can build up in the
frame, creating a
shock
hazard.
Alternator damage
will also result.
When
the
preceding
assembly
work is complete,
the
windrower tractor
is
in
running
condition.
WARNING:
Avoid
driving
the
tractor
with header removed. Removing
header decreases the weight on
drive wheels, reducing steering
control.
If
necessary to drive tractor with
header removed, use transmission
low speed
range,
do
not
exceed HALF maximum engine
speed and avoid loose gravel and slopes.
Refer
to
instructions in this manual on
Starting, Driving and Stopping the Windrower.
Adjustments and Checks
Perform the final checks and adjustments as
listed on the
"Pre-Delivery Checklist" (yellow
insert) to ensure the machine is field-ready. Use
the Operator's Manual for directions.
NOTE: See following pages for Assembly
Instructions related to specific headers and
attachments.
Once
these details are completed,
attach header
to
tractor. See Operation section.
135
I '
I NSTALL BATTERY
Cab Heater
There is a shut-off valve on the
heater
circuit
at
the engine. This valve is shipped in the closed
position to ensure there is no leakage through
the heater circuit when it is not being used. This
provides maximum cooling when the
air
conditioning system is used.
If
heater
is to be
used, open
valve at (A).
OPEN HEATER VALVE IF REQUIRED
