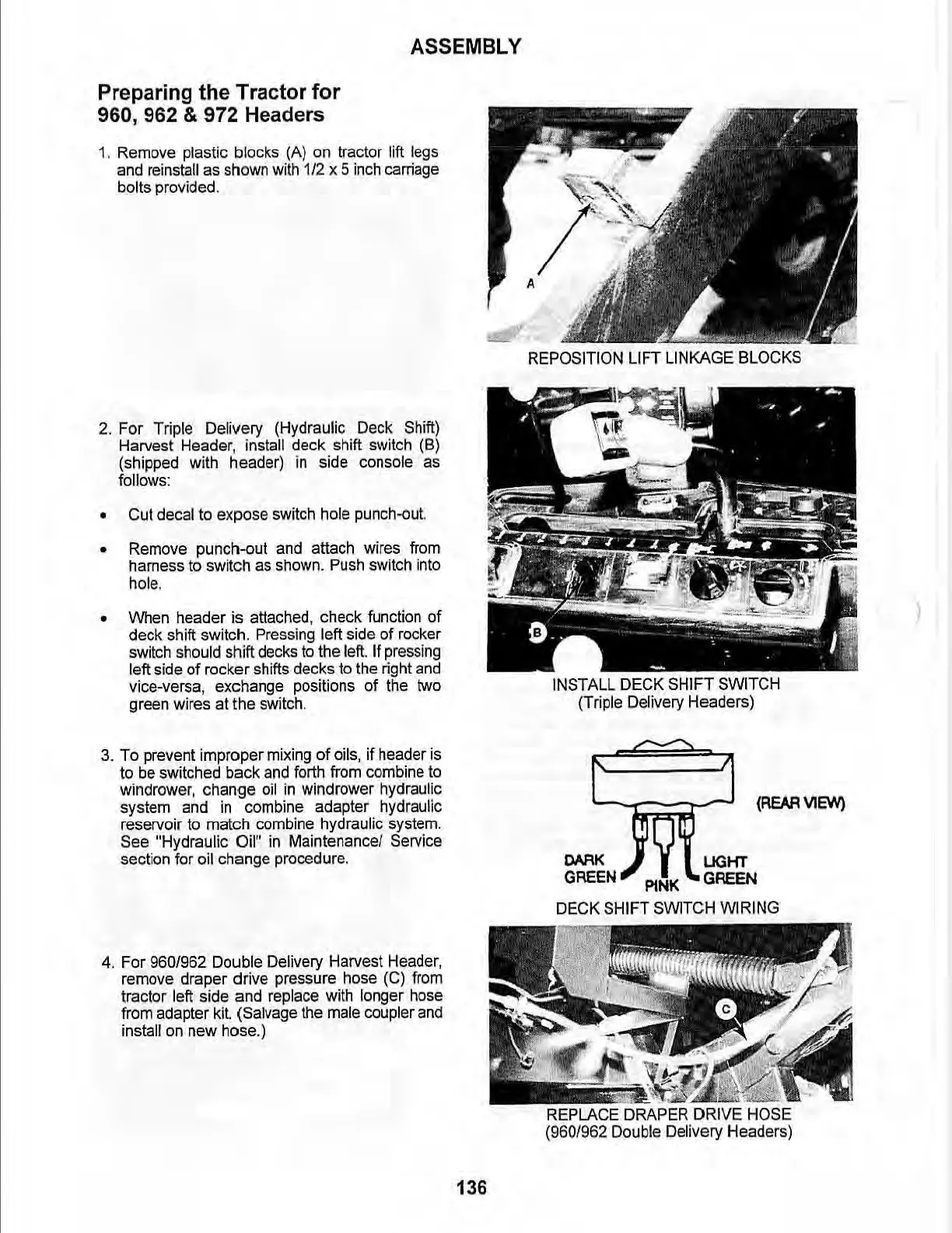

ASSEMBLY
Preparing the Tractor
for
960,
962
& 972 Headers
1. Remove plastic blocks (A) on tractor
lift
legs
and
reinstall
as
shown
with
1/2
x 5
inch
carriage
bolts provided.
2.
For Triple Delivery (Hydraulic
Deck
Shift)
Harvest Header, install deck shift switch (8)
(shipped wi
th
header)
in
side console
as
follows:
•
Cut
decal
to
expose
switch
hole
punch-out.
•
Remove
punch-out
and
attach wires
from
harness to switch as shown. Push switch into
hole
.
• When header is attached, check function
of
deck shift switch. Pressing left side
of
rocker
s
witch
should
shift
decks
to
the
left
.
If
press
i
ng
left side
of
rocker shifts decks to the right and
vice-versa, exchange positions of
the
two
green
wires at the
switch.
3.
To
prevent improper mixing
of
oils,
if
header is
to be switched back and forth from combine to
windrower, change
oil
in
windrower hydraulic
system and
in
combine adapter hydraulic
reservoir to match combine hydraulic system.
See "Hydraulic Oil"
in
Maintenance! Service
section for oil change procedure.
4. For
960/962 Double Delivery Harvest Header,
remove draper drive pressure hose (C) from
tractor left side and replace with longer hose
from adapter
kit
(Salvage the male coupler and
install
on
new hose.)
136
REPOSITION LIFT LINKAGE BLOCKS
INSTALL
DECK SHIFT SWITCH
(Triple Delivery Headers)
(REAR
VIEW)
DARK
.
~
11
LIGHT
GREEN"
pt!K
~
GREEN
DECK SHIFT SWITCH WIRING
K~PU\C
t
DRAPER DRIVE HOSE
(960/962 Double Delivery Headers)
