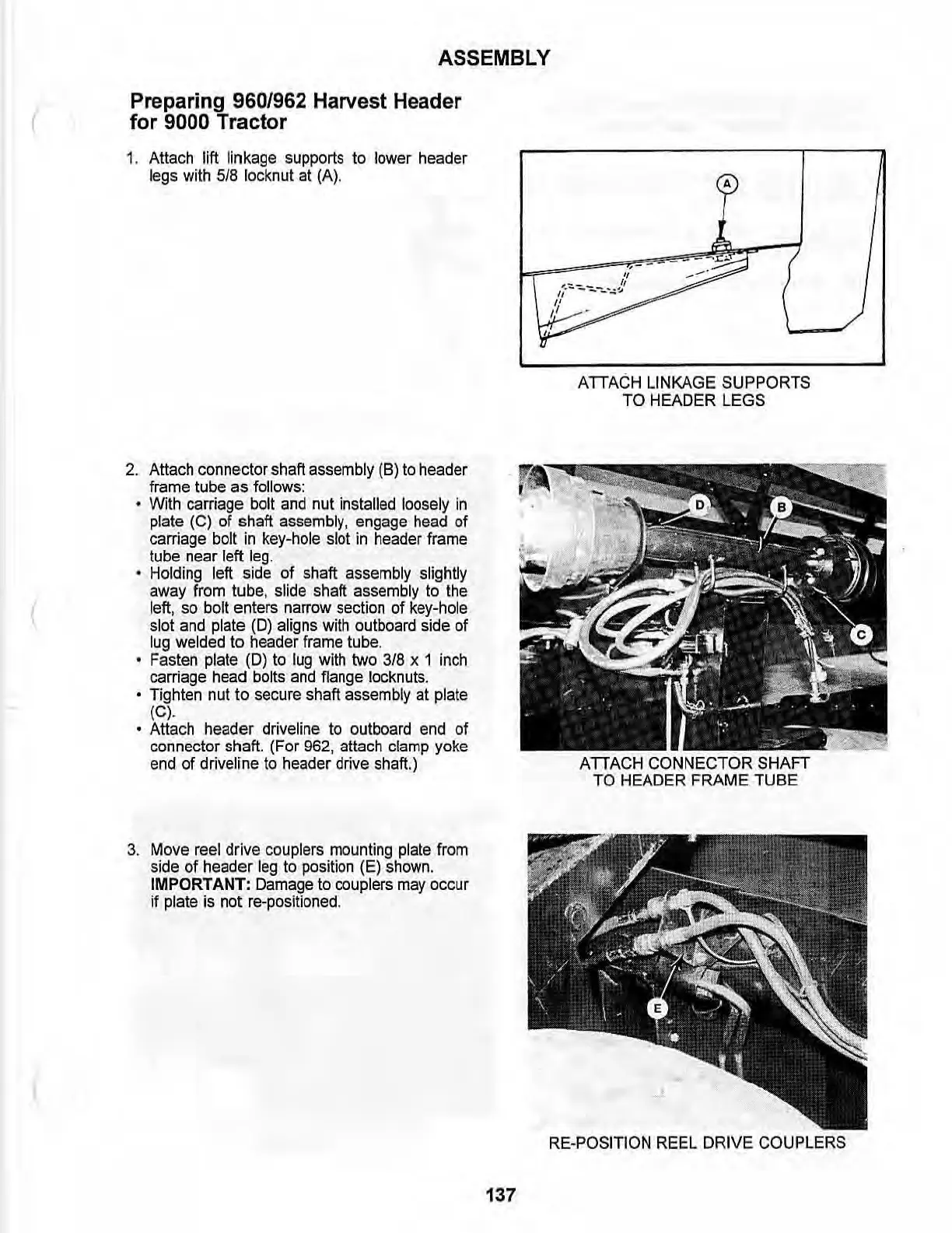

ASSEMBLY
Preparing 960/962 Harvest Header
for
9000 Tractor
1.
Attach lift linkage supports to lower header
legs
with
5/8
lo
ck
nut
at
(A).
2.
Attach connector shaft assembly (8)
to
header
frame tube as
follows:
•
With carriage bolt
and
nut
installed
loosely
in
plate (C) of shaft assembly, engage head
of
carriage
bolt
in
key-hole slot
in
header
frame
tube near left
leg
.
o Holding left side
of
shaft assembly slightly
away from tube, slide shaft assembly
to
the
lett,
so
bolt enters narrow
section
of key-hole
slot
and
plate
(D)
aligns
with
outboard
side
of
lug
welded to header
frame
tube.
• Fasten
plate
(D)
to
lug
with
two
318
x 1
in
ch
carriage
head
bolts
and
flange
locknuts.
• Tighten nut to secure shaft assembly
at
plate
(C).
• Attach header driveline
to
outboard
end
of
connector shaft. (For
962
, attach
clamp
yoke
end
of driveline
to
header drive shaft.)
3. Move
reel
drive couplers
mounting
plate
from
side
of header
leg
to
position
(E)
shown.
IMPORTANT:
Damage
to
couplers
may
occur
if
plate is not re-positioned.
137
A
ATIACH
LINKAGE SUPPORTS
TO HEADER LEGS
ATIACH
CONNECTOR SHAFT
TO
HEADER FRAME TUBE
RE-POSITION REEL DRIVE COUPLERS
