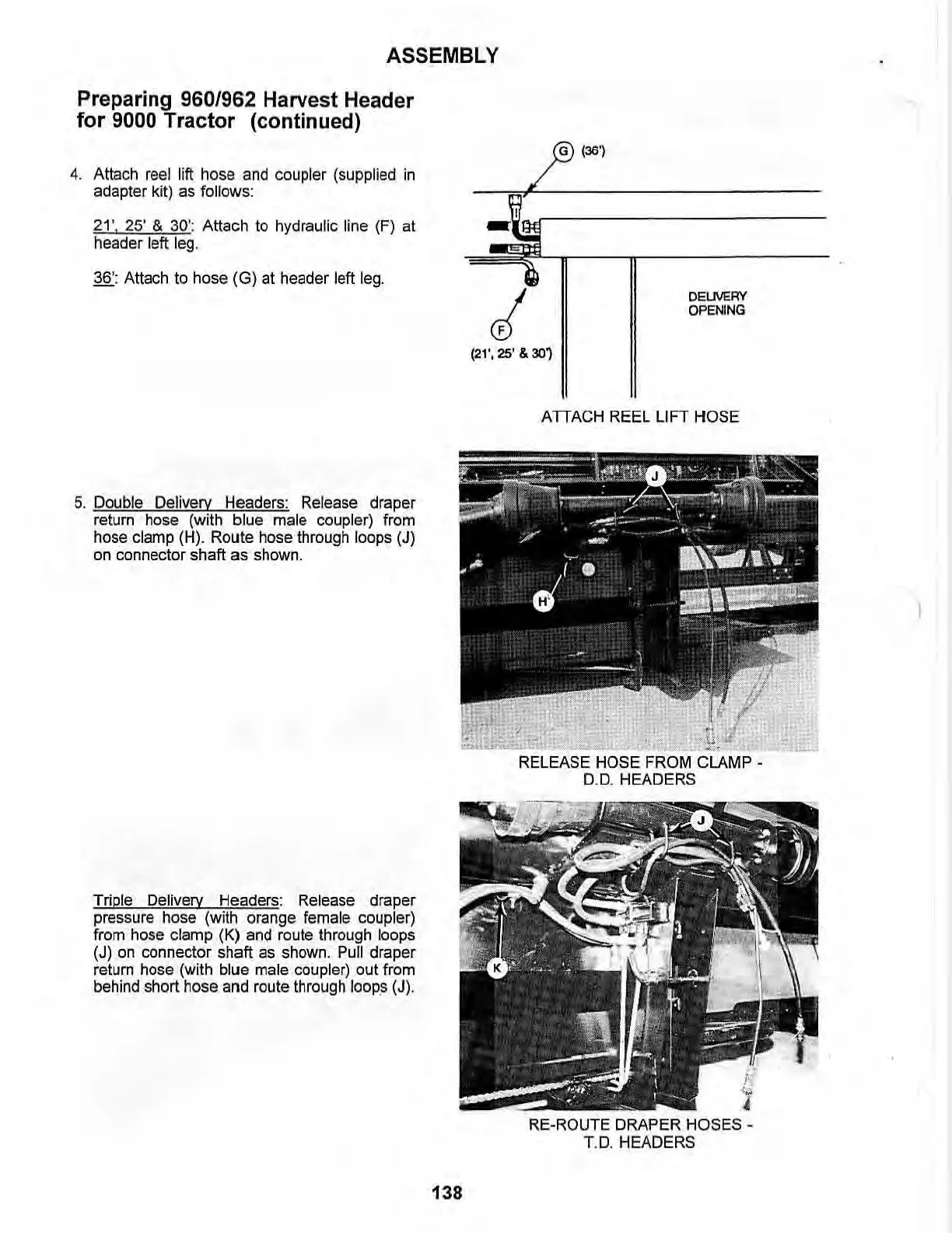

ASSEMBLY
Preparing 960/962 Harvest Header
for
9000 Tractor (continued)
4. Attach
ree
l lift hose and coupler (supplied
in
adapter kit) as follows:
21
', 25' & 30': Attach to hydraulic line (
F)
at
header left leg.
36': Attach to hose (G) at header left leg.
5.
Double
Delivery Headers:
Release
draper
return
hose
(with
blue
male
coupler)
from
hose clamp (H). Route hose through loops (J)
on
connector shaft
as
shown.
Triple Delivery Headers: Release draper
pressure hose (with orange female coupler)
from hose clamp (K) and route through loops
(J)
on
connector shaft as shown. Pull draper
return hose (with blue male coupler) out from
behind
short
hose
and
route
through
loop
,s (J).
138
136')
(21',25'
&
30;
DElNERY
OPENING
An
ACH REEL
LI
FT HOSE
RELEASE HOSE FROM
CLAMP -
0 ,0, HEADERS
RE-ROUTE
DRAPER HOSES -
T.D. HEADERS
To Next Page
