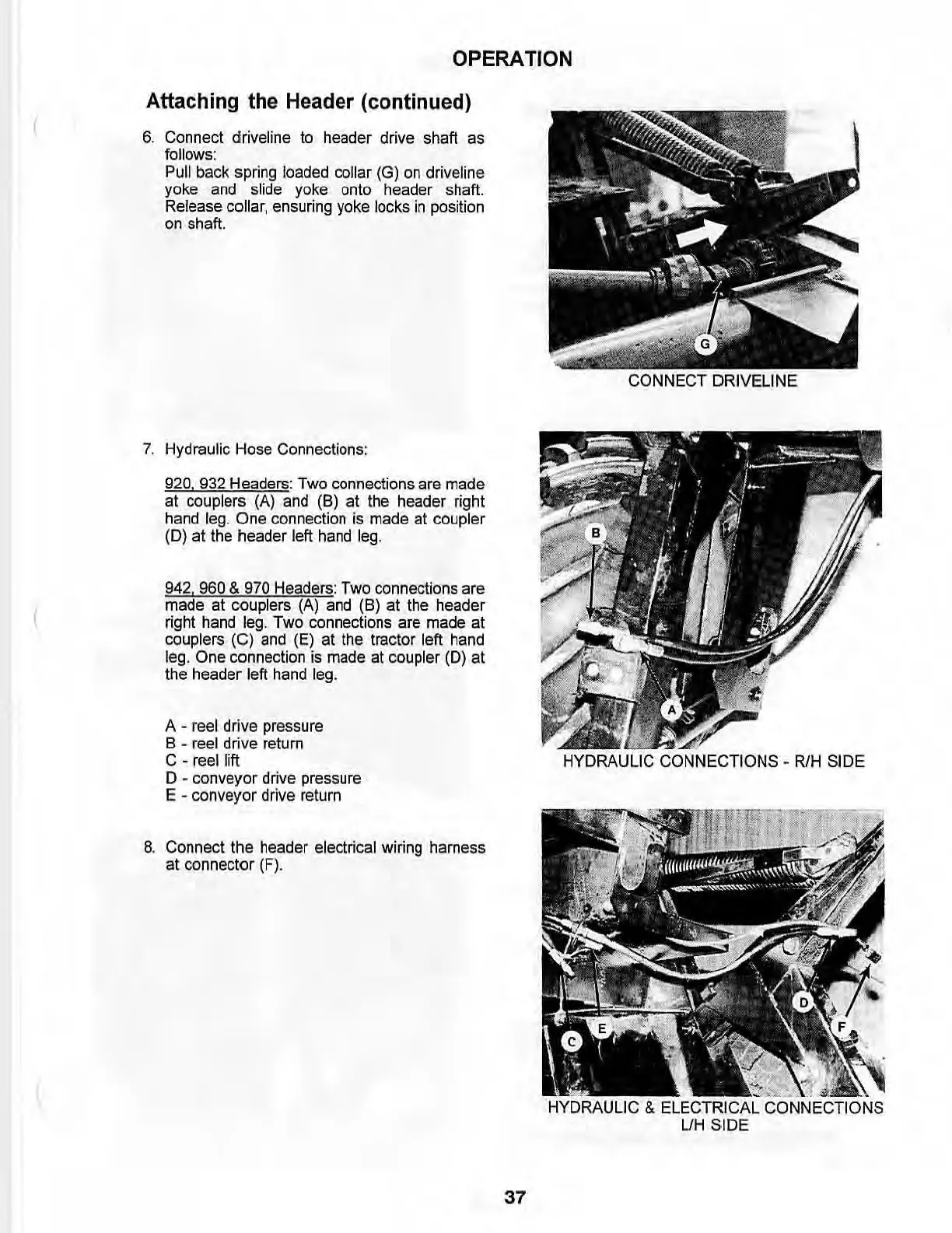

OPERATION
Attaching the Header (continued)
6.
Connect driveline
to
header drive shaft
as
follows:
Pull
back spring loa
ded
collar (G)
on
driveline
yoke
and
slide
yoke
onto
header shaft.
Release coliar, ensuring yoke locks
in
position
on shaft.
7.
Hydraulic
Hose
Connections
:
920,
932
Headers: Two connections are made
at couplers
(Al
and
(8) at the header right
hand
leg
.
One
connection
is
made
at
coupler
(0)
at the header left hand
leg
.
942,
960
&
970
Headers
:
Two
connections
are
made
at
couplers
(A)
and
(8) at
the
header
right hand
leg
. Two connections are made at
couplers
(C)
and
(E)
at
the
tractor left
hand
leg. One connection is made at coupler
(0)
at
the header left hand leg.
A -
reel
drive
pre
ss
ure
B - reel drive return
C -
reel
lift
o -conveyor drive pressure
E - conveyor drive return
8. Connect the header
electrical wiring harness
at connector (F).
37
CONNECT DRIVELINE
HYDRAULIC CONNECTIONS - RlH SIDE
HYDRAULIC & ELECTRICAL CONNECTIONS
UH
SIDE
