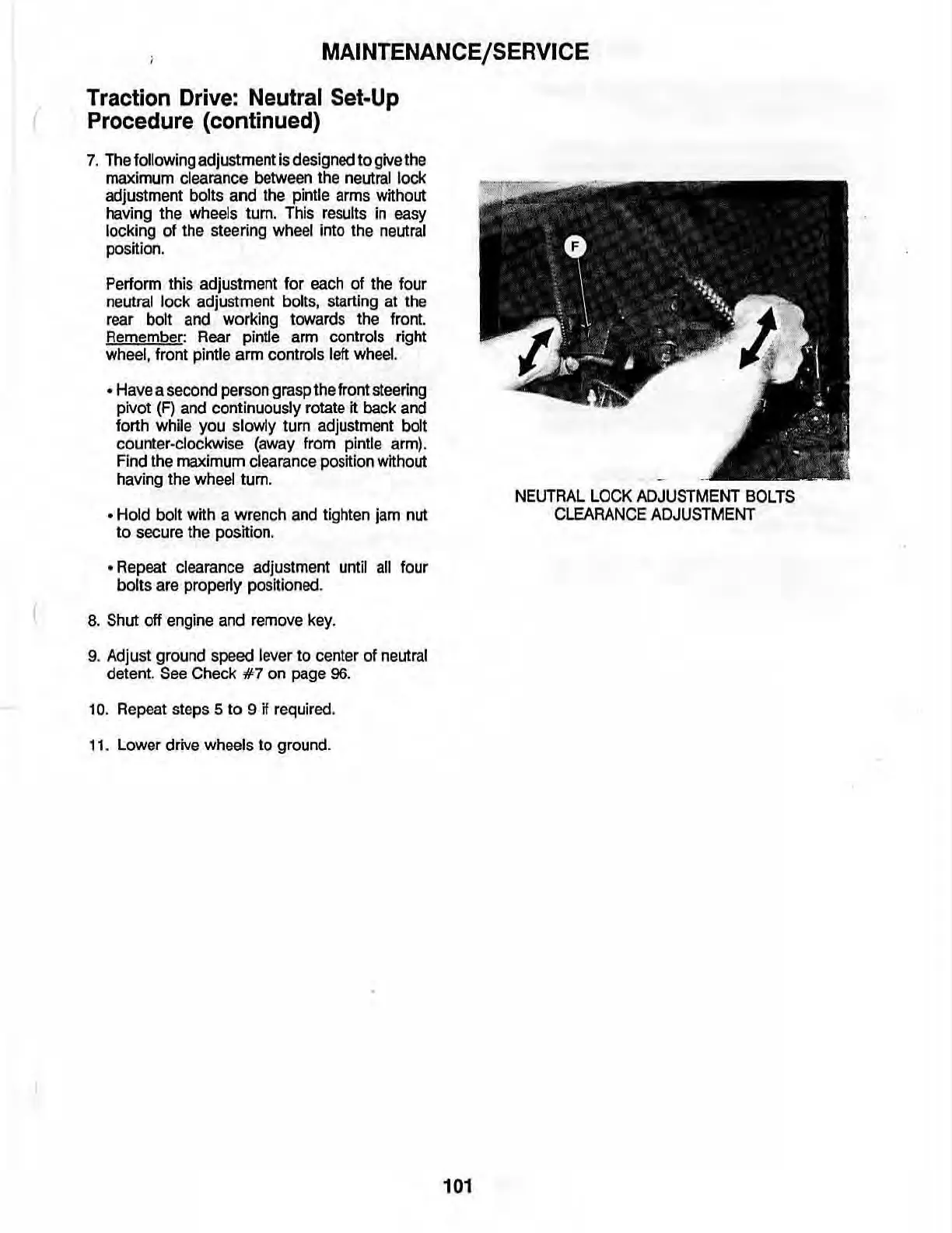

MAINTENANCE/SERVICE
Traction Drive: Neutral Set.Up
Procedure (continued)
7.
The
following adjustment
Is
designed
to
give
the
maximum
clearance
between
the
neutral
lock
adjustment bolts and the pintle arms without
having the wheels tum.
This
results
in
easy
locking of the steering wheel into the neutral
position.
Perform this adjustment for each of the four
neutral lock adjustment bolts, starting at the
rear
bolt
and
working towards the front.
Remember:
Rear
pintle arm controls right
wheel.
front pintle
arm
controls
left
wheel
.
•
Have
a
second
person grasp the front
steering
pivot
(F)
and
continuously
rotate
it
back
and
forth while you slowly tum adjustment bolt
counter·c1ockwise
(away
from
pintle
arm)
.
Find
the
maximum clearance position without
having the wheel tum.
• Hold bolt with a wrench and tighten jam nut
to
secure the position.
• Repeat clearance adjustment until
all
four
bolts are properly positioned.
8.
Shut off engine and remove key.
9. Adjust ground speed
lever
to
center of neutral
detent
See
Check
#7
on page
96.
10
. Repeat steps 5
to
9
if
required,
11.
Lower drive wheels to ground.
101
NEUTRAL
LOCK
ADJUSTMENT
BOLTS
CLEARANCE
ADJUSTMENT
