169441 170 Revision D

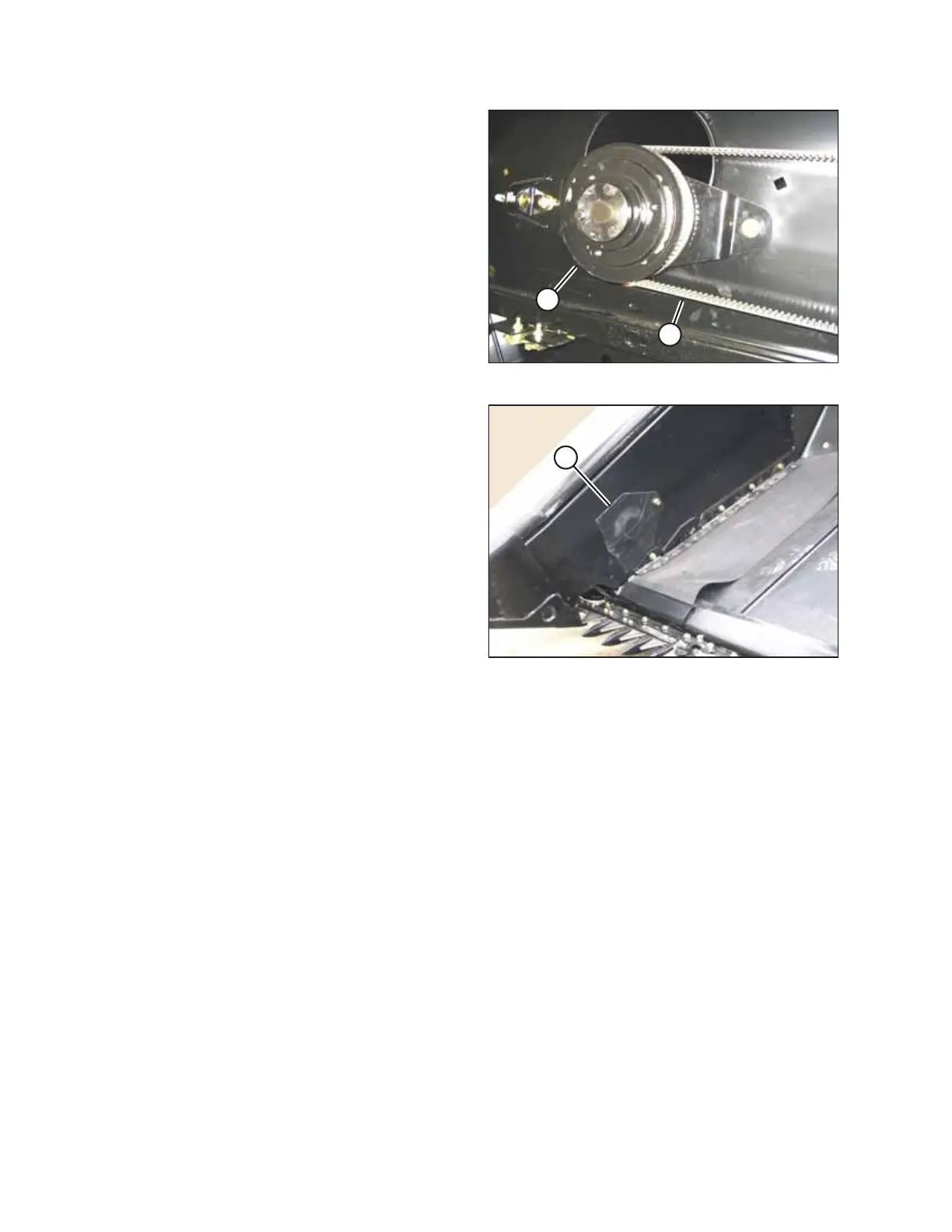

Figure 4.101: Right Knife Drive Pulley
4. Route knife drive belt (A) around drive pulley (B).
5. Tension the knife drive belt. For instructions, refer to
Tensioning Timed Knife Drive Belts, page 160.
Figure 4.102: Access Cover on Right Endsheet
6. Reinstall access cover (A) and secure it with a bolt.
7. Close the endshield. For instructions, refer to 4.3.2 Closing
Hinged Endshields, page 117.
Adjusting Double-Knife Timing
D60 Draper Headers, 10.7 m (35 ft.) and smaller, with timed double knives, require that knives are properly timed to move
in opposite directions.
1. Shut down the engine, and remove the key from the ignition.
2. Open both endshields. Refer to 4.3.1 Opening Hinged Endshield, page 116.
3. Remove the knife drive belt on the right side of the header. For instructions, refer to Removing Timed Knife Drive Belt –
Right Side, page 168.
MAINTENANCE AND SERVICING
