MacDon D50 - Page 73

169441 61 Revision D
ϭϬϰϬϭϮϳ
A
B
C
D
E

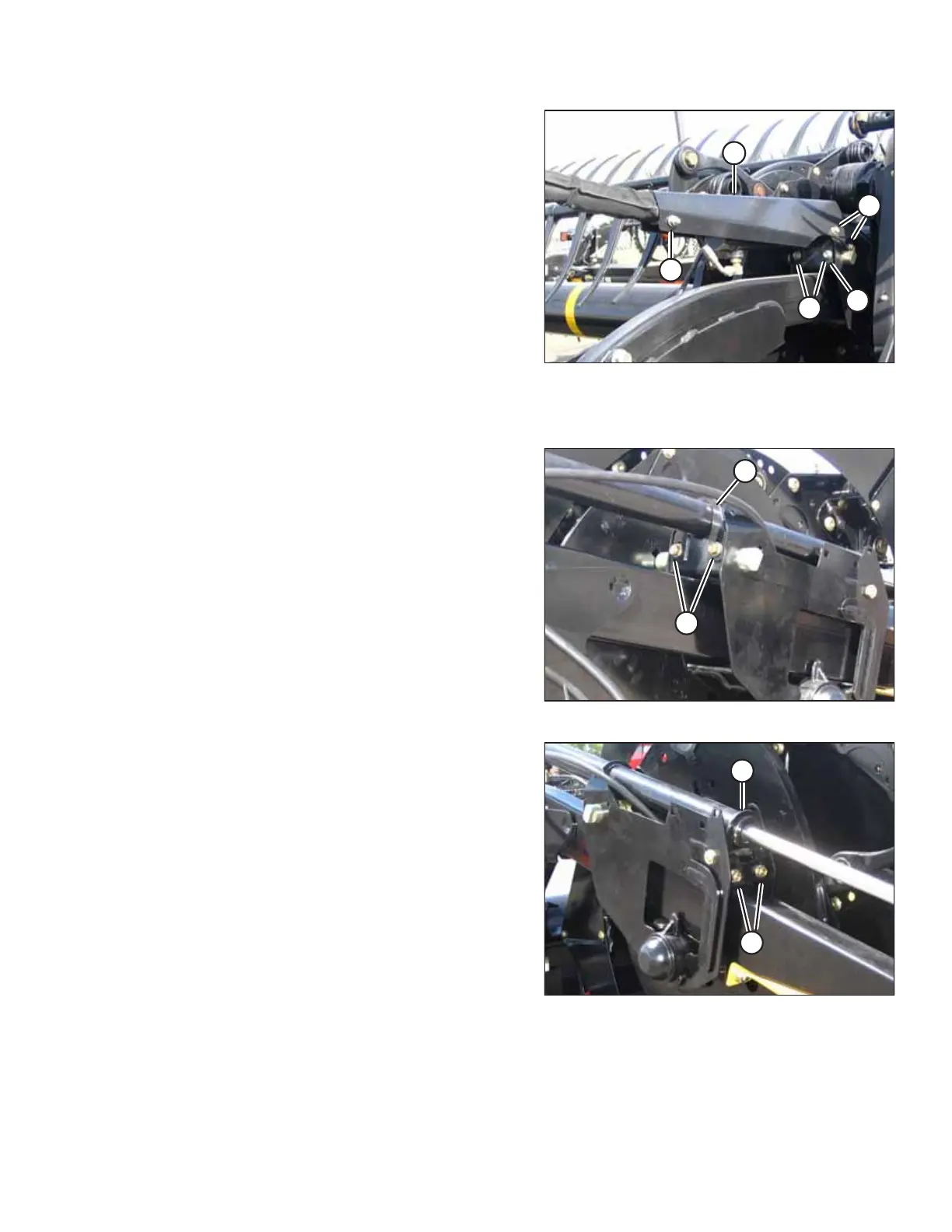

Figure 3.48: Center Reel Arm Cylinder
9. Reposition the hoses and reinstall hose shield (C) with
bolts (B).
10. Position the hoses inside hose shield (C), and reinstall bolt
and nut (A).
11. Reinstall aft support plate (D) with bolts (E).
Repositioning the right arm cylinder
ϭϬϰϬϭϮϴ
A
B
Figure 3.49: Right Reel Arm Cylinder
12. Remove bolts (A) that secure aft plate (B), and then remove
the aft plate.
ϭϬϰϬϭϮϵ
A
B
Figure 3.50: Right Reel Arm Cylinder
13. Remove bolts (A) so that front support (B) is free to
move up.
OPERATION
