169441 62 Revision D

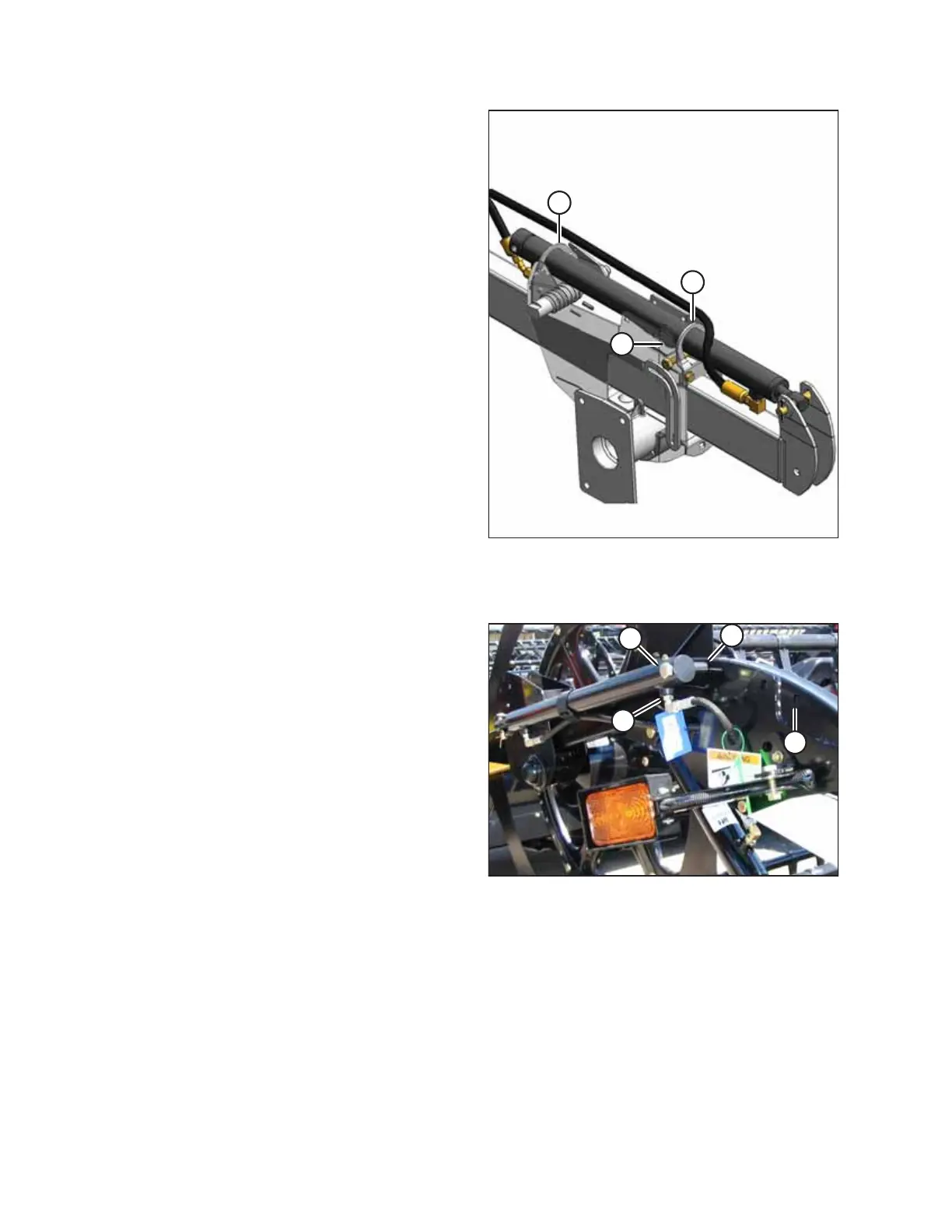

Figure 3.51: Right Reel Arm Cylinder
14. Lift the aft end of the cylinder out of the support assembly,
and retract the cylinder so that cylinder center port
fitting (A) engages the support assembly.
NOTE:
Loosen a hose fitting to allow movement of the cylinder
rod. Be sure to retighten the hose fitting after cylinder
installation.
15. Reinstall plates (B) and (C) with previously removed bolts.
Repositioning the left reel arm cylinder
Figure 3.52: Left Reel Arm Cylinder
16. Loosen fitting (A) to allow it to rotate when the cylinder is
repositioned.
17. Remove bolt (B), nut, and spacer (C) that secure the
cylinder to the left reel arm.
18. Extend the cylinder so that the mounting hole lines up with
new location (D) as shown.
NOTE:
Loosen a hose fitting to allow movement of the cylinder
rod. Be sure to retighten the fitting after cylinder
installation.
19. Reinstall bolt (B) and nut with spacer (C).
20. Tighten the fitting.
21. Check the reel clearance to the backsheet, upper cross
auger (if installed), and reel braces.
22. Adjust the reel tine pitch if necessary. For instructions, refer
to 3.12.10 Reel Tine Pitch, page 63.
