ASSEMBLY/SETUP IN STRUC TIONS

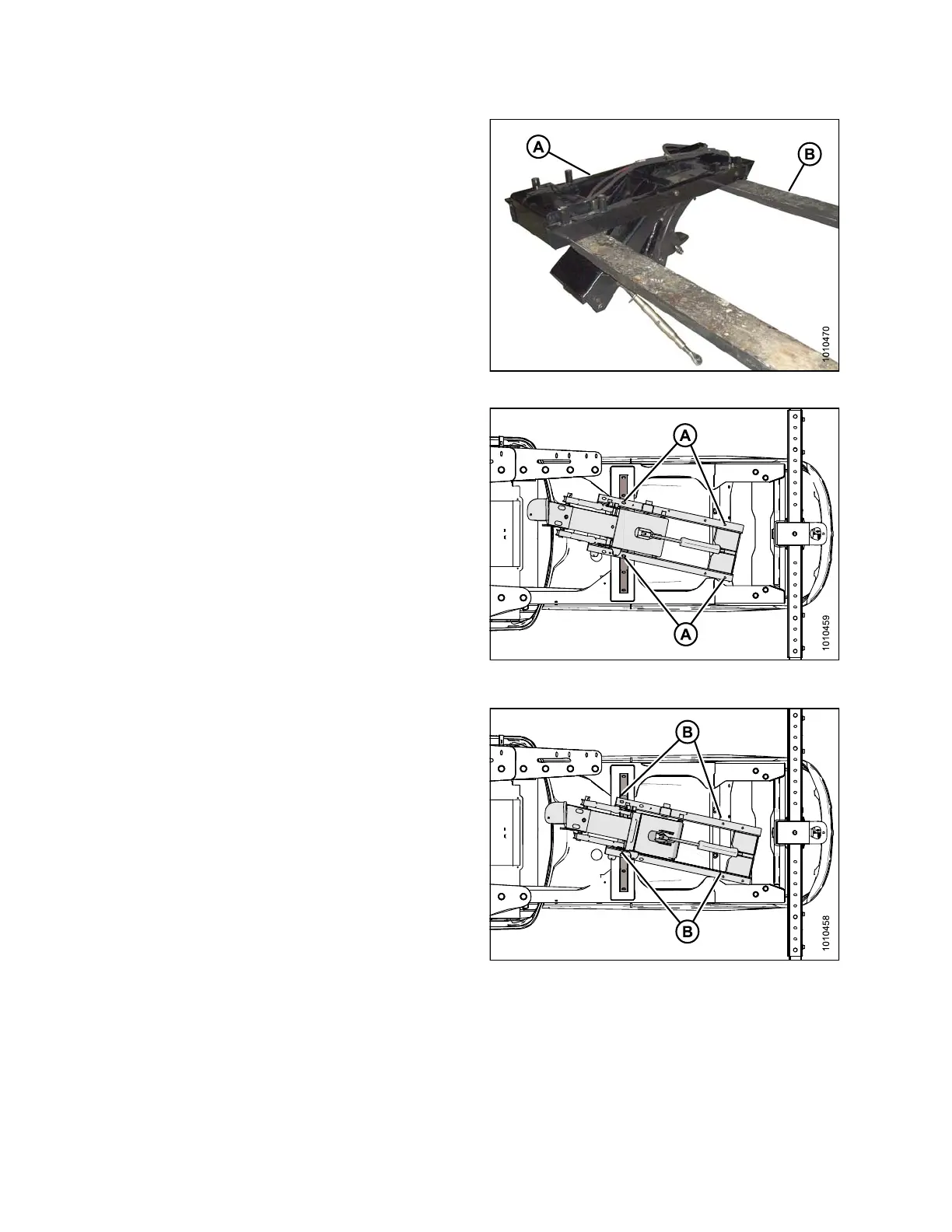

8. Support linkage assem bly (A) with a forklift.
NOTE:
Make sure the forks (B) do not lift against the
cylinder fitting.
Figure 2.30: DWA Linkage
9. Align the DWA lin ka ge with the four bolts in the
windrower frame.
• For R-Series header: mount the linkage in the most
forward position (A)
• For A-Series or D-Series header: mount the linkage
in the most rearward position (B)
Figure 2.31: Linkage Forward
Figure 2.32: Linkage Rearward
214049
24
Revision A
