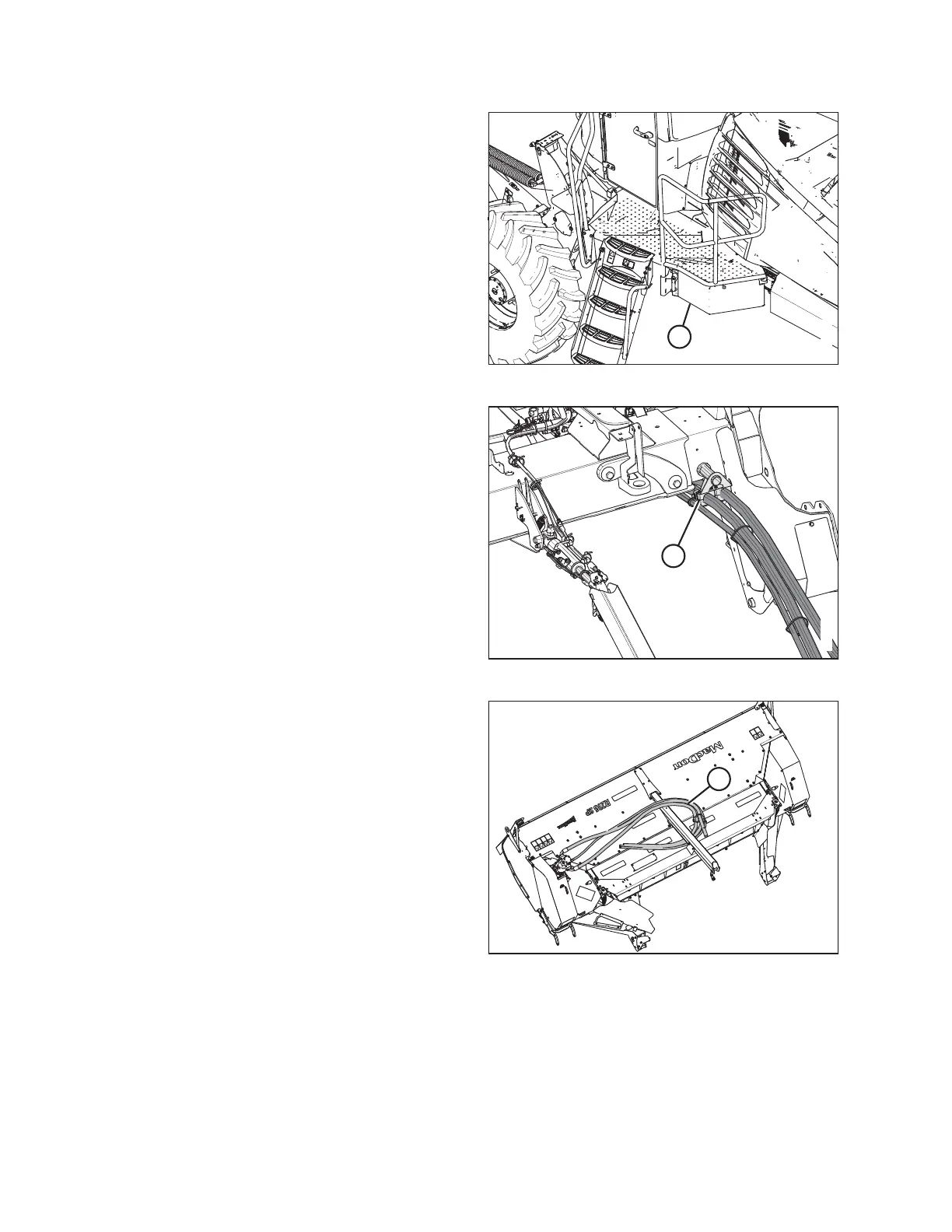

Figure 5.237: Left Cab-Forward Platform
8. Pull platform (A) towards the cab until it stops and the latch
is engaged.
Figure 5.238: Header Hoses on Windrower
9. Remove hose support (A) and hose bundle from
windrower frame.
Figure 5.239: Hose Bundle Storage Position
10. Rest hydraulic hose bundle (A) on header for storage
as shown.
ATTACHING A HEADER TO THE WINDROWER
To Next Page
