215620 225 Revision A

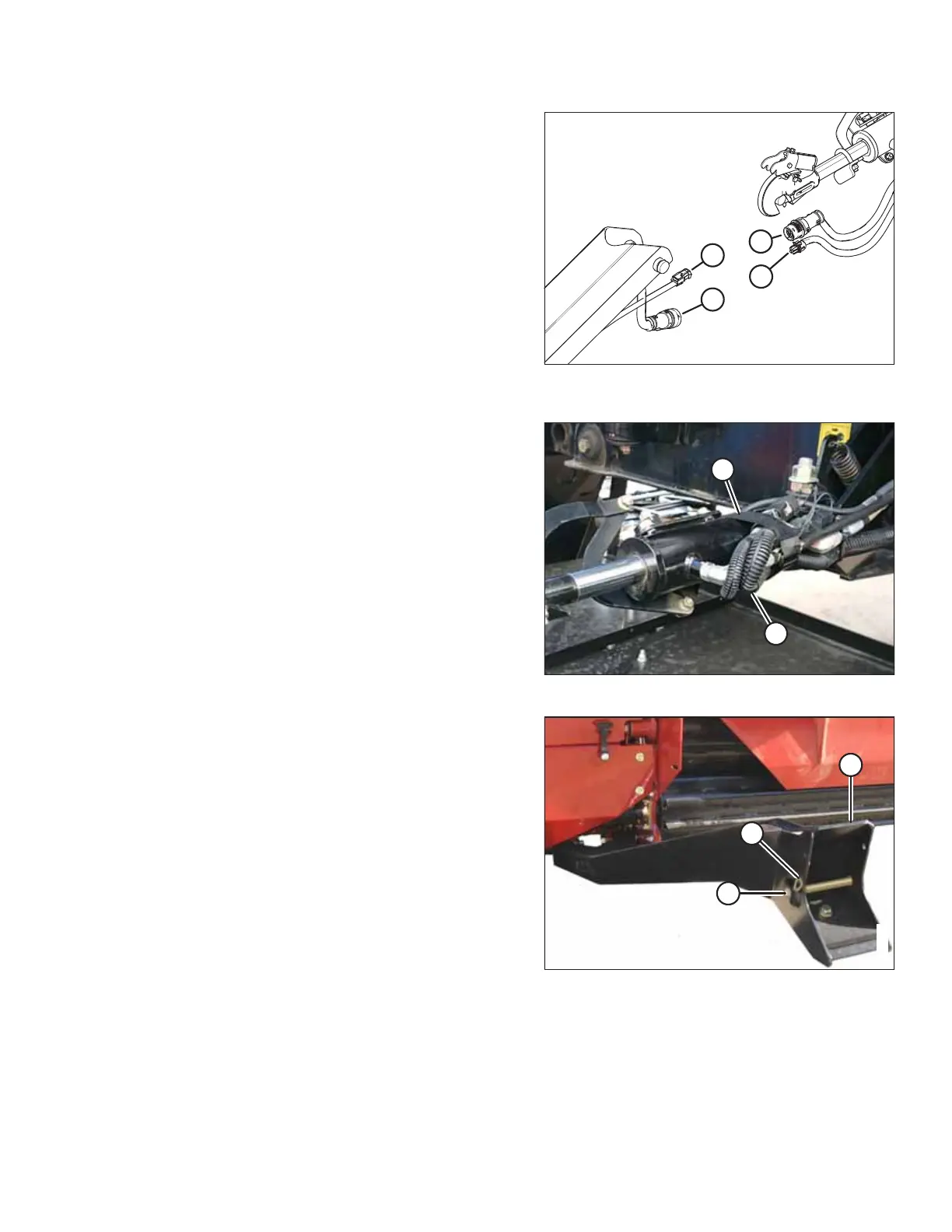

Figure 5.240: Electrical Harness Connection at
Center-Link
11. Disconnect main header harness (A) from adapter
harness (B).
12. Standard headers equipped with optional electric baffle
control kit: Disconnect electric baffle control harness (C)
from adapter harness (D).
13. Grass seed: Disconnect actuator harness (C) from adapter
harness (D).
Figure 5.241: Adapter Harness
14. Secure adapter harness (A) on the center link with an
adjustable strap (B).
Figure 5.242: Header Supports
15. Remove hairpin (B) from clevis pin (A). Remove clevis pin
from header support (C) on both sides of header.
ATTACHING A HEADER TO THE WINDROWER
To Next Page
