215620 61 Revision A

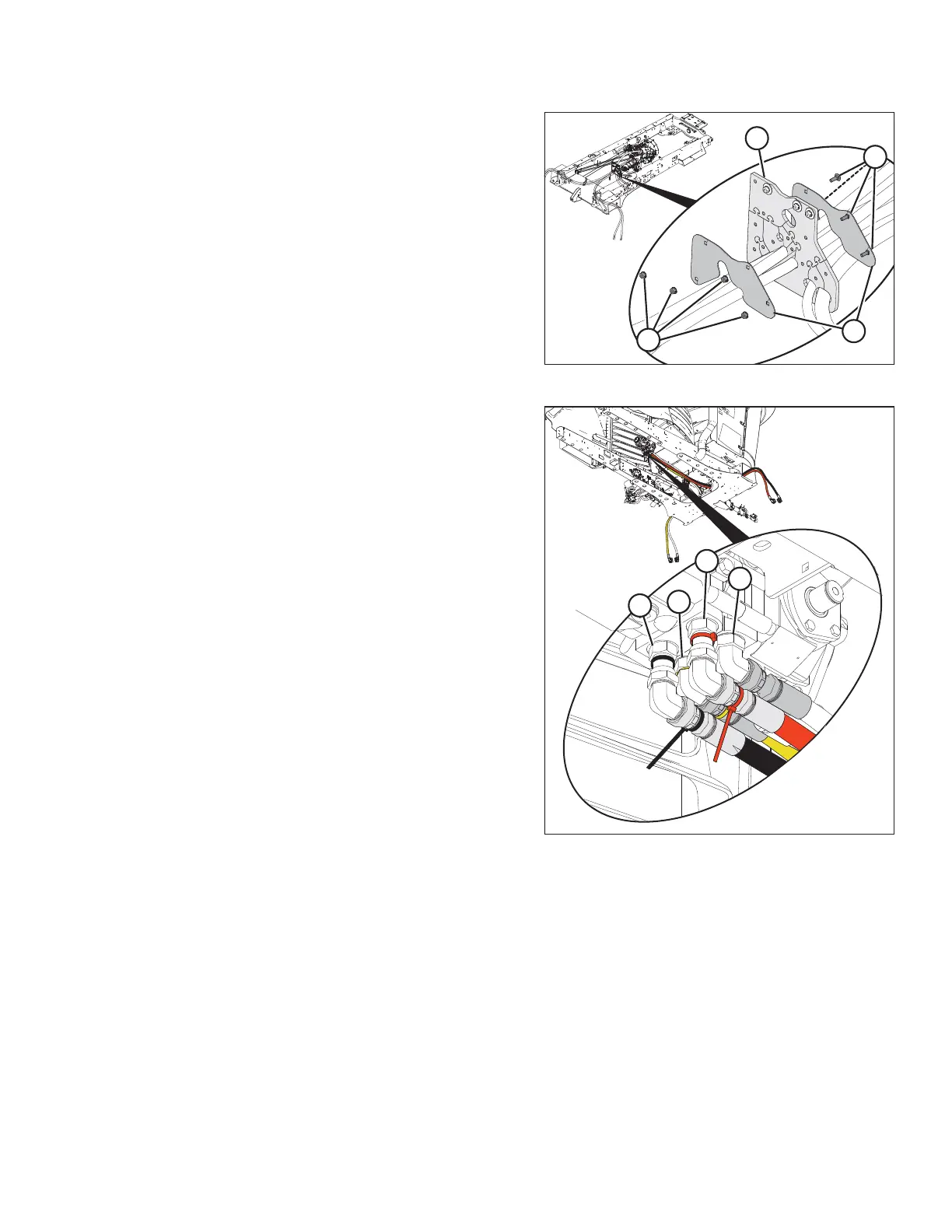

Figure 3.38: Hose Support at Pump Stack
8. Remove nuts and bolts (A), and remove routing clamp (B)
from hose support (C) in front of the pump stack.
9. Route the traction drive hoses through the hose support,
position them so that they do NOT sag below the
windrower frame, and then reinstall the routing clamp.
Figure 3.39: Traction Drive Pump
10. Connect the hoses from the wheel drive motors to the
traction drive pump as follows:
a. Connect the hose from port B on the right wheel motor
to port (A) (the one with extended adapter and marked
with a black cable tie).
b. Connect the hose from port A on the right wheel motor
to port (B) (the one with extended adapter and marked
with a red cable tie).
c. Connect the hose from port B on the left wheel motor
to port (C) (the one marked with a yellow cable tie).
d. Connect the hose from port A on the left wheel motor
to port (D) (the one with no cable tie).
ASSEMBLING WINDROWER
