215620 65 Revision A

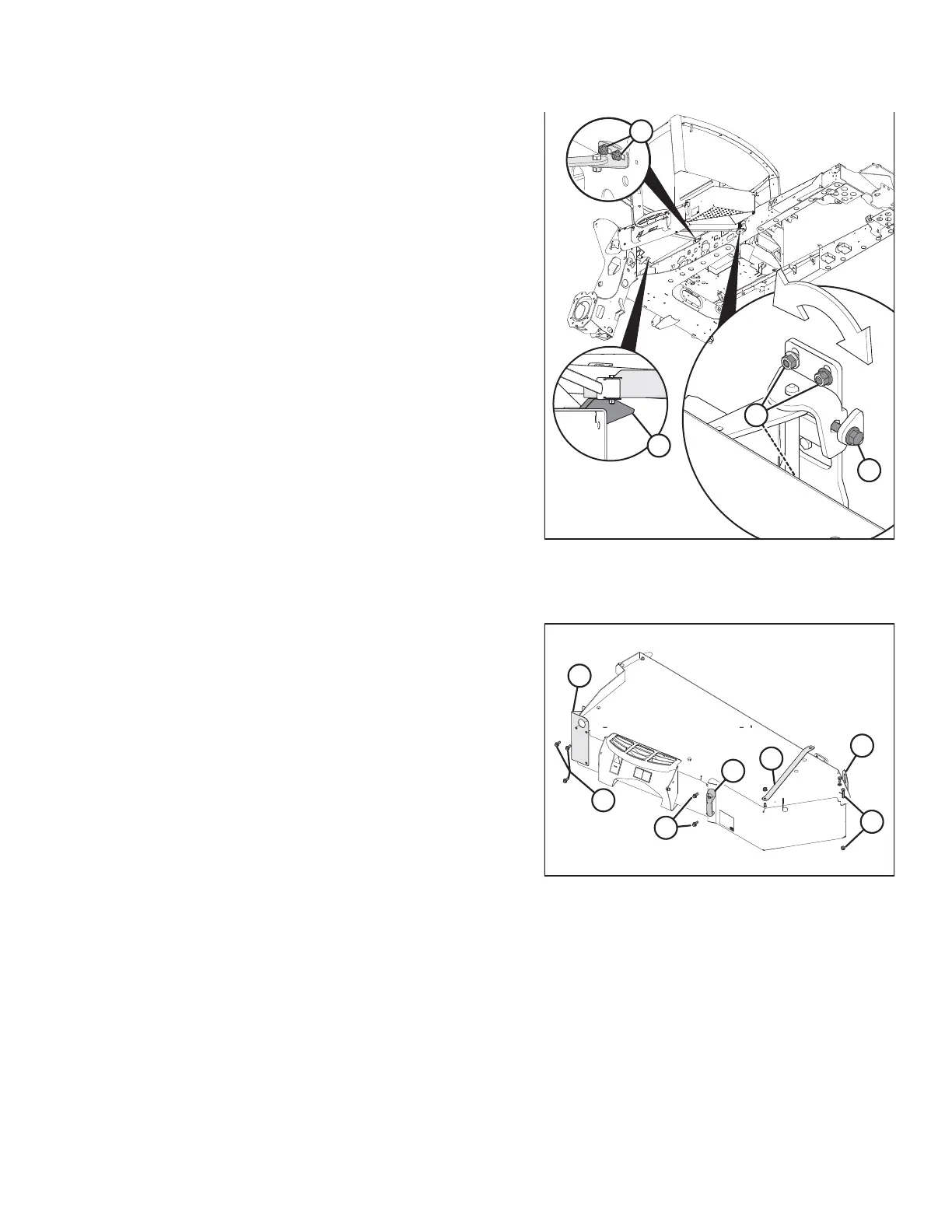

Figure 3.47: Left Platform Angle Adjust
9. Adjust the platform angle using bolt (A) until platform just
touches front support (B) when closing.
10. After adjustment is complete, torque three platform
bracket bolts (C) to 68.5 Nm (50.5 lbf·ft), and two linkage
bolts (D) to 39.5 Nm (29 lbf·ft).
Installing left platform handrails
Figure 3.48: Left Platform Assembly
11. Remove shipping strap (A) and retain the hardware.
12. Remove rear lifting bracket (B) and discard the hardware.
13. Ensure toolbox door (C) is locked, and remove long hinge
bolt and nut (D). Retain the hardware.
14. Remove and retain two bolts (E) next to the toolbox.
15. Remove forward lifting bracket (F) and retain three
bolts (G).
ASSEMBLING WINDROWER
