215620 73 Revision A

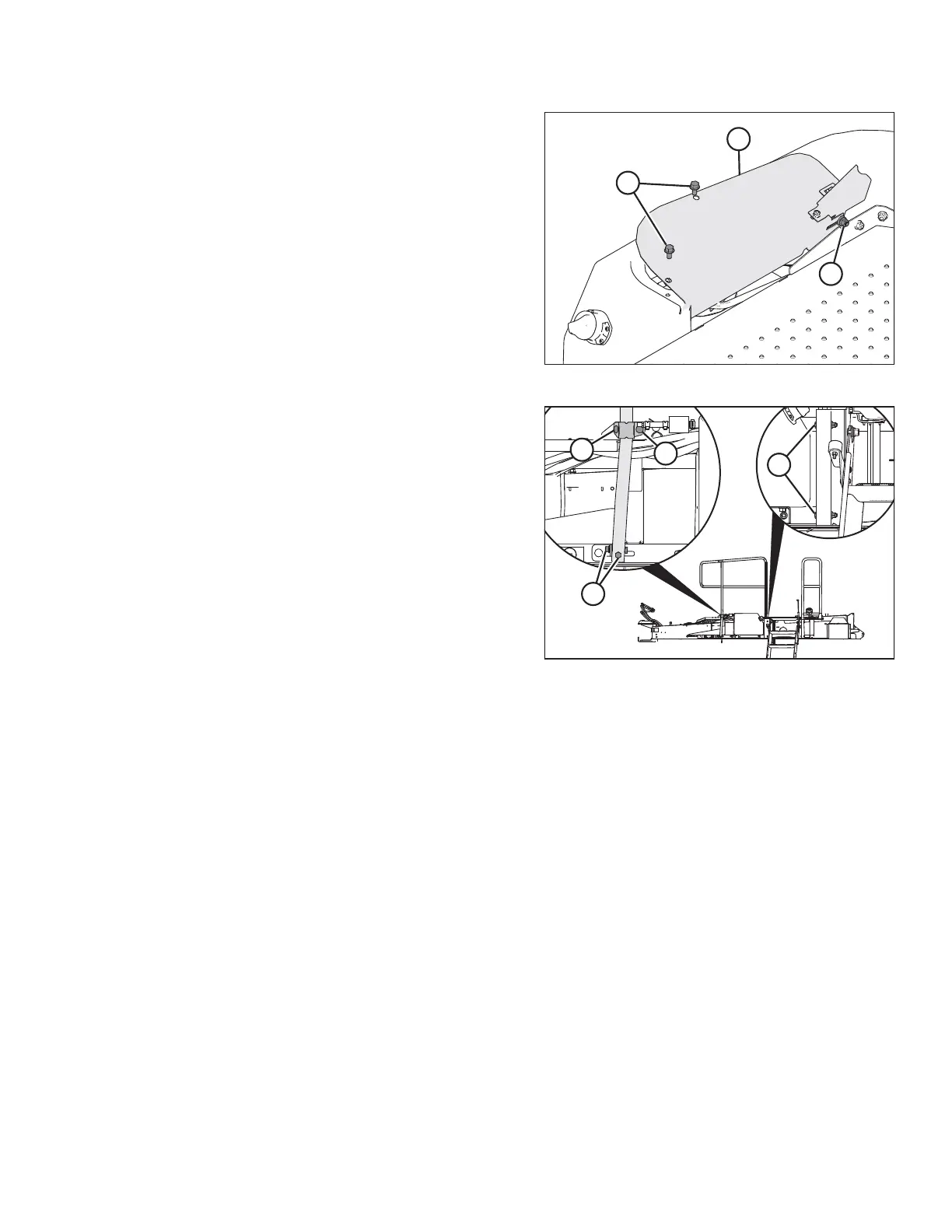

Figure 3.63: Diesel Exhaust Fluid (DEF) Head Cover
27. Remove two top bolts (A) and loosen rear bolt (B) from DEF
head cover (C).
28. Lift the cover toward the windrower and remove.
29. Retrieve the rear handrail. Remove all hardware (six nuts
and bolts) and retain for installation.
Figure 3.64: Rear Handrail – Right Platform
30. Insert the rear handrail into the channel next to the DEF
tank and the channel left of the steps.
NOTE:
Fuel tank hidden to show the hardware locations.
31. Secure the bottom of the rail with two nuts and bolts (A).
32. Secure the rail near the DEF head with two nuts and
bolts (B).
33. Secure the rail in the channel left of the steps with two nuts
and bolts (C).
34. Torque all handrail hardware to 35 Nm (26 lbf·ft).
ASSEMBLING WINDROWER
