5.18.4.2 Display Warnings

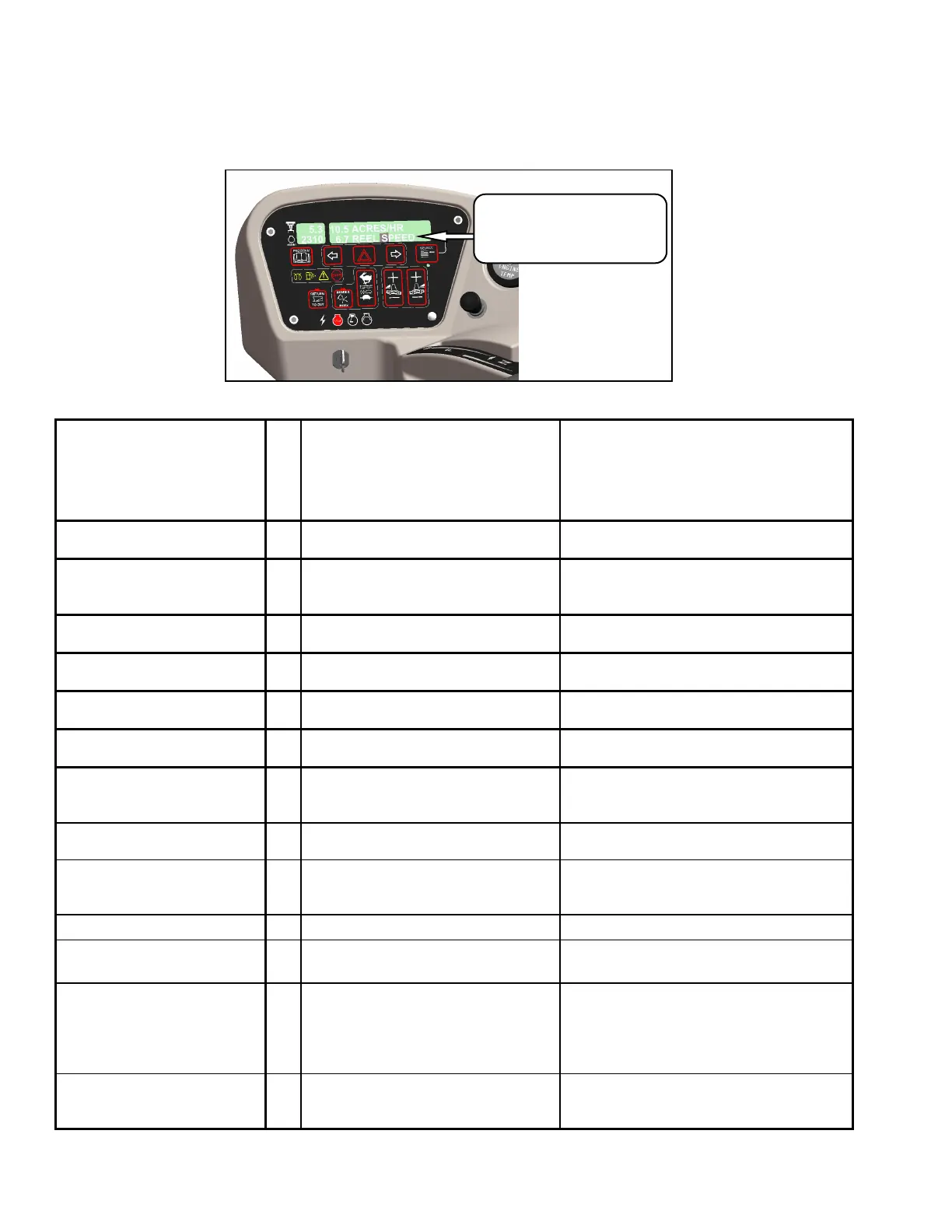

DISPLAY WARNINGS AND ALARMS
DISPLAY
ALARM TONE DESCRIPTION
BRAKE OFF
Engine Running, Brake Solenoid Not
Activated.
BRAKE ON
Short Beep With Each Flash.
GSL Out Of N-Detent But Interlock
Switch Remains Closed To Apply
BRAKE SW FAILURE
Ignition On/Engine Not Running, Brake
Switch and Relay Closed.
CAB-FORWARD SW ON/
ENG FORWARD SW ON
Messages Flash Alternately. Both Seat Switches Activated.
CENTER STEERING
Beeps At 2 Per Second.
GSL or Interlock Switches Not Closed
With Key On/Engine Off.
DISENGAGE HEADER
RE-ENGAGE <1800RPM>
None R80/R85 – Engine RPM Above 1800.
ENGINE AIR FILTER
Single Loud Tone For 10 Seconds.
Repeats Every 30 Minutes Until
Engine Air Filter Requires Servicing.
ENGINE OIL PRESSURE
Continuous Loud Tone Until Oil
Pressure Is Regained.
Low Engine Oil Pressure.
ENGINE TEMPERATURE
Ongoing Intermittent Moderate
Tone Until Temperature Is Below
Engine Temperature Over 230F.
(110C.)
None Normal
DISENGAGE HEADER
None
Header Switch Is In On Position When
Ignition Switch Turned On.
HEADER OIL PRESS
Continuous Loud Tone Until Oil
Pressure Is Regained.
Low Header Charge Oil Pressure.
Header Shuts Down Automatically.
Header On Switch Must Be Moved To
Off Position and Then To On Position
HYDRAULIC FILTER
Single Loud Tone For 10 Seconds.
Repeats Every 15 Minutes Until
Excessive Pressure Increase Across
Hydraulic Oil Filter.
Informs Operator of Abnormal
Windrower Conditions
See Table Below
