WINDROWER OPERATION
Form 169469/169470/169471 75 Revision C

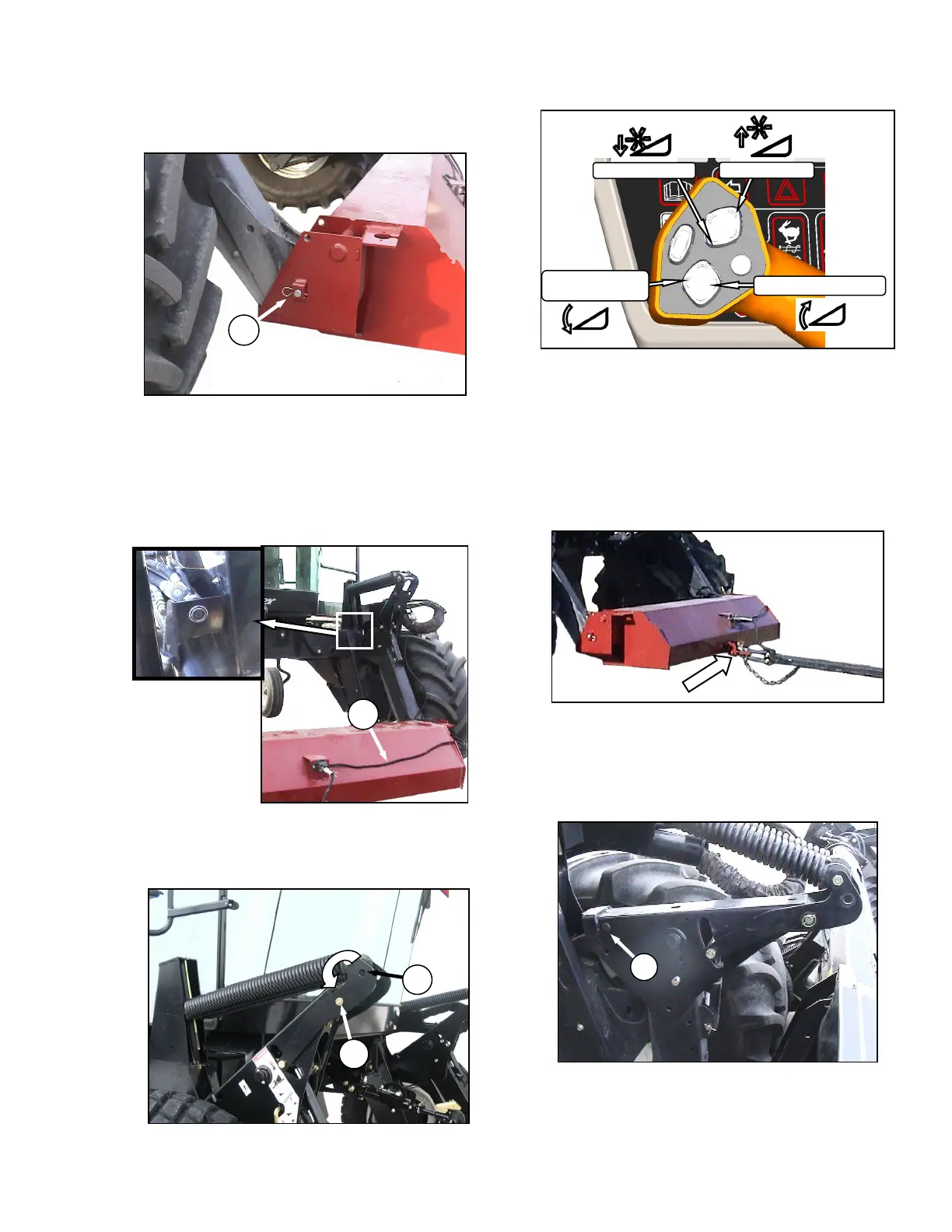

o. Drive windrower so that windrower lift arms are
positioned into the weight box pockets.
p. Raise lift arms slightly and install locking pins
(D) into pockets and thru windrower header lift
linkages. Secure with hairpin.
NOTE
Pins (D) were previously removed from
the header lift linkage lower end.
q. Route the weight box harness (R) to the
electrical connector at the left side lift linkage
and connect harness to connector.
r. Raise lift arms fully, shut off engine, and remove
key from ignition.
s. Move float pins from storage location (C) to
engaged position (B).
t. Start engine and press HEADER DOWN switch
on GSL to lower lift arms until the lift arm “floats”
up away from the linkage at the rear of the lift
arm.
u. Attach slow speed transport hitch to the weight
box tongue with drawbar pin (secure using lynch
pin). Attach safety chain.
v. Connect hitch harness to electrical socket at
front of weight box.
w. Remove the temporary lift pins (A) (should be
loose in lift arm) and place into storage holes on
weight box.
