WINDROWER OPERATION
Form 169469/169470/169471 76 Revision C
6.3.8.2.2 From Transport Mode To Field
Operation
DANGER
Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.

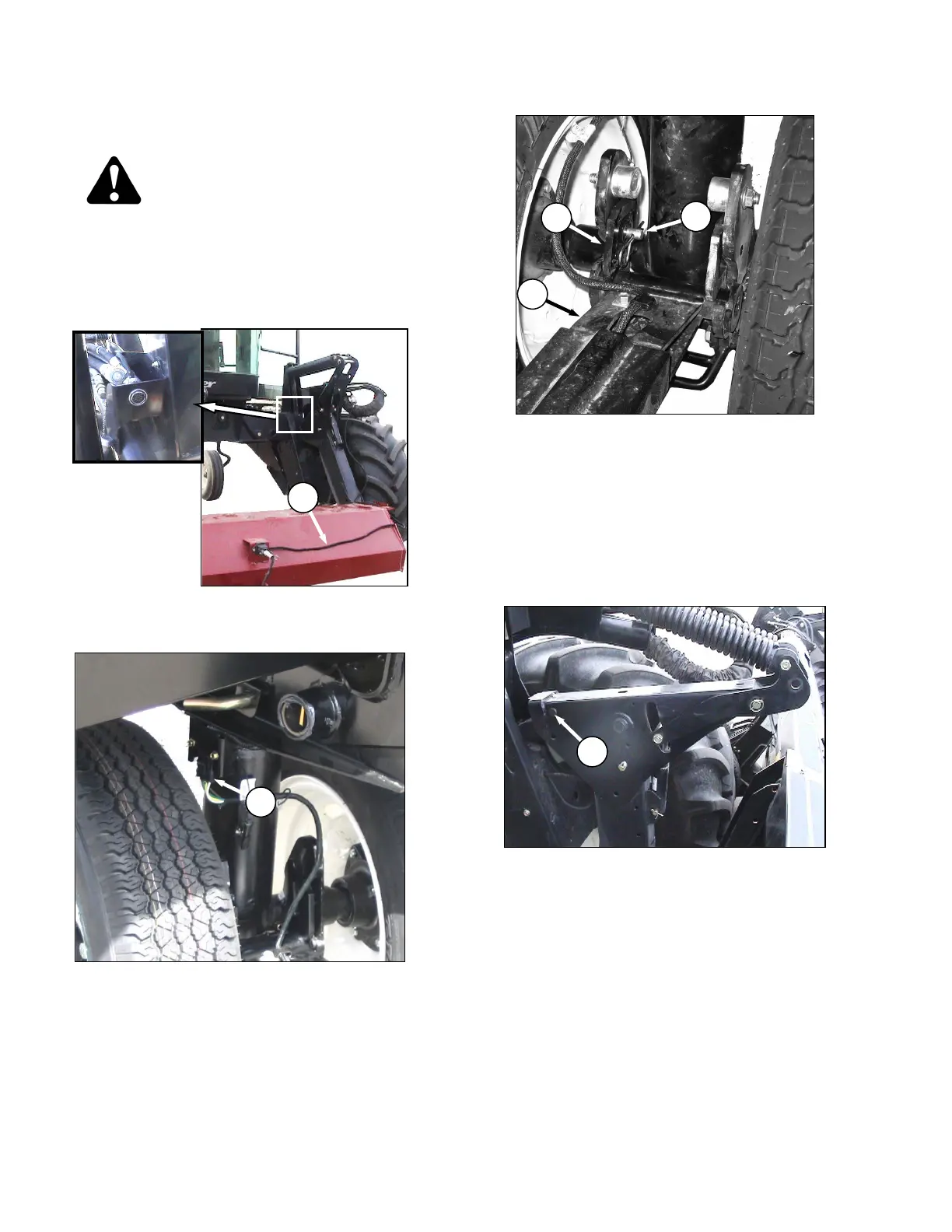

a. Shut down engine and remove key from ignition.
b. Disconnect electrical harness from windrower
and store harness (A) on weight box.
c. Disconnect wiring connector (B) at front wheel.
d. Remove clevis pin (C).
e. Push latch (D) and lift tow-bar (E) from hook.
Release latch and replace clevis pin.
f. Unhook tow-bar from weight box.
g. Start engine and lower lift arms until rear of lift
arms floats up and away from the lift arm
mechanism.
h. Stop engine and remove key from ignition.
i. Remove temporary lift pins (F) from weight box
and install pins (F) into holes at rear of lift arms.
j. Start engine and fully raise lift arms. Stop
engine and remove key from ignition.
k. Engage lift cylinder stops.
(continued next page)
