Connections

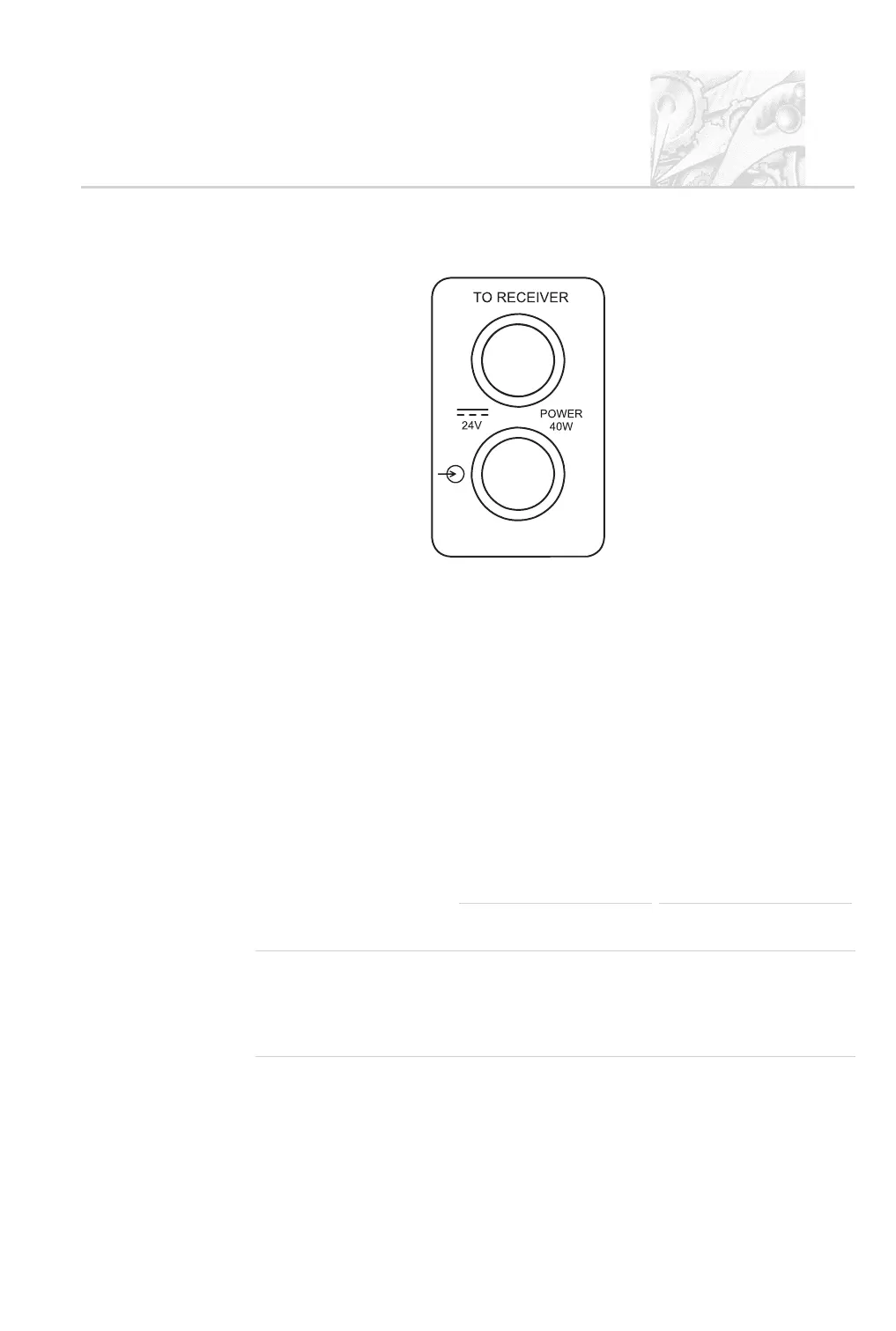

The connections on the back of the Transmitter are labelled as shown here:
These are used as follows:
.
TO RECEIVER – a LEMO cable with blue connectors is connected from
here to the socket in the Transmitter end of the X-bar. This connects to the
Receiver through the centre of the X-bar.
.
POWER 40W – plug the power input cable with the red connectors from
the PSU into this.
-
Receiver
The Receiver holds the lens assembly and photodiode detector elements. The
lens focuses the scattered light onto the detectors. The main parameters for the
two types of receiver lens are as follows. (The Specification, Appendix B, has
details):
300mm 750mm
Detectors 36 33
Nominal particle sizes:
(Dv50) 0.5 to 600µm 5 to 1600
(Dv95) 0.1 to 900µm 2 to 2000
Minimum working distance 150mm 500mm
CHAPTER 3
Spraytec Page 3.5
ILL 7425
