Manitou 200 ATJ User Manual

3 - 18

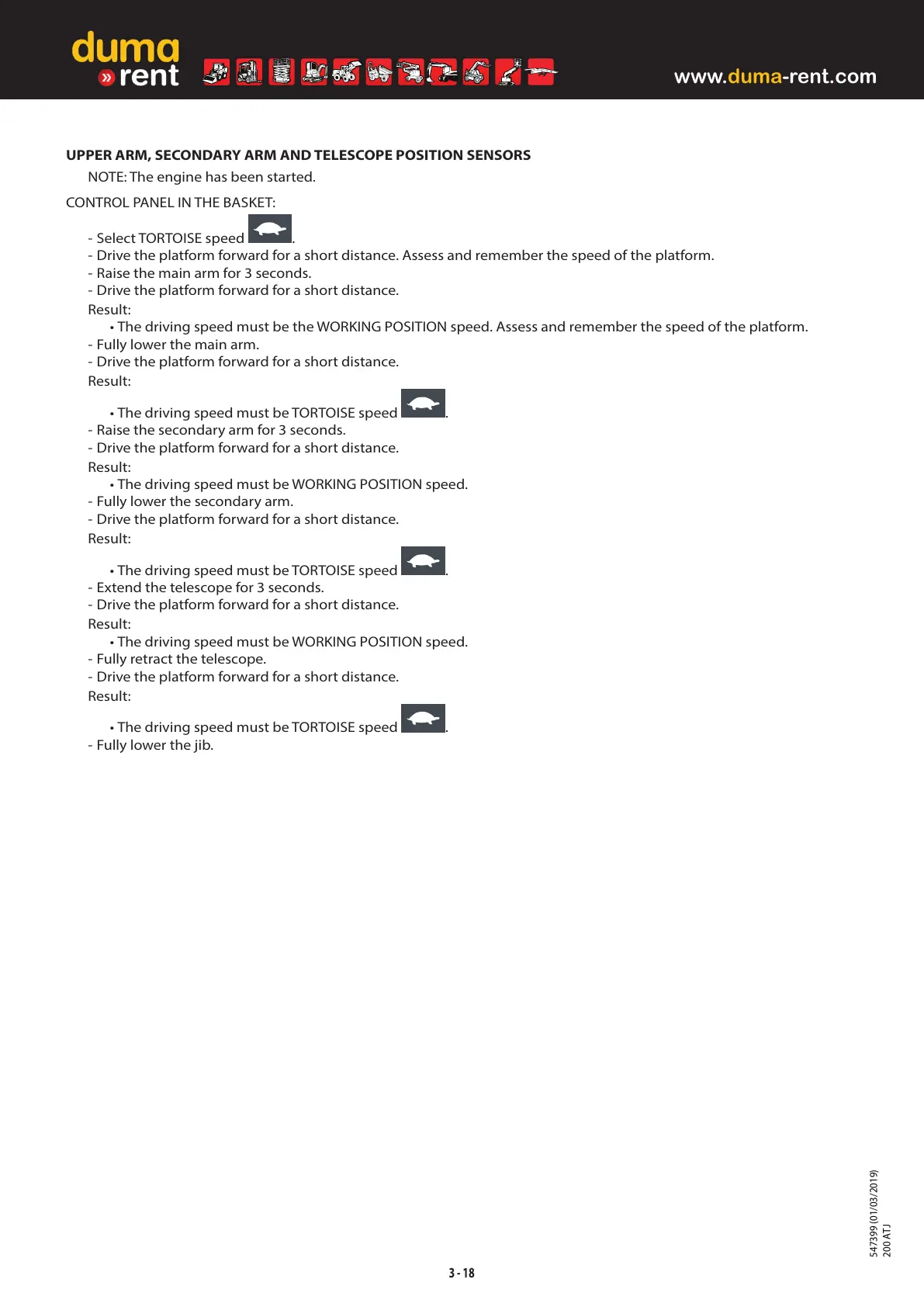

UPPER ARM, SECONDARY ARM AND TELESCOPE POSITION SENSORS
NOTE: The engine has been started.
CONTROL PANEL IN THE BASKET:
- Select TORTOISE speed
.
- Drive the platform forward for a short distance. Assess and remember the speed of the platform.
- Raise the main arm for 3 seconds.
- Drive the platform forward for a short distance.
Result:
• The driving speed must be the WORKING POSITION speed. Assess and remember the speed of the platform.
- Fully lower the main arm.
- Drive the platform forward for a short distance.
Result:
• The driving speed must be TORTOISE speed
.
- Raise the secondary arm for 3 seconds.
- Drive the platform forward for a short distance.
Result:
• The driving speed must be WORKING POSITION speed.
- Fully lower the secondary arm.
- Drive the platform forward for a short distance.
Result:
• The driving speed must be TORTOISE speed
.
- Extend the telescope for 3 seconds.
- Drive the platform forward for a short distance.
Result:
• The driving speed must be WORKING POSITION speed.
- Fully retract the telescope.
- Drive the platform forward for a short distance.
Result:
• The driving speed must be TORTOISE speed
.
- Fully lower the jib.
547399 (01/03/2019) 200 ATJ
www.duma-rent.com

Manitou 200 ATJ Specifications

General

Lift Capacity	230 kg
Drive Speed	4.5 km/h
Gradeability	40%
Outriggers	No
Horizontal Outreach	12.1 m
Maximum Outreach	12.1 m
Steering	4-wheel
