Manitou 200 ATJ User Manual

2 - 35
19
20
21
#2
#1
21

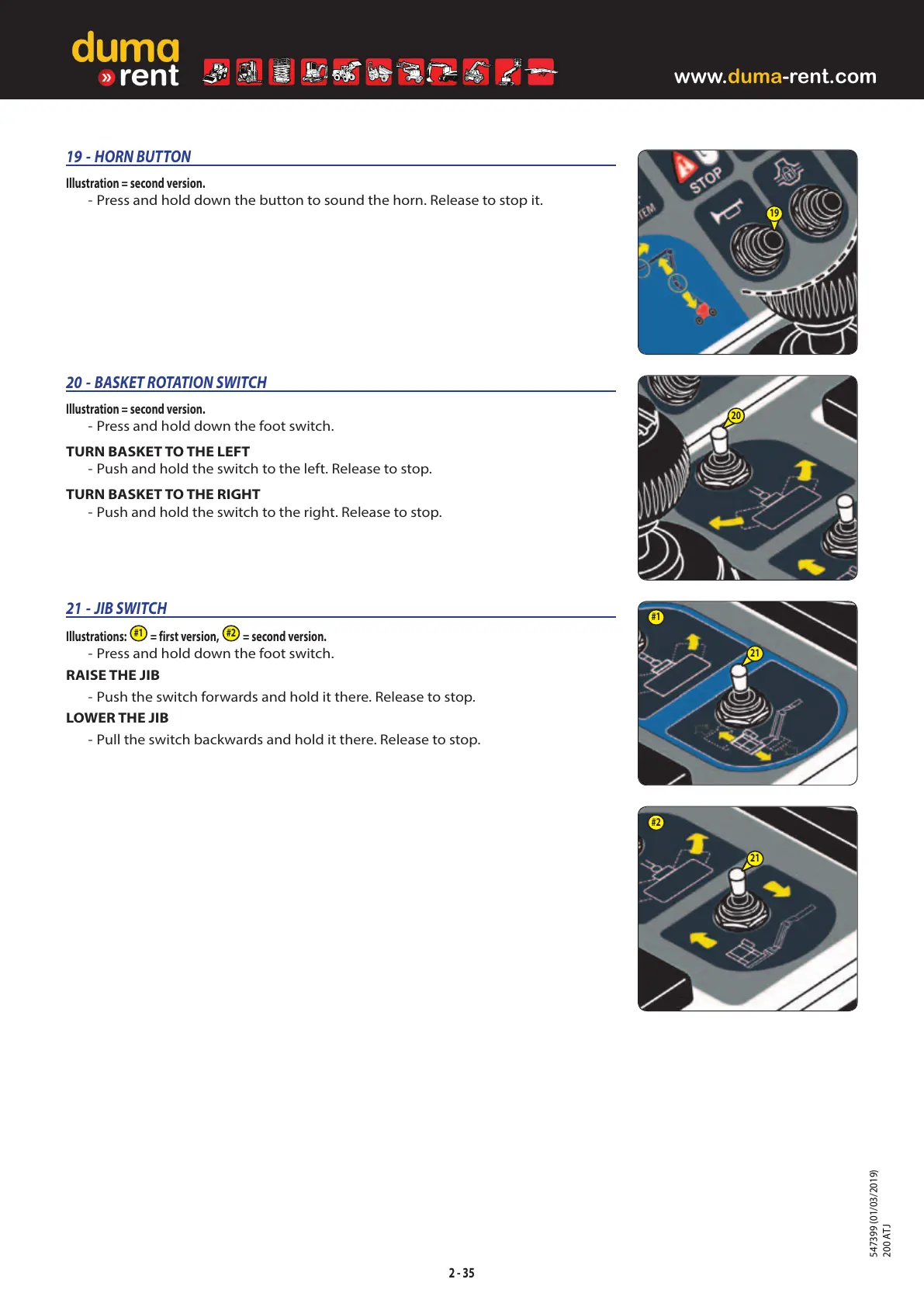

19 - HORN BUTTON
Illustration = second version.
- Press and hold down the button to sound the horn. Release to stop it.
20 - BASKET ROTATION SWITCH
Illustration = second version.
- Press and hold down the foot switch.
TURN BASKET TO THE LEFT
- Push and hold the switch to the left. Release to stop.
TURN BASKET TO THE RIGHT
- Push and hold the switch to the right. Release to stop.
21 - JIB SWITCH
Illustrations:
#1
= first version,
#2
= second version.
- Press and hold down the foot switch.
RAISE THE JIB
- Push the switch forwards and hold it there. Release to stop.
LOWER THE JIB
- Pull the switch backwards and hold it there. Release to stop.
547399 (01/03/2019) 200 ATJ
www.duma-rent.com

Manitou 200 ATJ Specifications

General

Lift Capacity	230 kg
Drive Speed	4.5 km/h
Gradeability	40%
Outriggers	No
Horizontal Outreach	12.1 m
Maximum Outreach	12.1 m
Steering	4-wheel
