Manitou 200 ATJ - Basket Tilt Switch; Main Arm and Turntable Control Handle

2 - 36
22
#1
22
#2
23

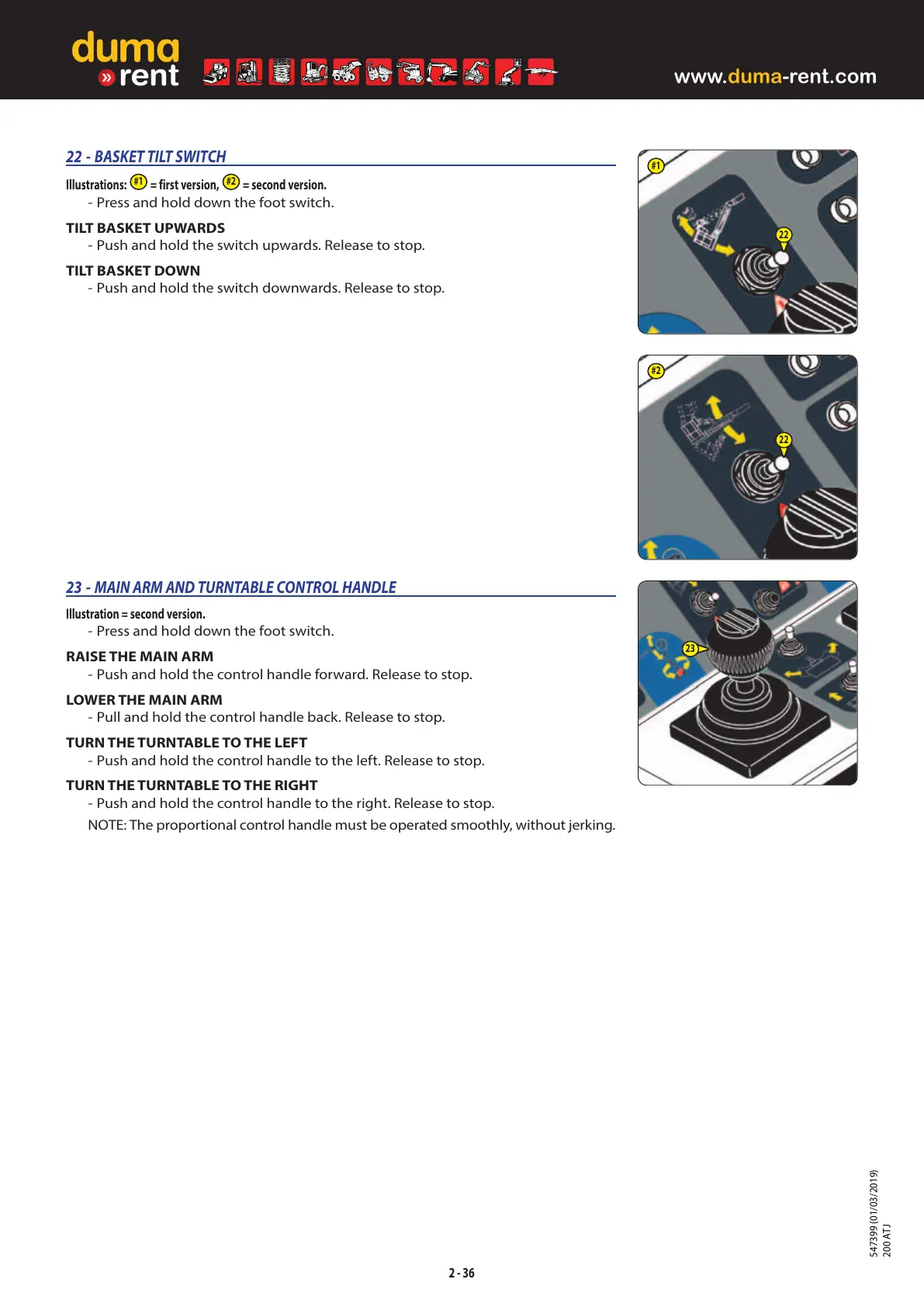

22 - BASKET TILT SWITCH
Illustrations:
#1
= first version,
#2
= second version.
- Press and hold down the foot switch.
TILT BASKET UPWARDS
- Push and hold the switch upwards. Release to stop.
TILT BASKET DOWN
- Push and hold the switch downwards. Release to stop.
23 - MAIN ARM AND TURNTABLE CONTROL HANDLE
Illustration = second version.
- Press and hold down the foot switch.
RAISE THE MAIN ARM
- Push and hold the control handle forward. Release to stop.
LOWER THE MAIN ARM
- Pull and hold the control handle back. Release to stop.
TURN THE TURNTABLE TO THE LEFT
- Push and hold the control handle to the left. Release to stop.
TURN THE TURNTABLE TO THE RIGHT
- Push and hold the control handle to the right. Release to stop.
NOTE: The proportional control handle must be operated smoothly, without jerking.
547399 (01/03/2019) 200 ATJ
