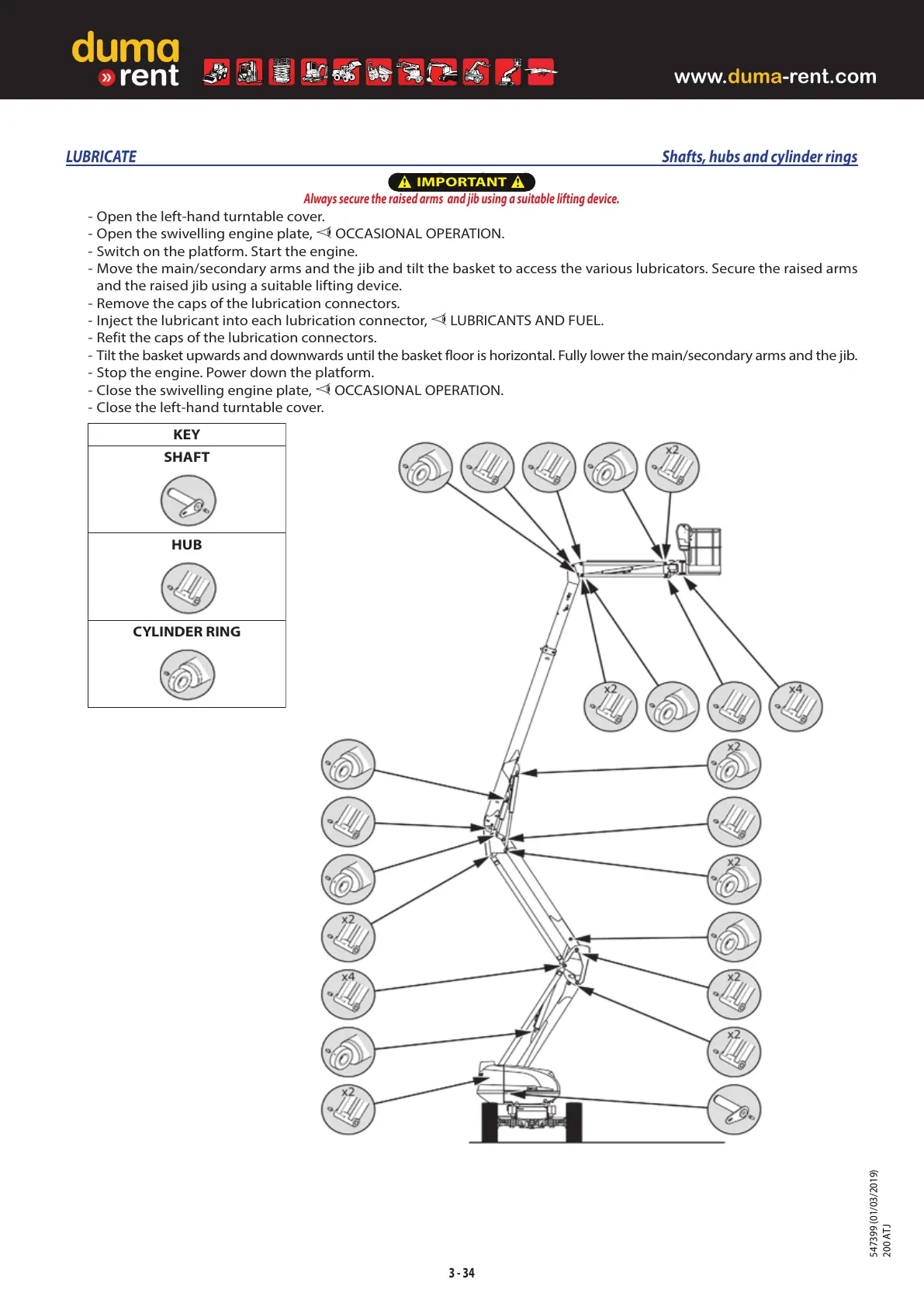

Manitou 200 ATJ - Shafts, Hubs and Cylinder Rings

3 - 34
LUBRICATE Shafts, hubs and cylinder rings

IMPORTANT

Always secure the raised arms and jib using a suitable lifting device.
- Open the left-hand turntable cover.
- Open the swivelling engine plate,
OCCASIONAL OPERATION.
- Switch on the platform. Start the engine.
- Move the main/secondary arms and the jib and tilt the basket to access the various lubricators. Secure the raised arms
and the raised jib using a suitable lifting device.
- Remove the caps of the lubrication connectors.
- Inject the lubricant into each lubrication connector, LUBRICANTS AND FUEL.
- Refit the caps of the lubrication connectors.
- Tilt the basket upwards and downwards until the basket floor is horizontal. Fully lower the main/secondary arms and the jib.
- Stop the engine. Power down the platform.
- Close the swivelling engine plate, OCCASIONAL OPERATION.
- Close the left-hand turntable cover.
KEY
SHAFT
HUB
CYLINDER RING
547399 (01/03/2019) 200 ATJ
