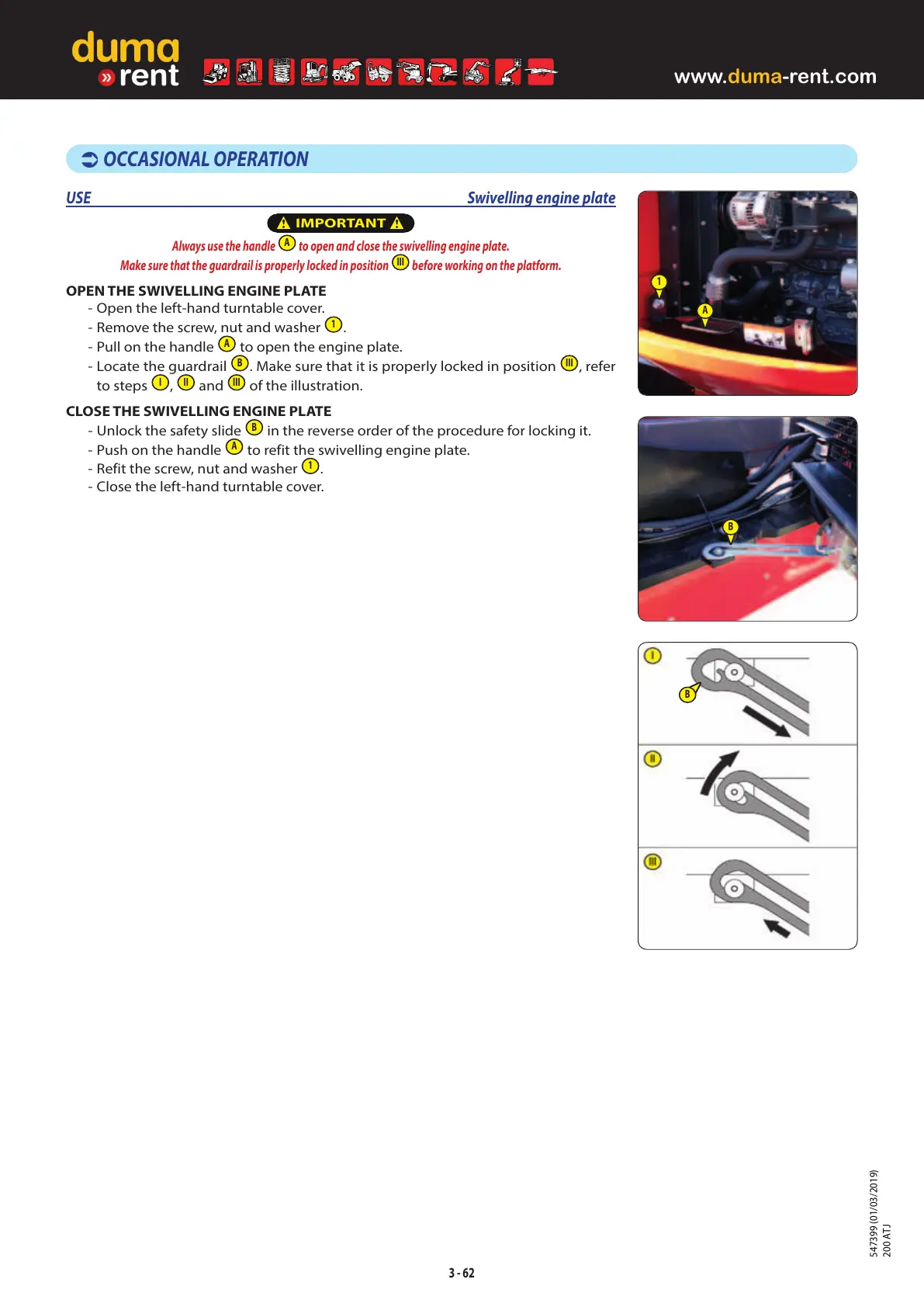

Manitou 200 ATJ - Swivelling Engine Plate

3 - 62
B
B
1
A
Â
OCCASIONAL OPERATION
USE Swivelling engine plate

IMPORTANT

Always use the handle
A
to open and close the swivelling engine plate.
Make sure that the guardrail is properly locked in position
III
before working on the platform.
OPEN THE SWIVELLING ENGINE PLATE
- Open the left-hand turntable cover.
- Remove the screw, nut and washer
1
.
- Pull on the handle
A
to open the engine plate.
- Locate the guardrail
B
. Make sure that it is properly locked in position
III
, refer
to steps
I
,
II
and
III
of the illustration.
CLOSE THE SWIVELLING ENGINE PLATE
- Unlock the safety slide
B
in the reverse order of the procedure for locking it.
- Push on the handle
A
to refit the swivelling engine plate.
- Refit the screw, nut and washer
1
.
- Close the left-hand turntable cover.
547399 (01/03/2019) 200 ATJ
