2 - 42
33
#2
33
#1
MINOR FAULTS HORN
The pedal switch or control selection switch on the
ground/ in the basket is blocked
1 beep
Stop using the platform.
The driving/steering control handle trigger is
locked
The sensitive edge or the reset button is blocked
(OPTION: "SAFEMANSYSTEM")
3 beeps repeated every
8 seconds
Other minor faults Stop
MAJOR FAULTS HORN
CAN Communication Stop All the controls are locked
Low engine oil pressure
Sounds intermittently
Stop the engine immediately.
NOTE: The engine stops after 90 seconds.
High coolant temperature
Engine overspeed Stop The engine stops after 2 seconds.
Hydrostatic pump Stop The driving functions are locked.
Proportional distributor
Sounds intermittently Stop using the platform.
Overload sensor inconsistency
Oscillating axle locked (1)
Engine oil pressure sensor
Fuel level very low (level 3)
LOW FUEL LEVEL ALARM LIGHT
(1): The LEVELLING/OSCILLATION ALARM LIGHT flashes at the same time.
From machine no. 949267:
IMPORTANT
Refer to the maintenance personnel if there is a fault.
The indicator light flashes when a fault is detected:
- Minor fault: on = 0.6 seconds, off = 0.4 seconds.
- Major fault: on = 0.3 seconds, off = 0.2 seconds.

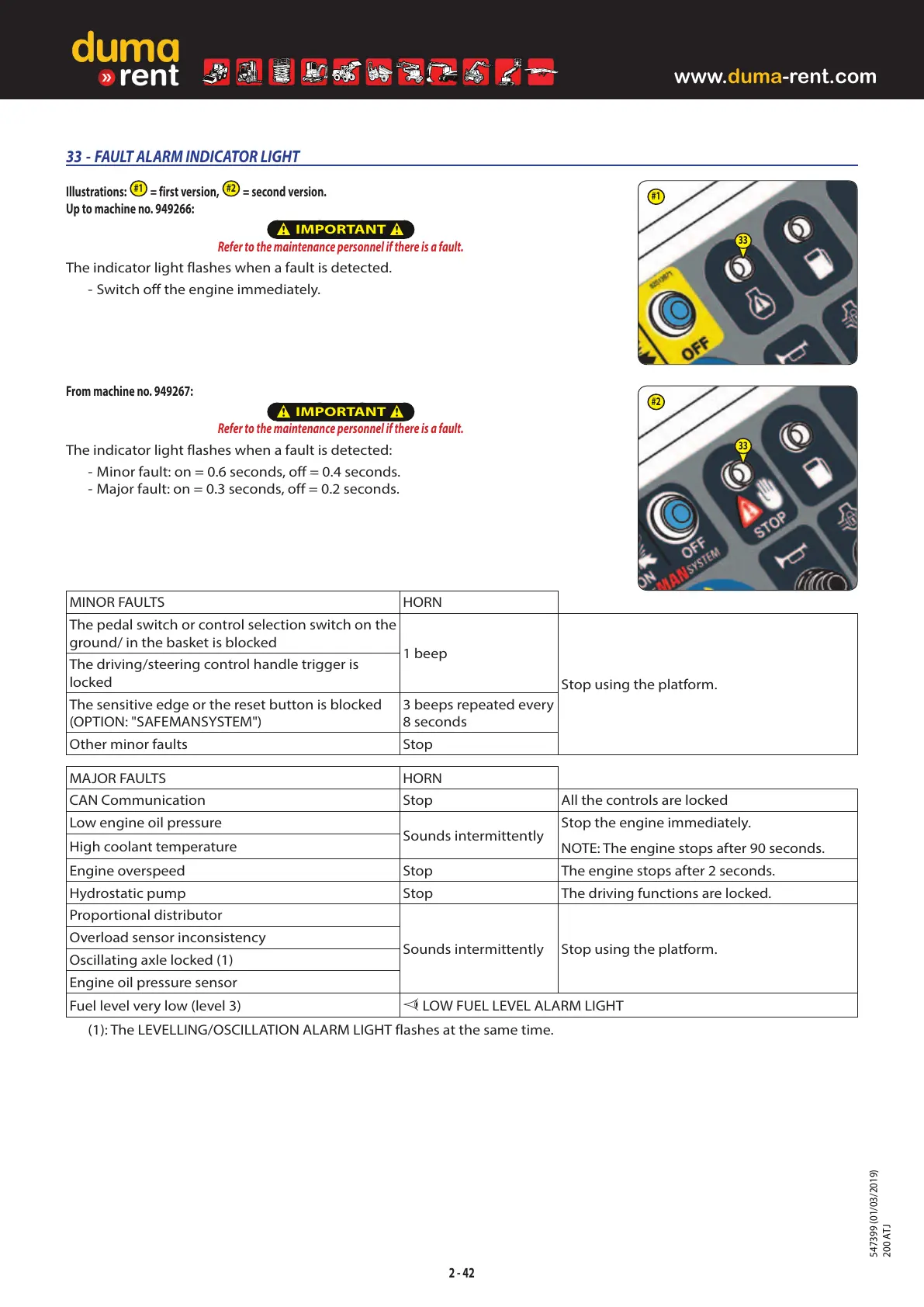

33 - FAULT ALARM INDICATOR LIGHT
Illustrations:
#1
= first version,
#2
= second version.
Up to machine no. 949266:
IMPORTANT
Refer to the maintenance personnel if there is a fault.
The indicator light flashes when a fault is detected.
- Switch off the engine immediately.
